DRI-STEEM XT Series Electrode Steam Humidifier Installation, Operation, and Maintenance Manual • Page 3

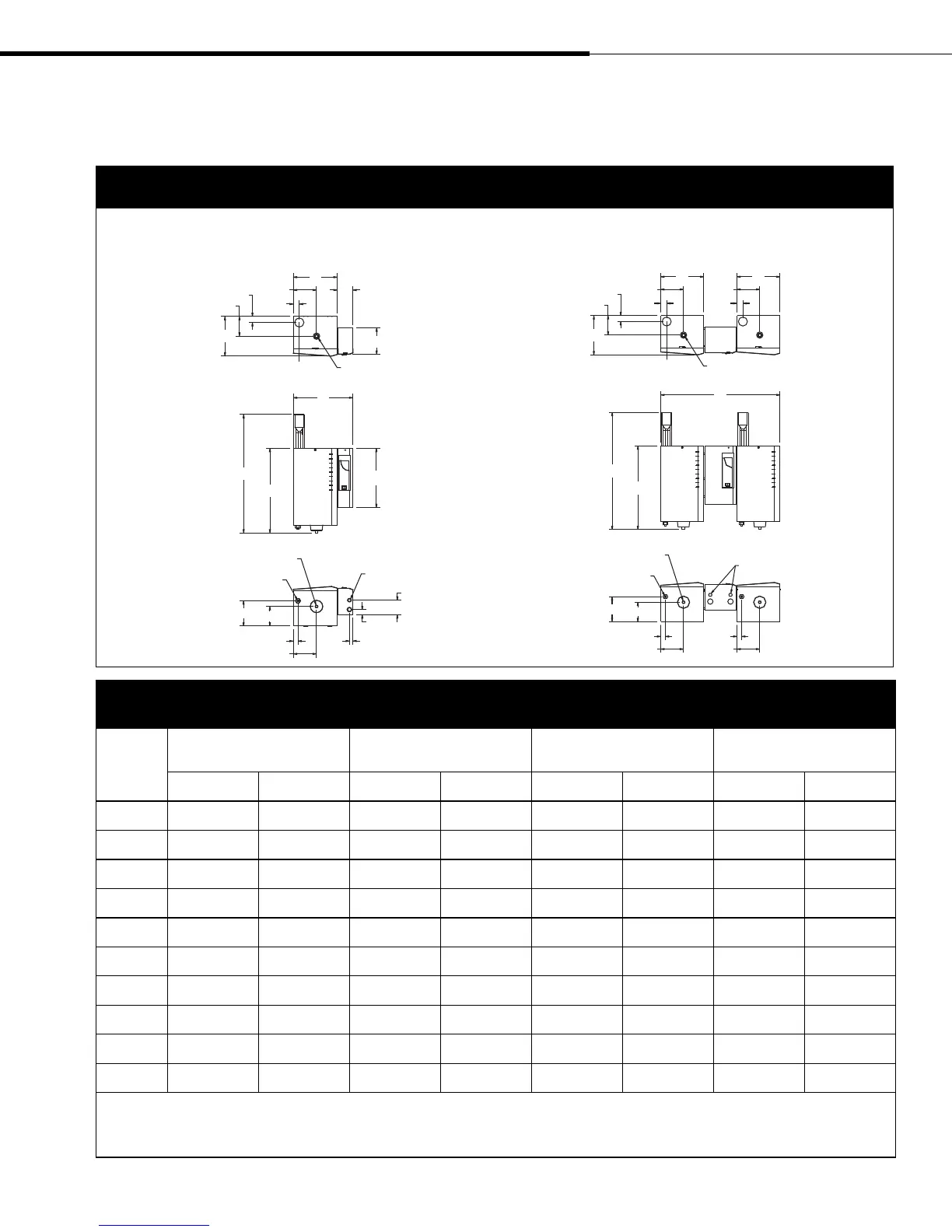

Installation: Dimensions
Figure 3-1:
Dimensions
OM-7374
Front view
Top view
Bottom view
F
4.5"
C
D
E
A
Dispersion outlet
7.8"
1.8"
1.8"
B
17.4"
Water fill line connection
Drain
Electrical knockouts
4.3"
1.5"
1"
G
1.4"
H
J
K*
Table 3-1:
Dimensions by model number
Callout
XT-10
XT-20**
XT-30
XT-50
XT-75
XT-100
XT-150
XT-200
inches mm inches mm inches mm inches mm
A 14.5 368 17.4 442 18.9 480 38.9 988
B 22.9 581 24.9 632 26.9 683 26.9 683
C 8.4 213 11.7 297 14.3 363 14.3 363
D 10.0 254 12.8 325 14.4 366 14.4 366
E 5.5 140 6.9 175 7.3 185 7.3 185
F 4.0 102 5.8 147 6.8 173 6.8 173
G 5.5 140 6.9 175 7.3 185 7.3 185
H 4.0 102 5.8 147 6.8 173 6.8 173
J 4.0 102 7.5 191 8.8 224 8.8 224
K 32.9 836 34.9 886 36.9 937 36.9 937
Note:
* Dimension K includes 10" (254 mm) for a fill cup extension. A fill cup extension is a required component when the humidifier is connected to a Rapid-sorb or Ultra-sorb dispersion
assembly or when the maximum developed length of piping/hose from humidifier to dispersion assembly/blower is more than 20' (6 m).
** XT-20 models using 208V single-phase power or 240V single-phase power have dimensions equal to Models XT-30 and XT-50.
D
E
Dispersion outlet
1.8"
D
E
1.8"
1.8"
F
C
A
K*
B
J
H
G
G
1.4" 1.4"
Electrical knockouts
Drain
Water fill line
connection
Front view
Top view
Bottom view
Models XT-10, XT-20, XT-30, XT-50, XT-75, XT-100 Models XT-150, XT-200
OM-7419
