Mounting the humidifier
WARNING!
Mount humidifier per the instructions in this
manual and to a structurally stable surface.
Improper mounting of humidifier may cause
the humidifier to fall off the wall resulting in
severe personal injury or death.

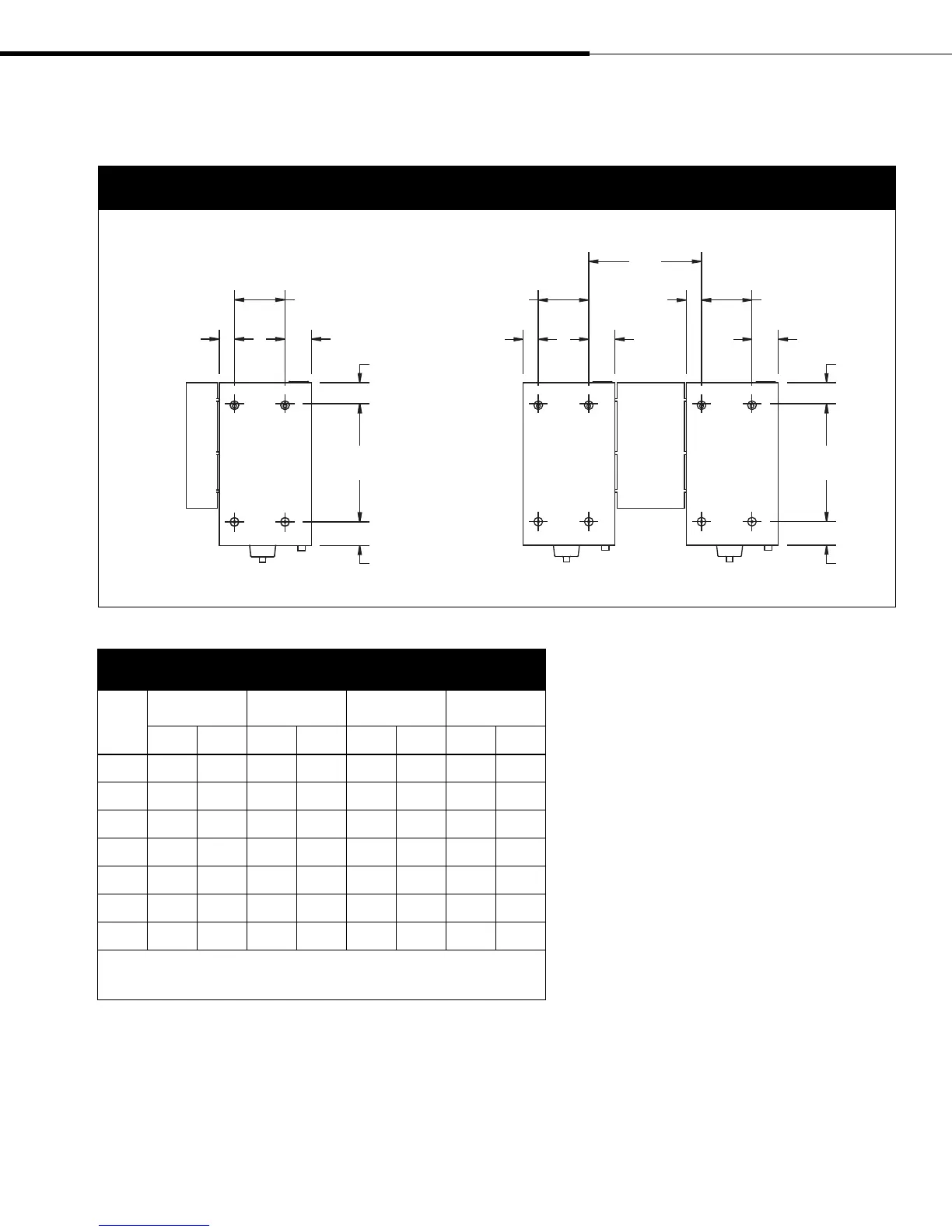

Figure 5-1:
Mounting keyhole locations by model number
Table 5-1:
Mounting dimensions
XT-10
XT-20*
XT-30
XT-50
XT-75
XT-100
XT-150
XT-200
inches mm inches mm inches mm inches mm
A 3.9 99 7.1 180 7.5 191 7.5 191
B 14 356 16.3 414 19.1 485 19.1 485
C 3.1 79 3.6 91 3.4 86 3.4 86
D 3 76 2.1 53 3.4 86 3.4 86
E 2.8 71 3 76 2.8 71 2.8 71
F 3.8 97 3.2 81 2.6 66 2.6 66
G — — — — — — 17.1 434
Note:
* XT-20 models using 208V single-phase power or 240V single-phase power have
dimensions equal to Models XT-30 and XT-50.
OM-7360
A
B
C
D
E
F
A
B
C
D
E
F
C
A
D
G
Models XT-10, XT-20, XT-30, XT-50, XT-75, XT-100 Models XT-150, XT-200
OM-7420
