Page 38 • DRI-STEEM XT Series Electrode Steam Humidifier Installation, Operation, and Maintenance Manual
Dispersion: XT Steam Blowers
(continued)

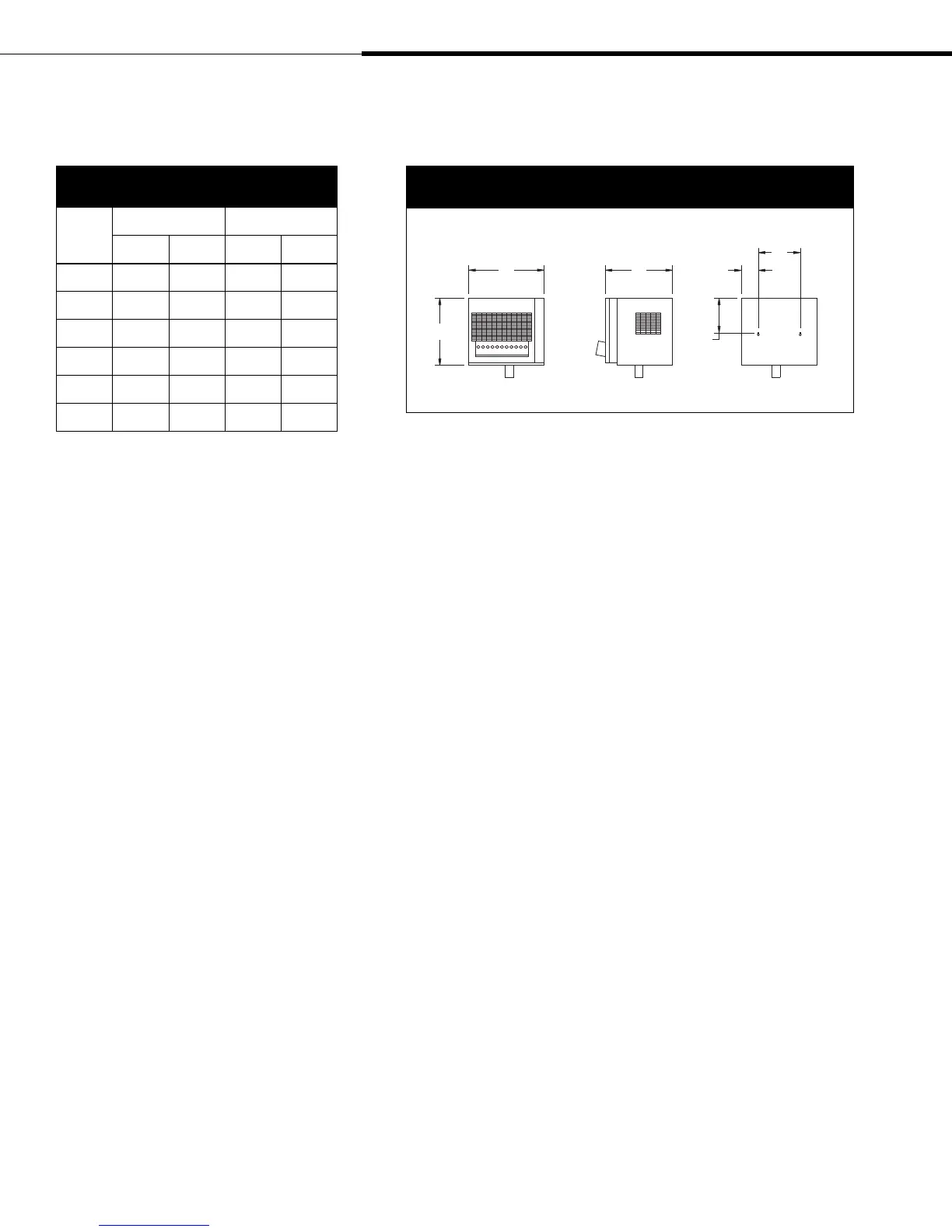

Table 38-1:
XT Steam Blower dimensions
Dimen-
sion
XTSB-20 XTSB-50
inches mm inches mm
A 10.0 254 12.75 324
B 6.0 152 11.38 289
C 8.25 210 11.63 295
D 3.0 76 2.88 73
E 3.94 100 7.06 179
F 2.0 51 5.88 149
Figure 38-1:
XT Steam Blower dimensions
Front view Side view Back view
A
B
C
F
D
E
OM-7428
Mounting the XT Steam Blower
The XT Steam Blower can be mounted directly on top of an XT
Series humidifier cabinet or remotely from the humidifier.
Installation must comply with governing codes.
Mount the steam blower so that it is plumb.
When mounting on a wood stud wall (studs 16" [406 mm] on
center), locate studs and attach spanner board so that each of the
screws centers on a stud. Mark hole locations per Table 38-1 and
predrill 1/8" (3 mm) diameter pilot holes. Secure cabinet to spanner
board with screws provided.
When mounting on a metal stud wall, locate the studs (16" [406
mm] on center) and drill a ¼" (6 mm) hole through the studs and
wall. Mount spanner board with ¼" (6 mm) bolts through the wall,
studs, and a backing plate on the backside of the wall and secure
with a nut and washer.
If 16" (406 mm) on-center studs are not available, mount spanner
boards on the wall, spanning two studs. If two horizontal boards
are used, locate one at the top of the cabinet for the mounting
screws and the other board located 3.5" (89 mm) on center from the
bottom of the cabinet.
For hollow block or poured concrete wall mounting, mark holes per
Table 38-1. Drill pilot holes sized for the supplied anchors. Secure
cabinet in place using the two supplied screws and anchors.
More on next page ▶
