Dispersion: XT Steam Blowers
(continued)

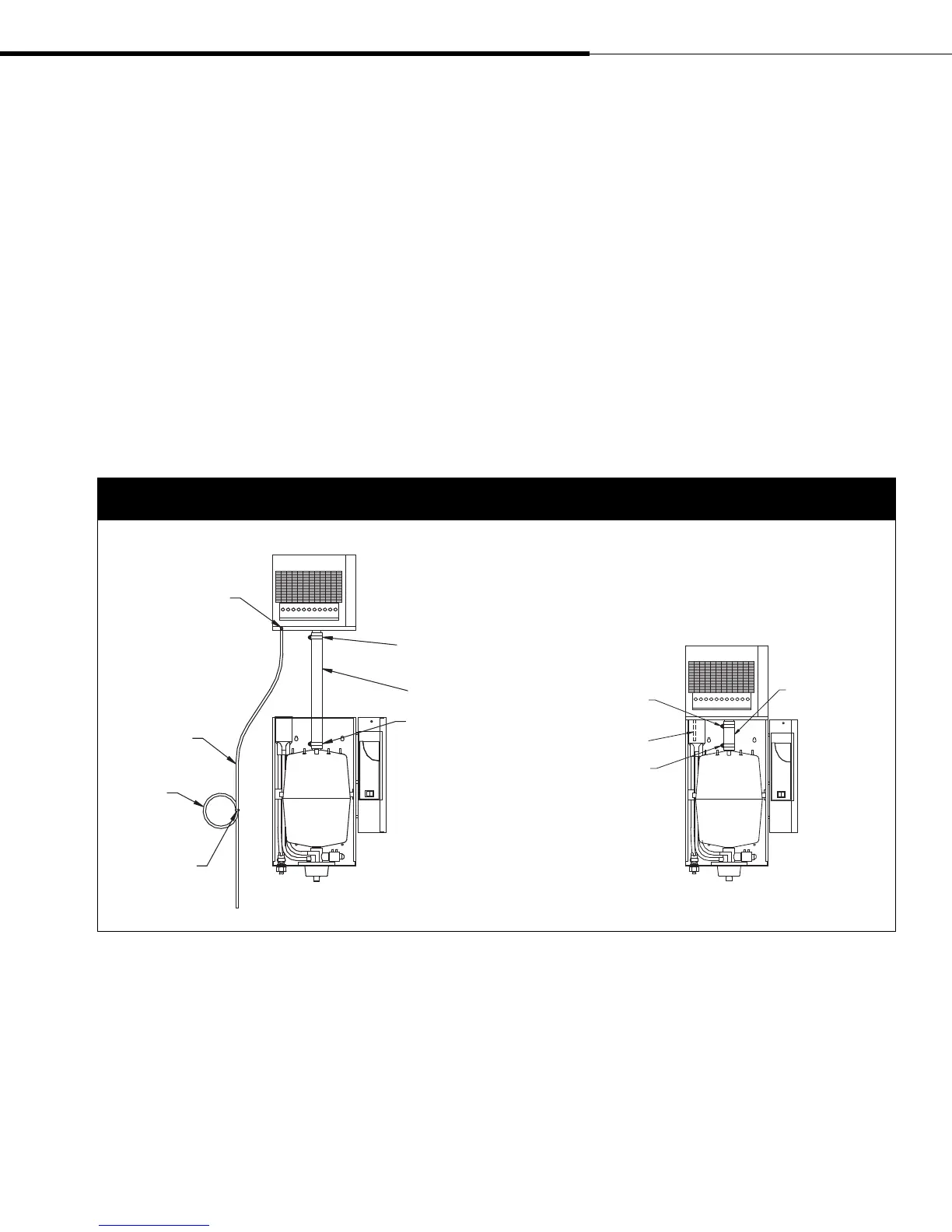

Figure 39-1:
Piping connections to XT Steam Blowers
XT Steam Blower mounted remotely
XT Steam Blower mounted directly on top of XT Humidifier
Plastic tie
Condensate hose
(purchased separately
from DRI-STEEM)
Water seal
Plastic tie
Bolt hose clamp
(supplied with steam blower)
White braided hose
(purchased separately
from DRI-STEEM)
Bolt hose clamp
(supplied with humidifier)
Bolt hose clamp
(supplied with
steam blower)
Condensate hose
(attached to steam
blower)
Bolt hose
clamp (supplied
with humidifier)
White braided hose
(supplied with
humidifier)
To open drain
OM-7427
OM-7426
To determine steam blower mounting clearance dimensions, see
Table 37-1 on Page 37 to determine minimum rise, spread, and
throw non-wetting distances for your application. Make sure
walls, ceilings, or other obstructions are not within this region, or
condensation and dripping could occur (see instructions on Page
37). Provide at least 4" (102 mm) clearance on each side of the XT
Steam Blower for air intake.
Field wiring is required to connect the XT Steam Blower fan to
the humidifier blower terminals. Refer to the external connections
diagram in the package shipped with the unit.
For mounting the XT Steam Blower remotely from the humidifier,
see the tables in this document for interconnecting piping
requirements.
