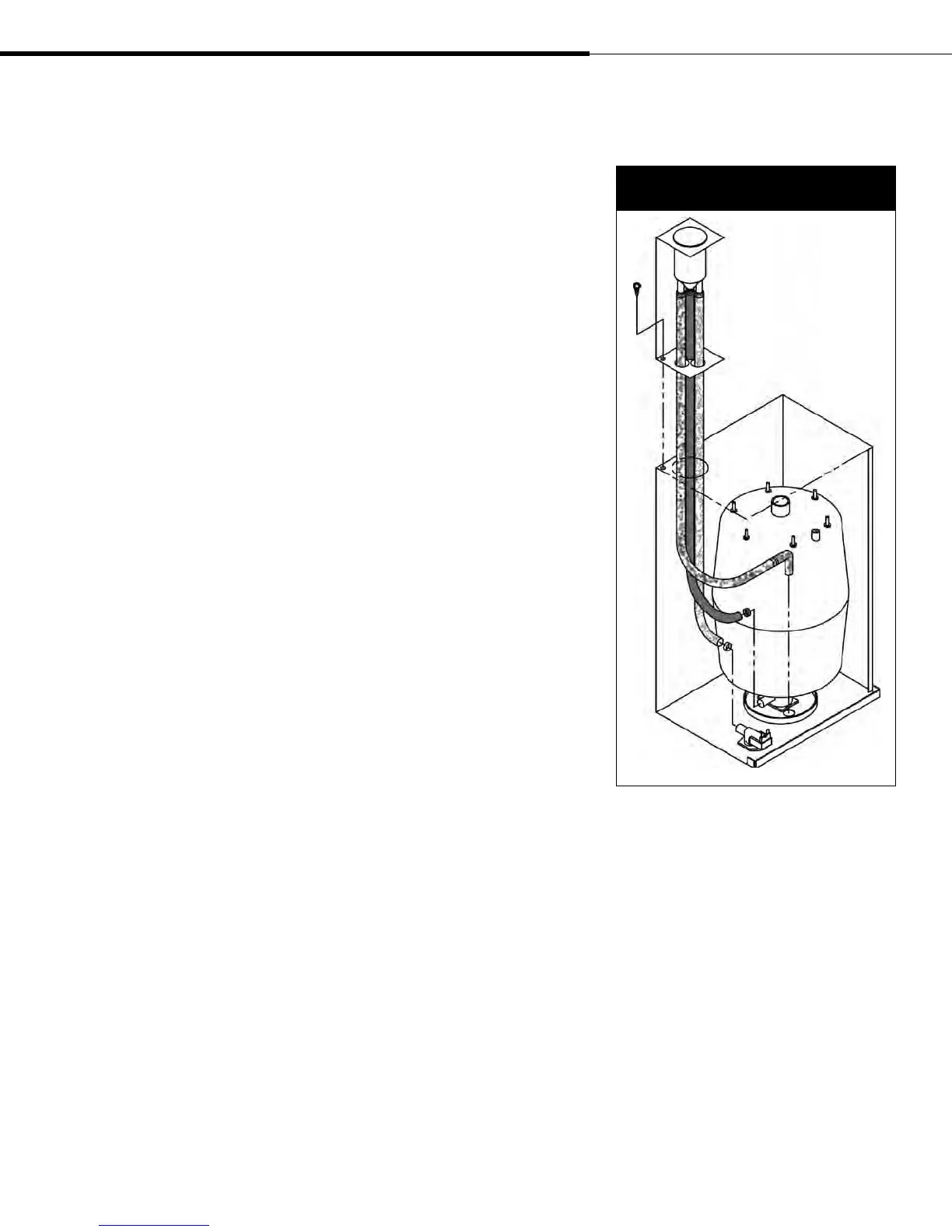

Figure 7-1:
Fill cup extension installation
Install fill cup extension kit (if applicable)
A fill cup extension kit is required with all Rapid-sorb and
Ultra-sorb dispersion assemblies or when the maximum developed
length of piping/hose from humidifier to dispersion assembly/
blower is more than 20' (6 m).
1. Remove hose clamps attached to fill cup extension bracket.
2. Remove Phillips screw near large opening on top enclosure and
retain for use in Step 4.
3. Feed tubes through left rear opening on top of steam cylinder
enclosure.
4. Mount bracket with screw from Step 2 (see Figure 7-1).
5. Slip smaller hose clamp (D18) from Step 1 over smaller diameter
hose and slide open end of hose onto fill valve body connection.
Tighten hose clamp.
6. Slip larger hose clamp (D21) from Step 1 over larger diameter
hose (the one attached to cone bottom of fill cup) and slide open
end of hose onto drain valve body connection. Tighten hose
clamp.
7. Place overflow tube with elbow into hole of drain cup plate.
Replace steam cylinder
1. Slide steam cylinder (with warning label facing toward operator)
into drain valve body while making sure side tabs engage
brackets.
2. Reconnect electrode and high water sensor connectors to steam
cylinder (refer to unit wiring diagram located in electrical
enclosure).
OM-7385
Fill cup extension installation
