DRI-STEEM XT Series Electrode Steam Humidifier Installation, Operation, and Maintenance Manual • Page 41
Dispersion: XT Steam Blowers
(continued)

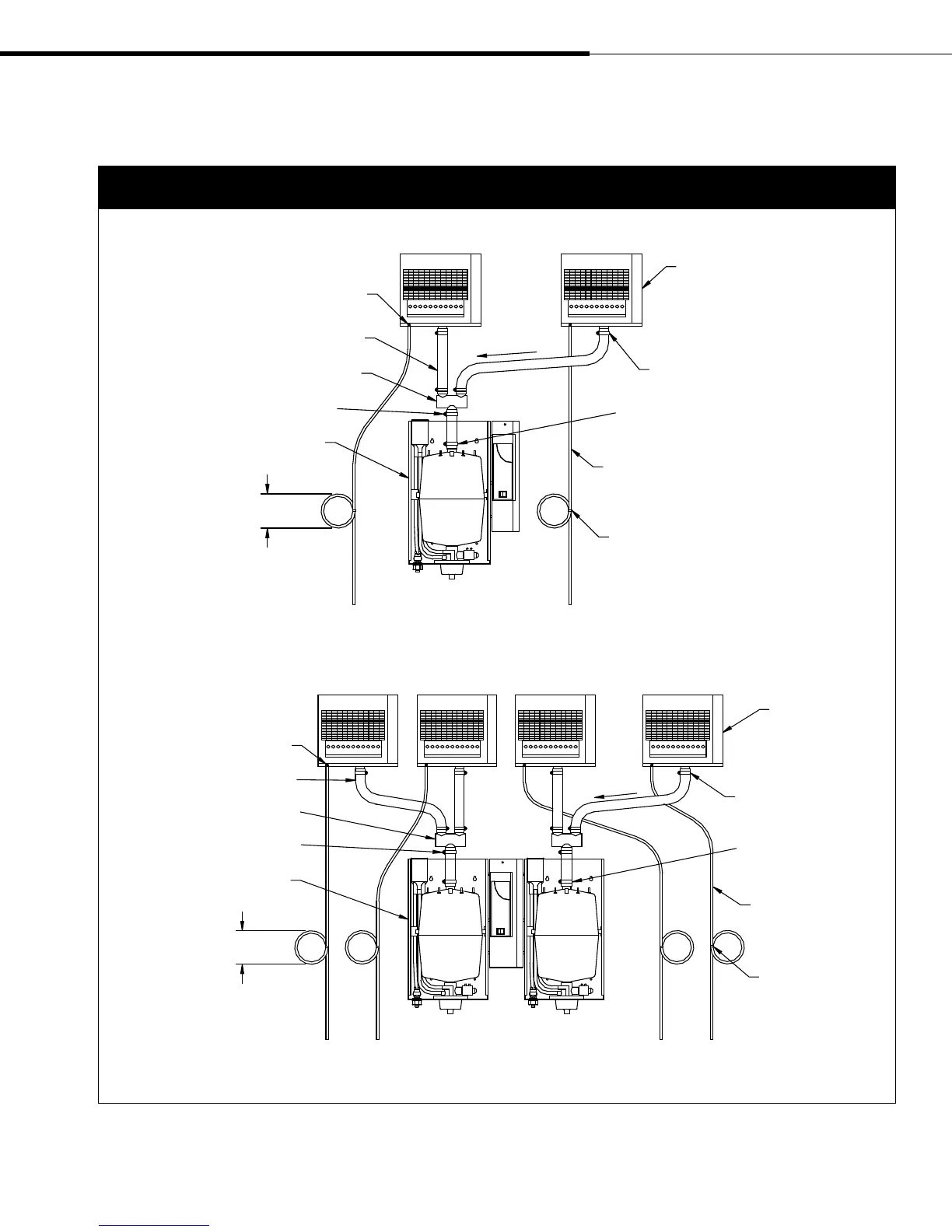

Figure 41-1:
Piping from steam cylinders to XT Steam Blowers
XT Steam Blower
Bolt hose clamp
(supplied with blower)
Bolt hose clamp
(supplied with humidifier)
Condensate hose
by DRI-STEEM
Plastic tie
To open drain
OM-7440
Plastic tie
1-3/8" O.D. steam hose
by DRI-STEEM
XT-75 Humidifier
7" (178 mm) water seal (typ.)
To open drain
Pitch 2"/ft (15%) min.
XT Steam Blower
Bolt hose clamp
(supplied with blower)
Bolt hose clamp
(supplied with humidifier)
Condensate hose
by DRI-STEEM
Plastic tie
To open drain
OM-7441
Plastic tie
1-3/8" O.D. steam hose
by DRI-STEEM
XT-150 Humidifier
7" (178 mm) water seal (typ.)
To open drain
Pitch 2"/ft
(15%) min.
To open drain
To open drain
Worm-drive
hose clamp
Adaptor (supplied
by DRI-STEEM)
Worm-drive
hose clamp
Adaptor (supplied
by DRI-STEEM)
