DRI-STEEM XT Series Electrode Steam Humidifier Installation, Operation, and Maintenance Manual • Page 27
Dispersion tube plate
Condensate drain plate
Figure 27-2:
Dispersion tube and condensate drain
escutcheon plates
Figure 27-1:

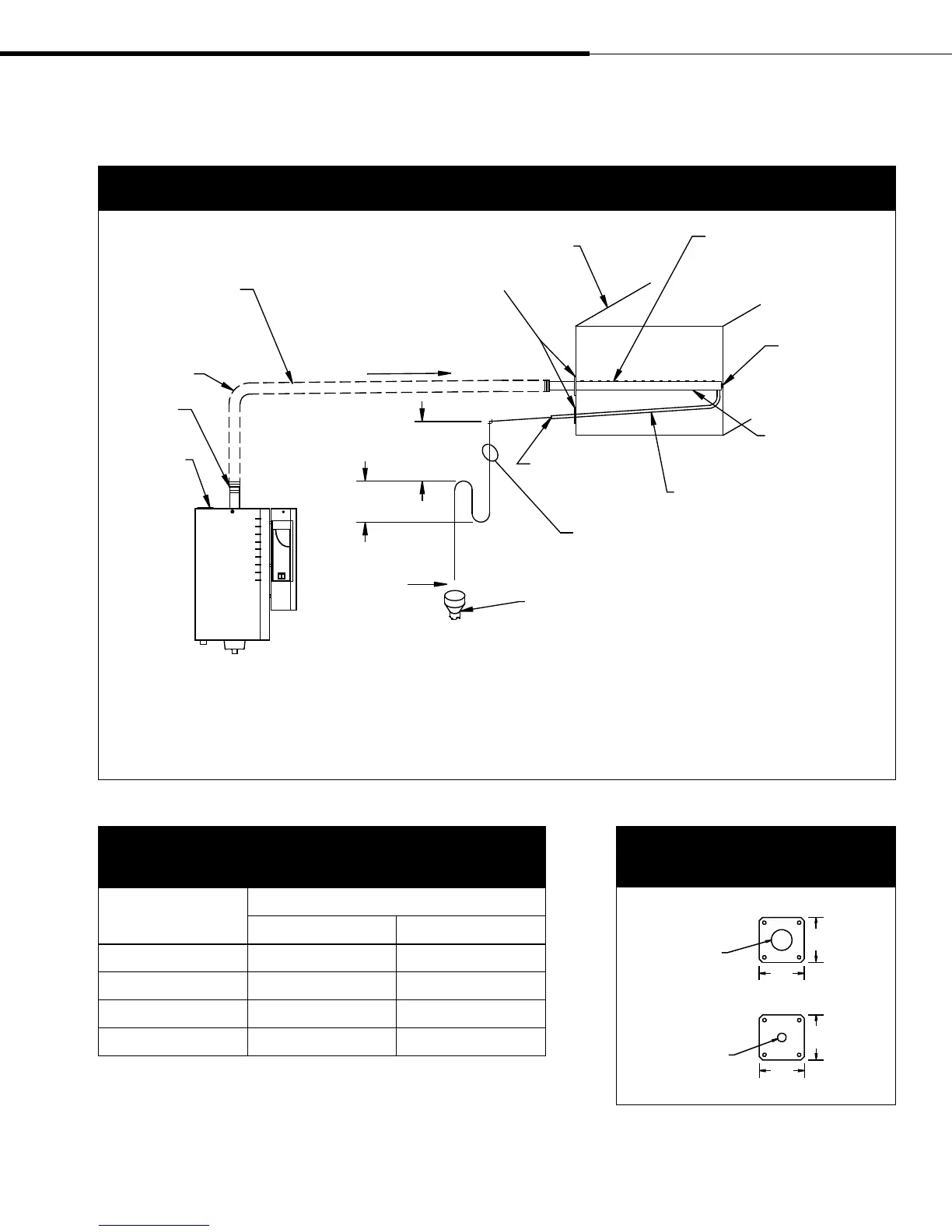

Single Tube dispersion with condensate wasted to floor drain
Notes:
1 Locate air gap only in spaces with adequate temperature and air movement to absorb flash steam; otherwise, condensation may form on nearby
surfaces. Refer to governing codes for drain pipe size and maximum discharge water temperature.
2 Pitch vapor hose, tubing or pipe toward dispersion tube:
– 2"/ft (15%) when using vapor hose
– ½"/ft (5%) when using 1½" tubing or pipe
3 Dashed lines indicate provided by installer
Dispersion: Single Tube and
Multiple Tube (continued)
OM-7366
OM-351c
Table 27-1:
Dispersion tube and condensate drain
escutcheon plate dimensions
Callout
for 1½" tube
inches mm
A 1.51 38
B 3.25 83
C 0.75 19
D 3.25 83
B
D
B
D
A
(diameter)
C
(diameter)
Vapor hose, tubing or
pipe. Insulate tubing
and hard pipe to reduce
steam loss. Do not
insulate vapor hose.
90° long sweep or
two 45° elbows
XT Series
humidifier
6" (152 mm)
recommended
Water seal
5" (127 mm)
Pitch
(see Note 2 below)
1" (25 mm)
air gap
Open drain required. See Note 1 below.
Condensate drain tube,
by installer, minimum ¾"
(DN20); must be suitable
for 212 °F (100 °C) water
½" (DN15) O.D. condensate drain
tube; pitch ¼"/ft (2%)
Pitch tube toward
drain 1/8"/ft (1%)
3/8" (M10)
mounting nut
Maximum capacity of dispersion tube:
• 1½" dia. (DN40): 56.8 lbs/hr
(25.8 kg/h)
Duct
¼" (DN8) pipe thread
Secure and seal
escutcheon plates
Adapter
