DSE DSE890 - Usb Host Connector; Rs232 Connector; Null Modem Cable Wiring

Specifications
Page 11 of 53
057-165 ISSUE: 9.0
2.8 USB HOST CONNECTOR
This USB type A socket provides support for connection to one DSE controller.
Use USB type A to USB type B cable.
NOTE: DSE stock a USB suitable cable for this purpose. Part number 016-125.

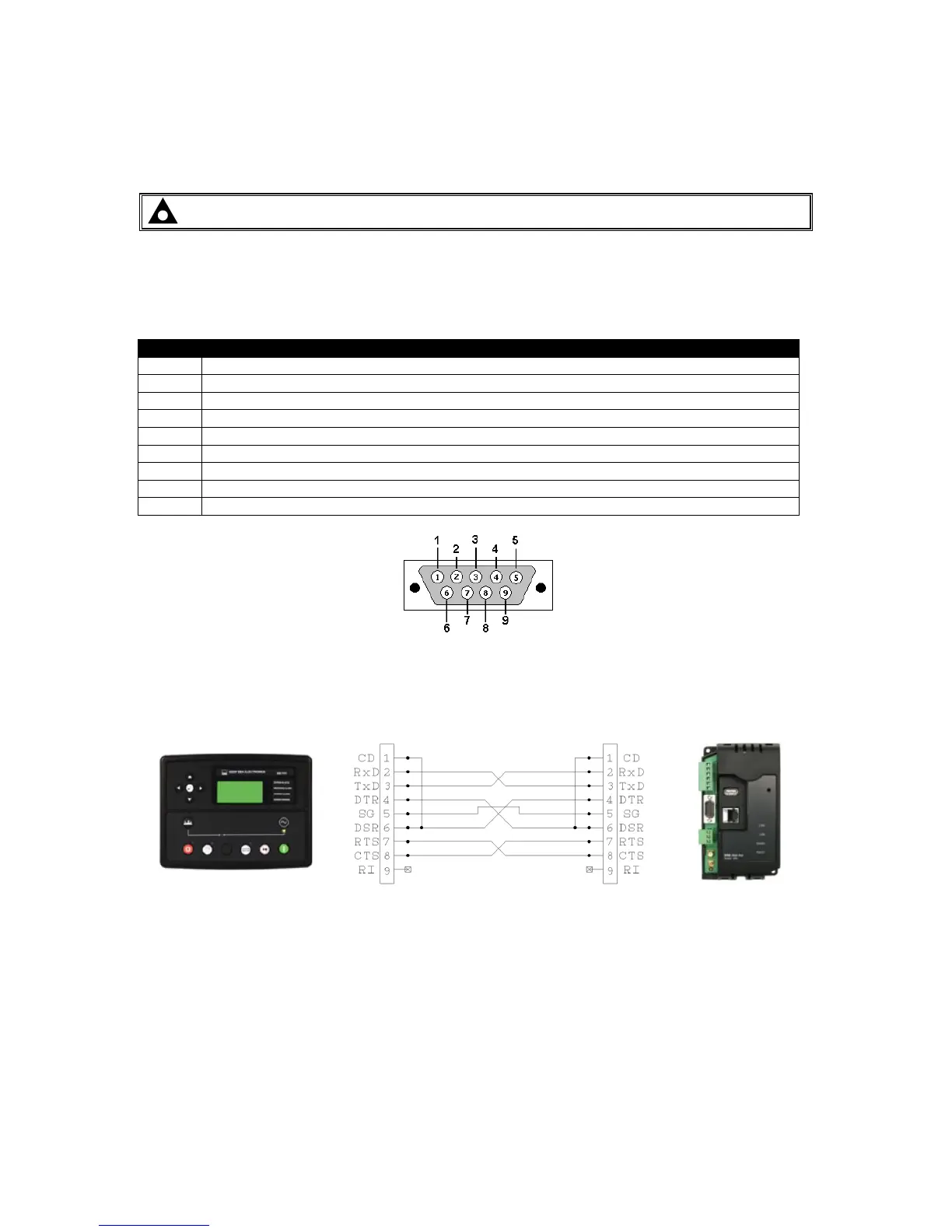

2.9 RS232 CONNECTOR
This socket provides support for connection to one DSE controller.
Pin No
Notes
1
Received Line Signal Detector (Data Carrier Detect)
2
Received Data
3
Transmit Data
4
Data Terminal Ready
5
Signal Ground
6
Data Set Ready
7
Request To Send
8
Clear To Send
9
Ring Indicator
View looking into the male connector on the module
2.9.1 NULL MODEM CABLE WIRING
DSE Controller with RS232
Null Modem Cable
DSEGateway
®
