DSE DSE890 - Location; I;O; Modbus

Setup
Page 31 of 53
057-165 ISSUE: 9.0

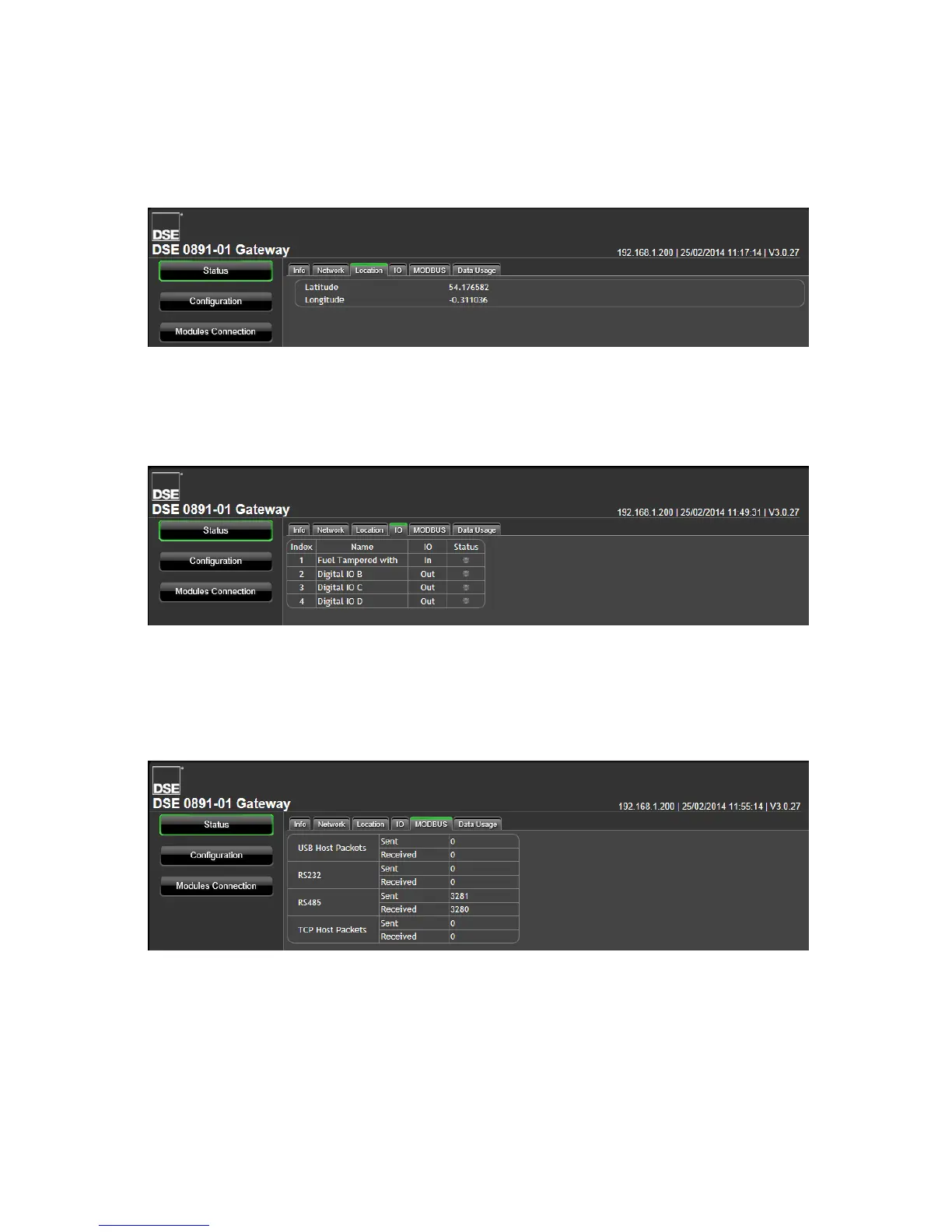

5.3.4 LOCATION
Shows the current location of the DSEGateway
®
.
For DSE890, this is either a fixed or GPS devised location, depending upon configuration.
For DSE891 this is a fixed (user configured) location.
5.3.5 I/O
Shows the state of the DSEGateway
®
I/O (Inputs/Outputs).
These are configured in the Configuration | I/O tab.
5.3.6 MODBUS
Shows the status of the data transfer between the DSEGateway
®
and the connected controller(s).
When operating correctly, the packets Received increment as the packets Sent increase.
Unconfigured ports show 0 (zero) for both Sent and Received as no communications takes place.
