Installation
057-165 ISSUE: 9.0
Page 16 of 53

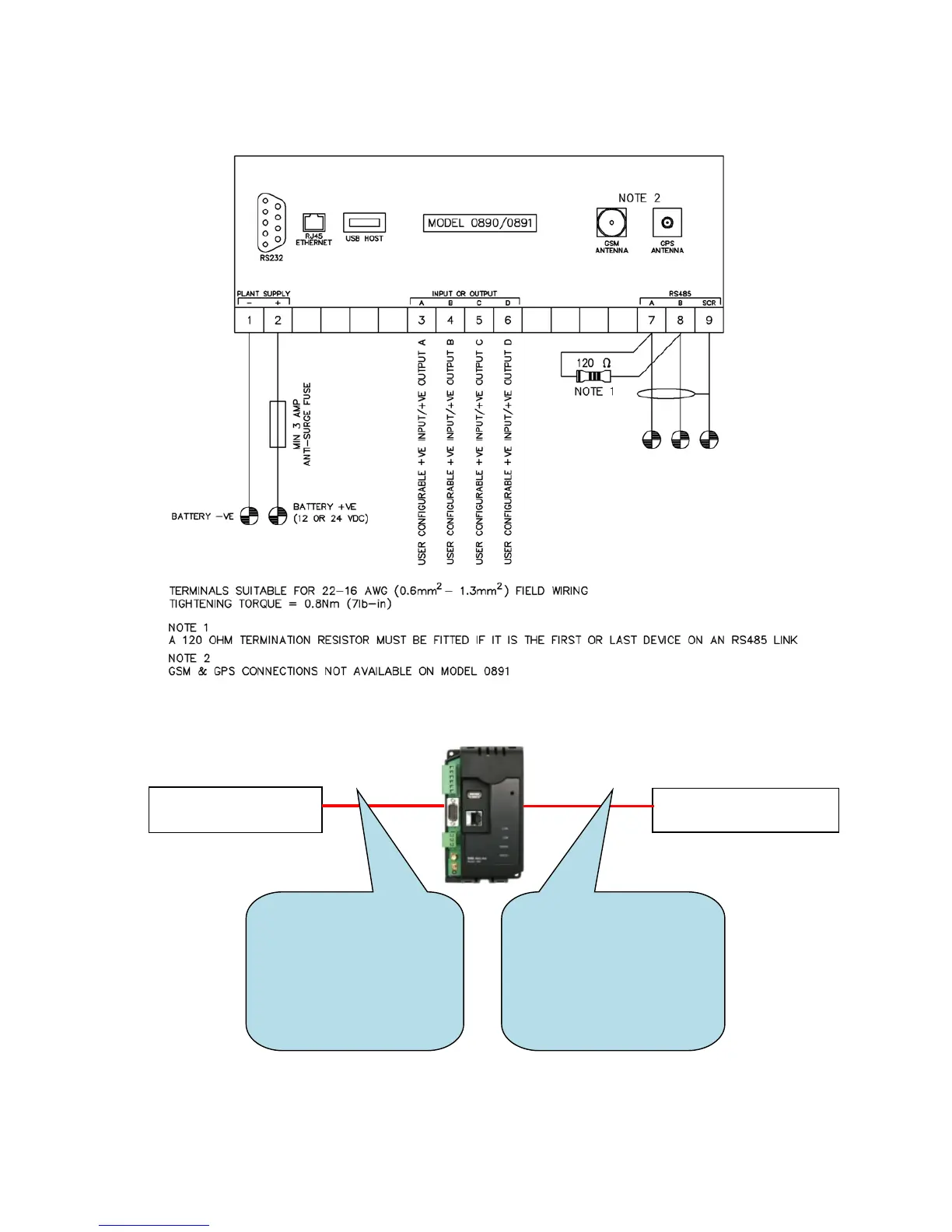

3.3 TYPICAL WIRING DIAGRAM
3.4 SYSTEM OVERVIEW
DSE
CONTROLLER(S)
DSEWEBNET SERVER
Connection to DSE
Controller(s)
USB
RS232
RS485
Ethernet
Connection to DSEWebNet
Server
Ethernet
GPRS (DSE890 only)
