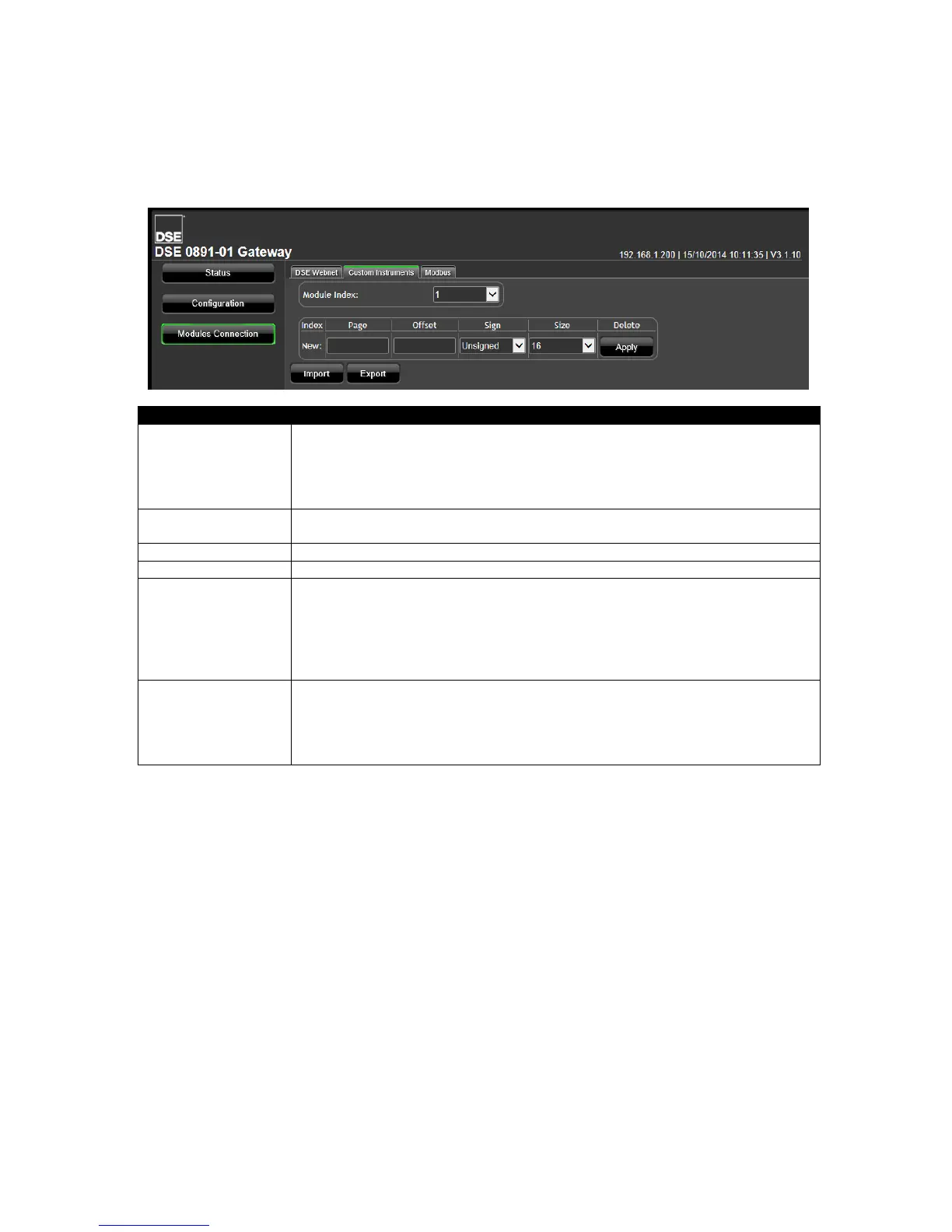

5.5.2 CUSTOM INSTRUMENTS
This section is used to provide additional instruments to the DSEWebNet
®
system.
The DSEGateway
®
is configured to read additional instruments from the connected controller(s). This
information is then available for selection and display in the DSEWebNet
®
system.
Parameter
Description
Module Index
This refers to the Index column of the DSEWebNet configuration page.
For example:
Select Module Index: 1 to add/edit the Custom Instruments for the Module
configured under Index 1 in the DSEWebNet page.
Index
Index of the Custom Instrument. This is used when selecting the Custom
Instrument for display in the DSEWebNet system.
Page
Modbus Page number to read from.
Offset
Register offset of the instrument to read.
Sign
Type of the register to read. This must match the sign of the register as
documented in the DSE Gencomm protocol document (bits/sign column).
Signed: The register is a signed value (register contains negative and positive
values).
Unsigned: The resister is unsigned (register contains positive values only).
Size
The size of the instrument value (in bits). This must match the bits of the
register as documented in the DSE Gencomm protocol document (bits/sign
column).
16: The instrument is contained within a single register (16 bits).
32: The instrument is contained within two registers (32 bits).
Example overleaf.
