2.4 TERMINAL SPECIFICATION
Connection Type
Screw terminal, rising clamp, no internal spring
Min Cable Size
0.5 mm² (AWG 20)
Max Cable Size
2.5 mm² (AWG 14)
2.5 SIM CARD CONNECTOR
NOTE: GSM / GPRS service is not available with DSE891 Ethernet Gateway.
Provided to allow the DSE890 3G Gateway to be connected to a GPRS (internet over GSM) network.
3G or 2G SIM cards are supported. (Optional for use with GPRS support).

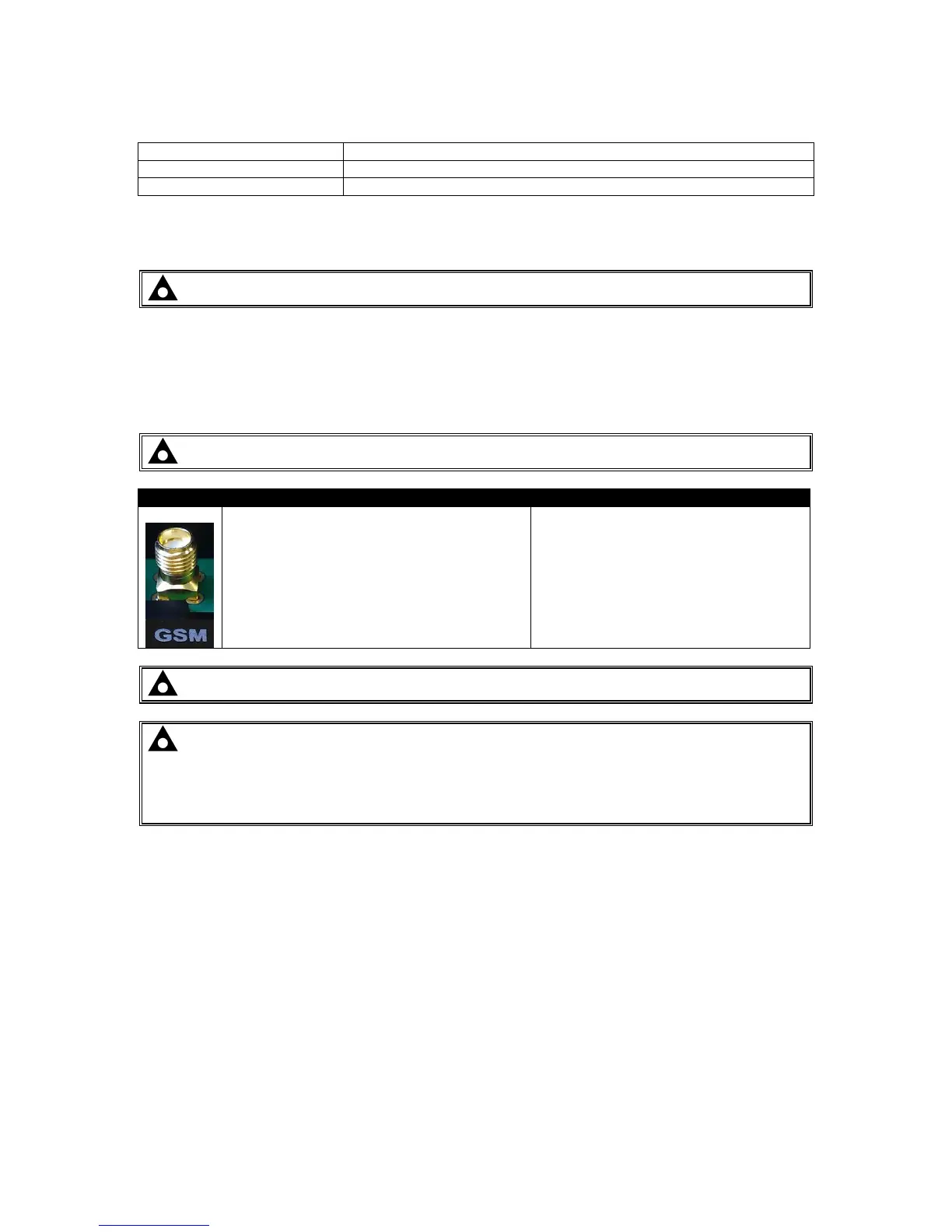

2.6 GSM CONNECTOR
NOTE: GSM / GPRS service is not available with DSE891 Ethernet Gateway.
DSE890 GSM Connector
Required Antenna Cable Connector
GSM
SMA FEMALE
(Outside thread, female central receptacle)
SMA MALE
(Inside thread, male central pin)
NOTE: DSE stock a GSM antenna suitable for this purpose. Part number 020-141.
NOTE: DSE stock a Combined GSM/GPS antenna suitable for this purpose.
Part number 020-150.
DSE testing has shown that separate GSM and GPS antennae tend to give better results than a
combined antenna where a clear view of the sky is not available.
