Disconnect the connector (6).
Release the clip (7).
The bulb (8) has a bayonet joint: press and twist
counter clockwise to remove it. Remove the bulb,
then fit the new one by pressing and turning
clockwise until it clicks into its seat.
Note
Be careful to hold the new bulb at the base
only. Never touch the transparent body with your
fingers or it will blacken resulting in reduced bulb
brilliancy.
To reassemble, refit any previously removed
following the removal procedure in reverse order and
tighten screws (1, Fig 185) to 5 Nm.

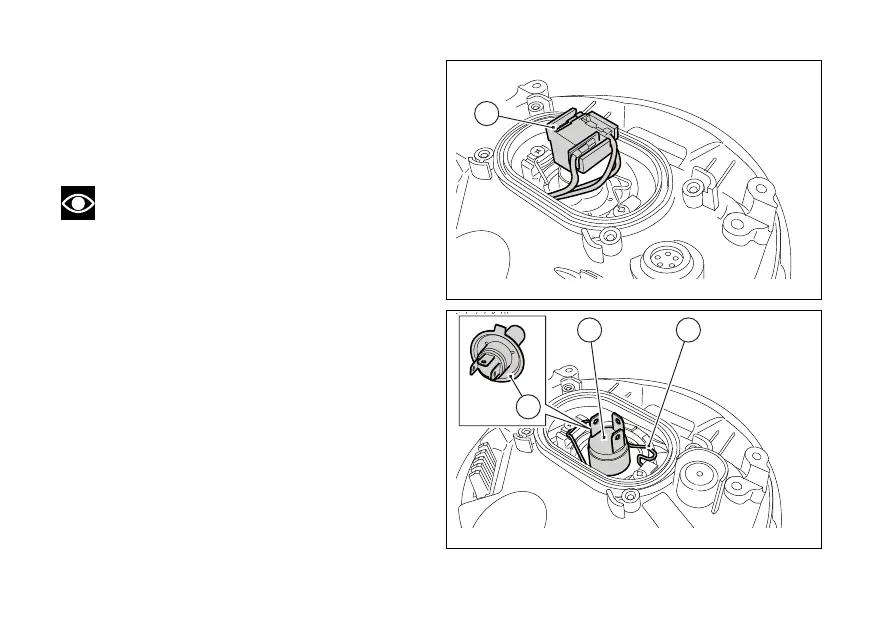

Fig 192
Fig 193
