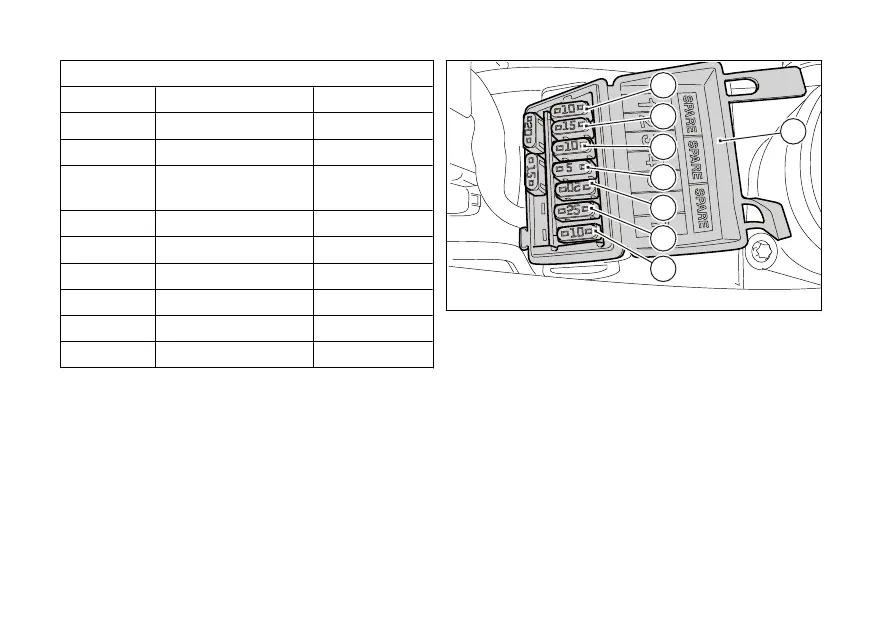

Fuse box (A,Fig 210) key( Fig 210)
Pos El. item Rat.
1 Key-on 10 A
2 El. loads 15 A
3 Instrument panel/
Lights
10 A
4 Control unit 5 A
5 Injection 20 A
6 IMU 5 A
7 Optional 5 A
Spare 20 A
Spare 5 A
1
A
2
3
4
5
6
7
Fig 210
224
