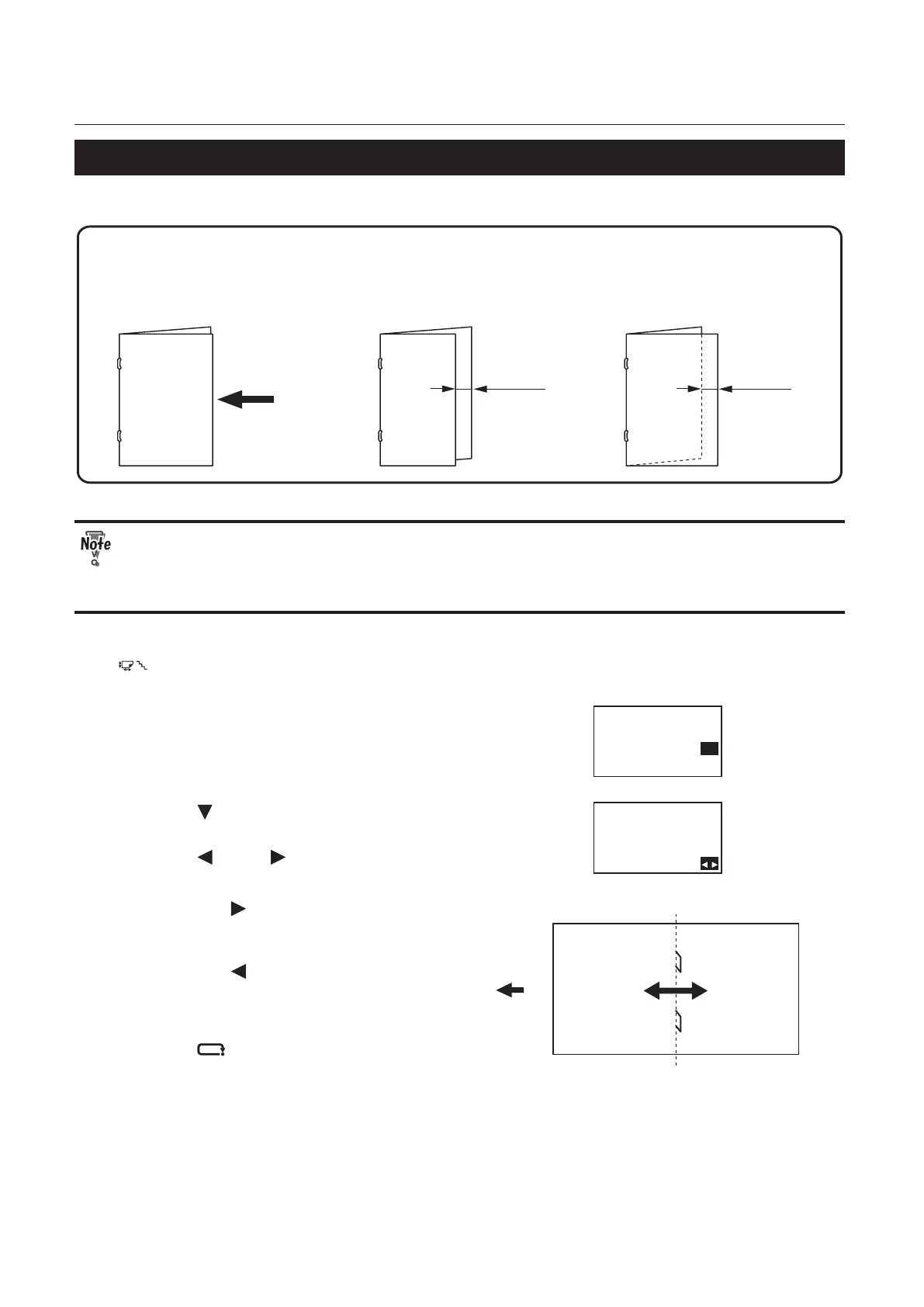

Chapter 2 Basic Operation
6-3. Adjusting stapling and folding positions simultaneously
Adjust the stapling position and the folding position at the same time.
Correct example
The stapled/folded line is at
the center of the paper.
The stapled/folded line is
out of position and the top
half of the paper is shorter.
The stapled/folded line is out
of position and the bottom
half of the paper is shorter.
Paper ejection
direction
Misalignment
Misalignment
If you have already adjusted the stapling and folding positions in "6-2. When stapling and
folding positions do not align," the range you can adjust here will be less than ±6. For example,
if you have set the stapling position to +3 and the folding position to -1, the adjustable range is
between +3 to –5.
1
With the top screen displayed, press the
key on the control panel.
+0
+0
Back Guide
Adjustment
Side Guide
After the guides move according to the paper
size, the [Adjustment] screen will be displayed.
Fold Psn
Staple Psn
S/F Psn
+0
+0
Adjustment
2
Press the to select [S/F Psn].
3
Press the key or key to change the
value.
Forward
Backward
Stapled position, folded position
- Pressing the
key moves the stapling
and the folding position by approx. 0.5
mm/0.02 inch backward.
- Pressing the
key moves the stapling
and the folding positions by approx. 0.5
mm/0.02 inch forward.
4
Press the key.
The top screen will be displayed.
