3-4
Chapter 3 Advanced Operation
2. Attaching the SXS MODIFICATION KIT (OPTION)
The use of the SXS MODIFICATION KIT enables you to use a sheet feeder as a upstream unit. Depending on
a paper size and the binding mode, the parts you need to attach to the DBM-150 vary as shown in the table
below.
Make sure to use the parts supplied with the SXS MODIFICATION KIT according to the table
below. Using the parts in wrong combination may cause binding problems as described below.
• When the attached lower conveyance unit or the side guide is wrong: paper conveyed from
the upstream unit jams near the stapler unit.
• When the attached joint bracket is wrong: paper do not align.

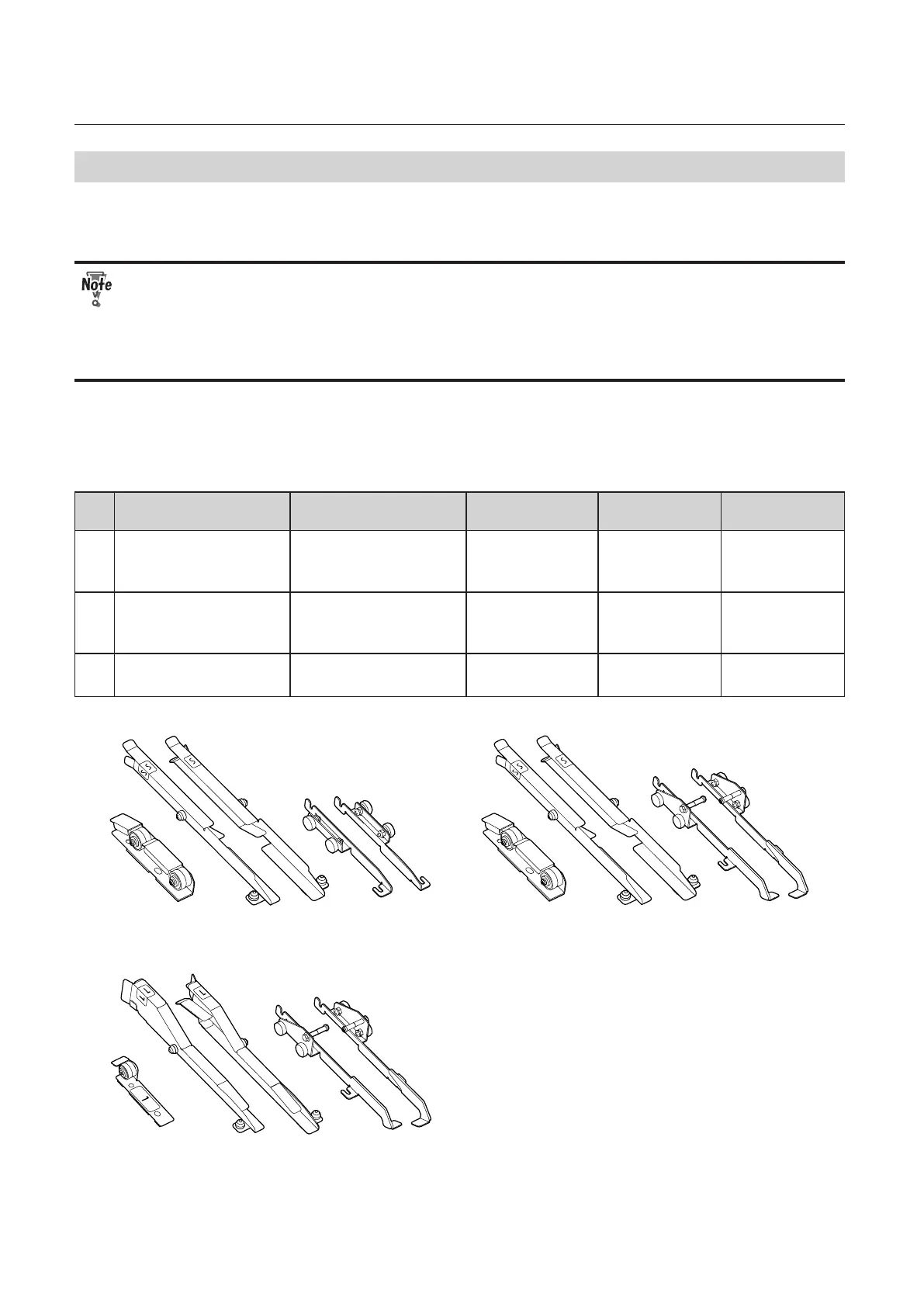

Parts combination according paper size and binding mode
Saddle staple and fold
No. Paper length Paper width
Lower
conveyance unit
Side guide Joint bracket
[1] 210 to less than 279 mm/
8.27 to less than 10.98
inches
120 to less than 148 mm/
4.73 to 5.83 inches
S S S
[2] 210 to less than 279 mm/
8.27 to less than 10.98
inches
148 to 320 mm/
5.83 to 12.60 inches
S S L
[3] 279 mm to 460 mm/
10.98 to 18.11 inches
148 to 320 mm/
5.83 to 12.60 inches
L L L
[1] [2]
[3]
