Programming a New JOB (Advanced Mode)
37
Programming JOB on Control Panel
2
Press the <6> key three times and the CURSOR (Right) key.
Press the SET key or the CURSOR (Down) key.
Width
Enter the width (mm) of the document using the NUMERIC keys.
The value must be between 210.0 to 330.5 mm.
When input is complete, press the SET key or the CURSOR (Down)
key.
Lead mark (Optional on 115V model and 230V Asia model)
This screen appears only when CCD is used.
When using REG mark reading function, enter the distance
between the lead edge of the document and the lead mark using
the NUMERIC keys. The value must be 3.0 to 15.0 mm.
When input is complete, press the SET key or the CURSOR (Down)
key.
Length
Enter the length (mm) of the document using the NUMERIC keys.
The value must be between 210.0 to 670.0 mm.
When input is complete, press the SET key or the CURSOR (Down)
key.
Side mark (Optional on 115V model and 230V Asia model)
This screen appears only when CCD is used.
When using REG mark reading function, enter the distance
between the right edge of the document and the side mark using
the NUMERIC keys. The value must be 3.0 to 15.0 mm.
When input is complete, press the SET key or the CURSOR (Down)
key.
If you enter 0, the screen skips to step 16.
Slit
When using Slit function, enter the distance from the right edge of
the document to the position for Slit1 using the NUMERIC keys.
When input is complete, press the SET key or the CURSOR (Down)
key.
REFERENCE
Inputtable range is displayed in (0/***.*-***.*).

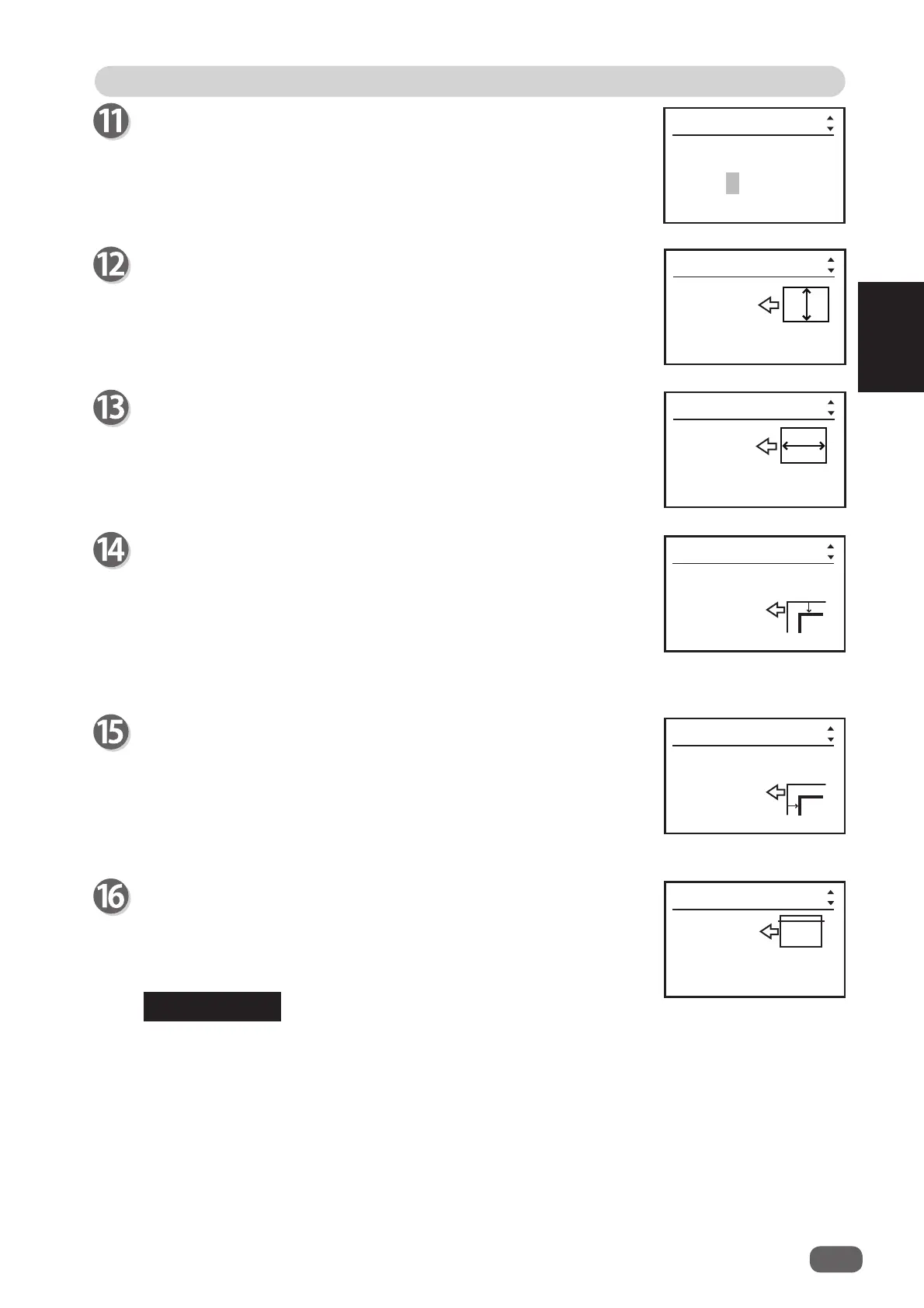

DUPLO
Enter JOB name
JOB** entry
Width
(210.0-330.5)
***.*mm
JOB** entry
Length
(210.0-670.0)
***.*mm
JOB** entry
Side mark
(0/3.0-15.0)
**.*mm
JOB** entry
Lead mark
**.*mm
(3.0-15.0)
JOB** entry
Slit1
(0/***.*-***.*)
***.*mm
JOB** entry
