21
2

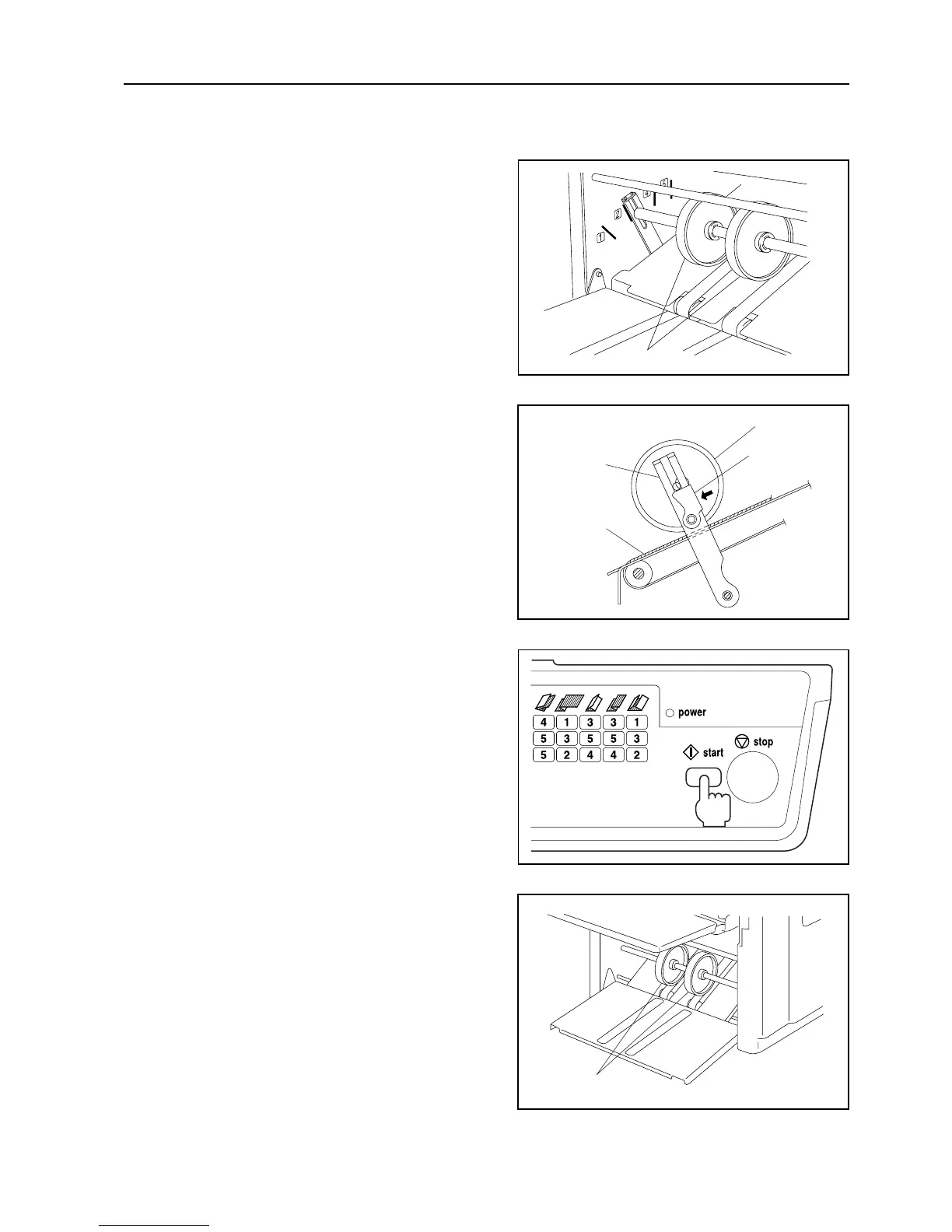

Adjust the stacker rollers to “5”.
3
Next, while lifting up the stacker
rollers with your hand, pull the levers
(left and right) attached to the stacker
lever in the direction of the arrow, and
adjust so that the stacker rollers are
above the belt.
4
Press the start button and test the
folding.
•
Check if the paper is ejected smoothly.
5
If the paper is not ejected smoothly,
change the position of the stacker
rollers.
7.
OPERATION PROCEDURES
Stack
er rollers
Stacker roller
Lever
Belt
Stacker lever
Stacker rollers
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Precautions
4
2 Usage Precautions
6
Power Supply
6
Operating Environment
6
Storage Conditions
6
Maintenance
6
3 Installing the Unit
7
Removing the Press Release Lever
7
Component Parts
8
Bearing Support Levers
8
Attaching the Parts
9
4 Names of the Parts
10
5 Names and Functions of the Control Panel Parts
11
6 Precautions before Use
12
Paper to be Used
12
Precautions for Stacking Paper
12
7 Operation Procedures
14
Fixed Folding of Fixed Paper
14
Single-Folding Paper Neatly
19
Single-Folding Hard Paper Neatly
21
Double Folding Thick Paper
22
Folding 5 (W) X 7 (L) Medium Thickness Paper (below 81.4 G/M 2 )
25
Specil Folding of Fixed Paper
28
8 Folding Adjustments
31
Adjusting the Folding Slippage in the Vertical Direction
31
Adjusting the Folding Slippage in the Horizontal Direction
33
9 Using Non-Fixed Paper
34
Fixed Folding Procedures
34
10 Cross Folding
36
Precautions Upon Use
36
Cross Folding of Fixed Paper
36
Cross Folding of Non-Fixed Paper
39
11 Troubleshooting
44
Paper Has Jammed Near the Paper Feed Ring
44
Paper Has Slipped Near the Paper Feed Section
44
Paper Has Coiled Around the Rubber Roll Inside the Unit
45
Paper Has Jammed at the First Folding Plate
45
Paper Has Jammed at the Second Folding Plate
46
Paper Has Jammed Near the Stacker
47
12 Emergency Stops
48
13 Troubleshooting Guide
49
14 Cleaning the Unit
52
Cleaning the Rubber Roll
52
Cleaning the Paper Feed Ring
53
15 Specifications
54
