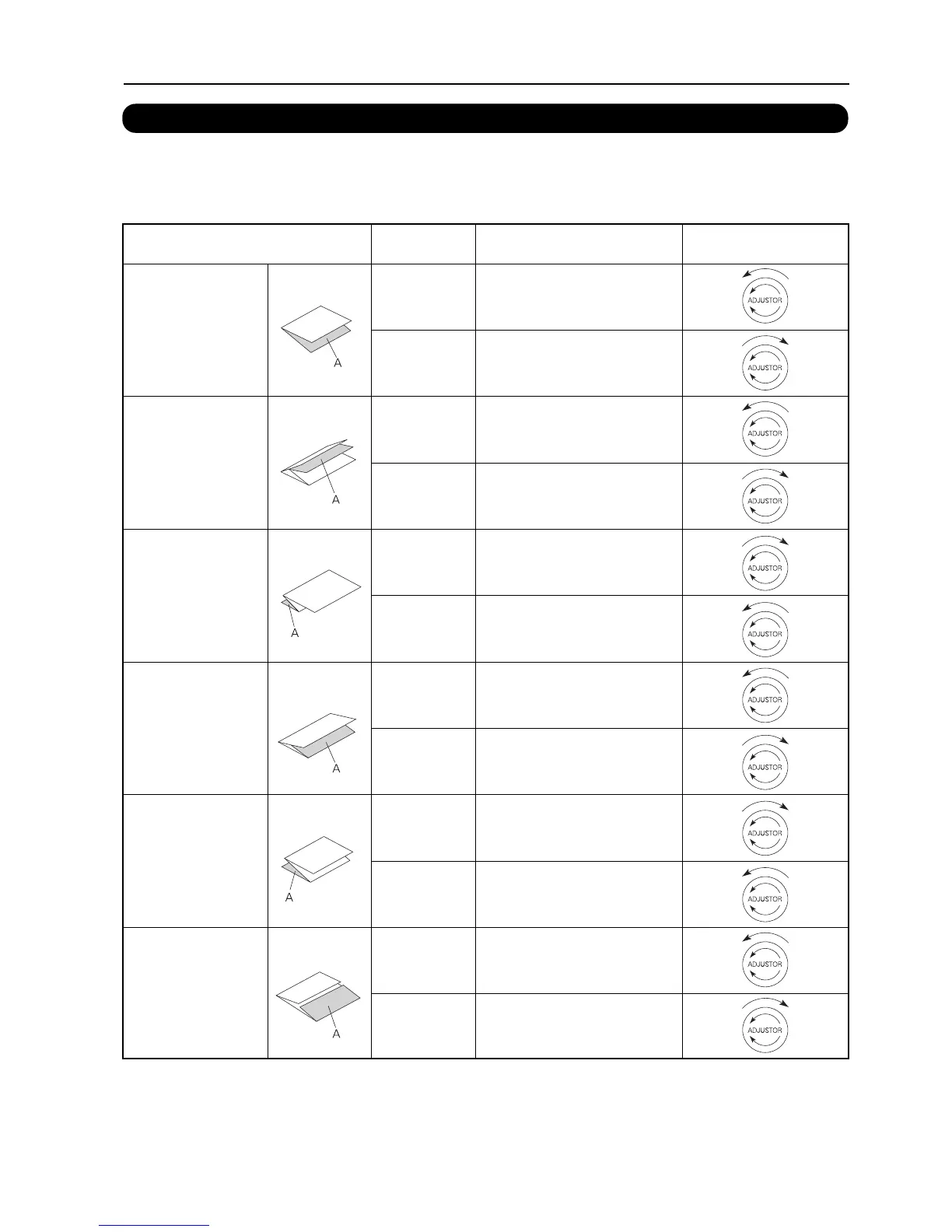

8. FOLDING ADJUSTMENTS
8-1. ADJUSTING THE FOLDING SLIPPAGE IN THE VERTICAL DIRECTION
To adjust the folding slippage in the vertical direction, rotate the fine adjustment knob of
first folding plate.
Folding Style
Fold Surface A Adjustment
First Folding Plate
Fine Adjustment Knob
Single Fold
Double Fold
Letter Fold
Accordion Fold
Brochure Fold
Irregular
Accordion Fold
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
When A
is longer
When A
is shorter
Rotate the fine adjustment
knob counterclockwise
Rotate the fine adjustment
knob clockwise.
Rotate the fine adjustment
knob counterclockwise
Rotate the fine adjustment
knob clockwise.
Rotate the fine adjustment
knob clockwise.
Rotate the fine adjustment
knob counterclockwise
Rotate the fine adjustment
knob counterclockwise
Rotate the fine adjustment
knob counterclockwise
Rotate the fine adjustment
knob counterclockwise
Rotate the fine adjustment
knob clockwise.
Rotate the fine adjustment
knob clockwise.
Rotate the fine adjustment
knob clockwise.
