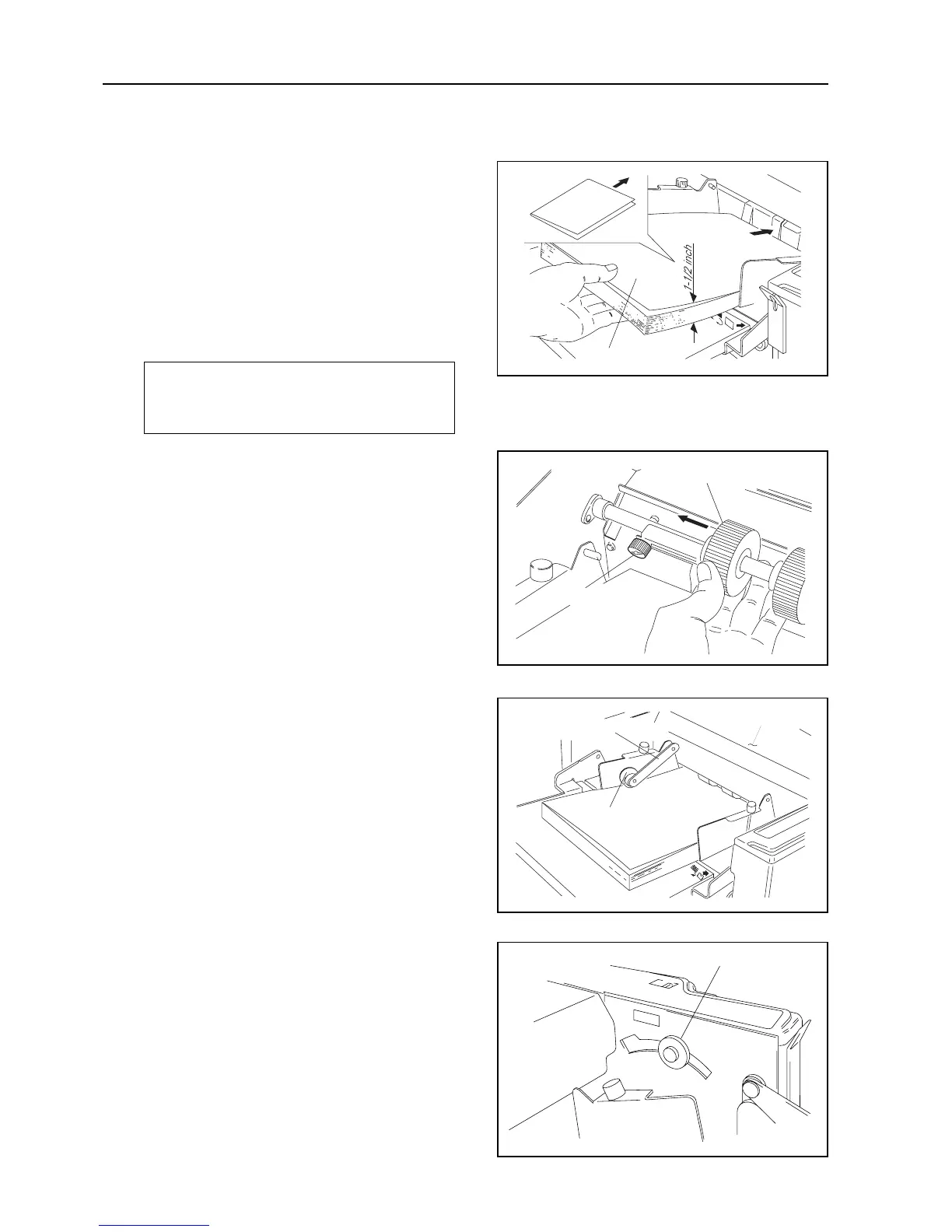

7 Set the single fold paper on the paper
feed table.
Place the paper with the folded edge
to the back of the unit as shown in the
figure.
• To prevent folding slippage in the horizontal
direction and misfeeding, press the folded edge of
the paper with your hand firmly.
The amount of paper that can be folded is
approximately 2/3 (approx. 1-1/2 inch) of the
height of the guide at the folded side.
8 Open the top cover and move the
paper feed ring at the far end to the
folded edge of the paper.
• Loosen the set screw and move the paper feed ring.
• After moving the paper feed ring, tighten the set
screw properly.
9 Close the top cover and adjust the
cross folding lever to the guide.
• Place the weight rollers at the tip of the lever on top
of the folded edge.
10 Set the paper feed pressure adjusting
knob to “thin paper”.
• If the paper slips, and no paper is conveyed, set the
paper feed pressure to “thick paper”.
10. CROSS FOLDING (Optional-Cross Folding kit is required)
Paper
Set knob
Paper feed ring (For moving)
Top cover
Cross folding lever
Weight roller
Paper feed pressure adjusting knob
To Next Page
