About the RTM (Rotary Tool Module)

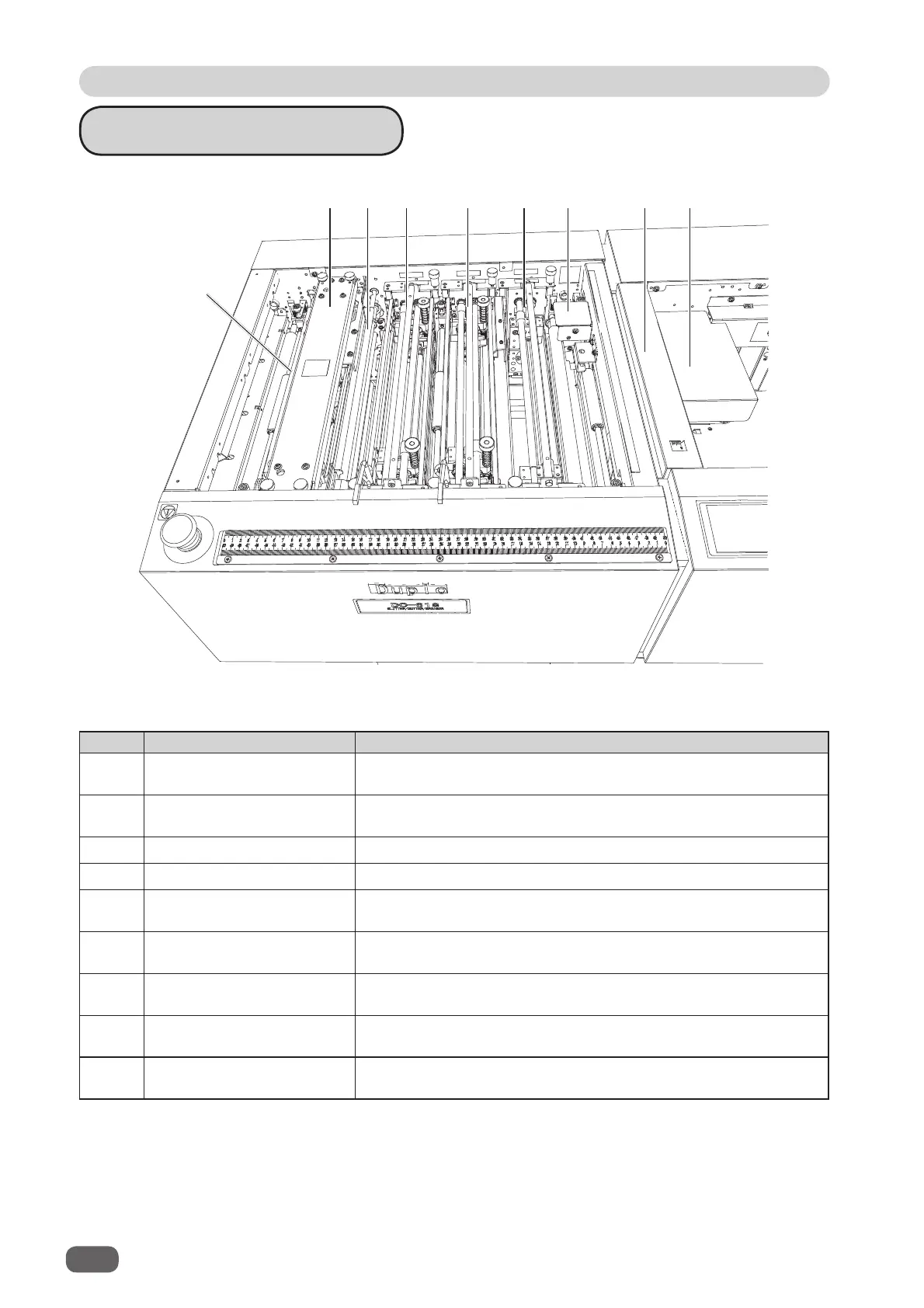

Inside of the DC-618
No. Name Function
1 Belt suction unit
The suction fan sucks up documents one by one and the
feed belt feeds each of them.
2
Double feed detection
section
Detects a double feed with the ultrasonic sensor.
3 CCD section Reads a REG mark and a barcode.
4 Slot 1 Install the
margin slitter module
here.
5 Slot 2
Install the
center slitter module1
or the
RTM (Rotary Tool
Module)
here.
6 Slot 3
Install the
center slitter module2
or the
RTM (Rotary Tool
Module)
here.
7 Gutter defl ector section
The gutter defl ectors automatically move according to gutter
positions and drop gutter slits in the waste box.
8 Creaser section
Creases a document perpendicularly to the document feed
direction.
9 Cutter Section
Cuts a document perpendicularly to the document feed
direction.
2
13456
8 7
9
