How to Replace a Rotary Tool
Before Using This Module
1
REFERENCE
REFERENCE

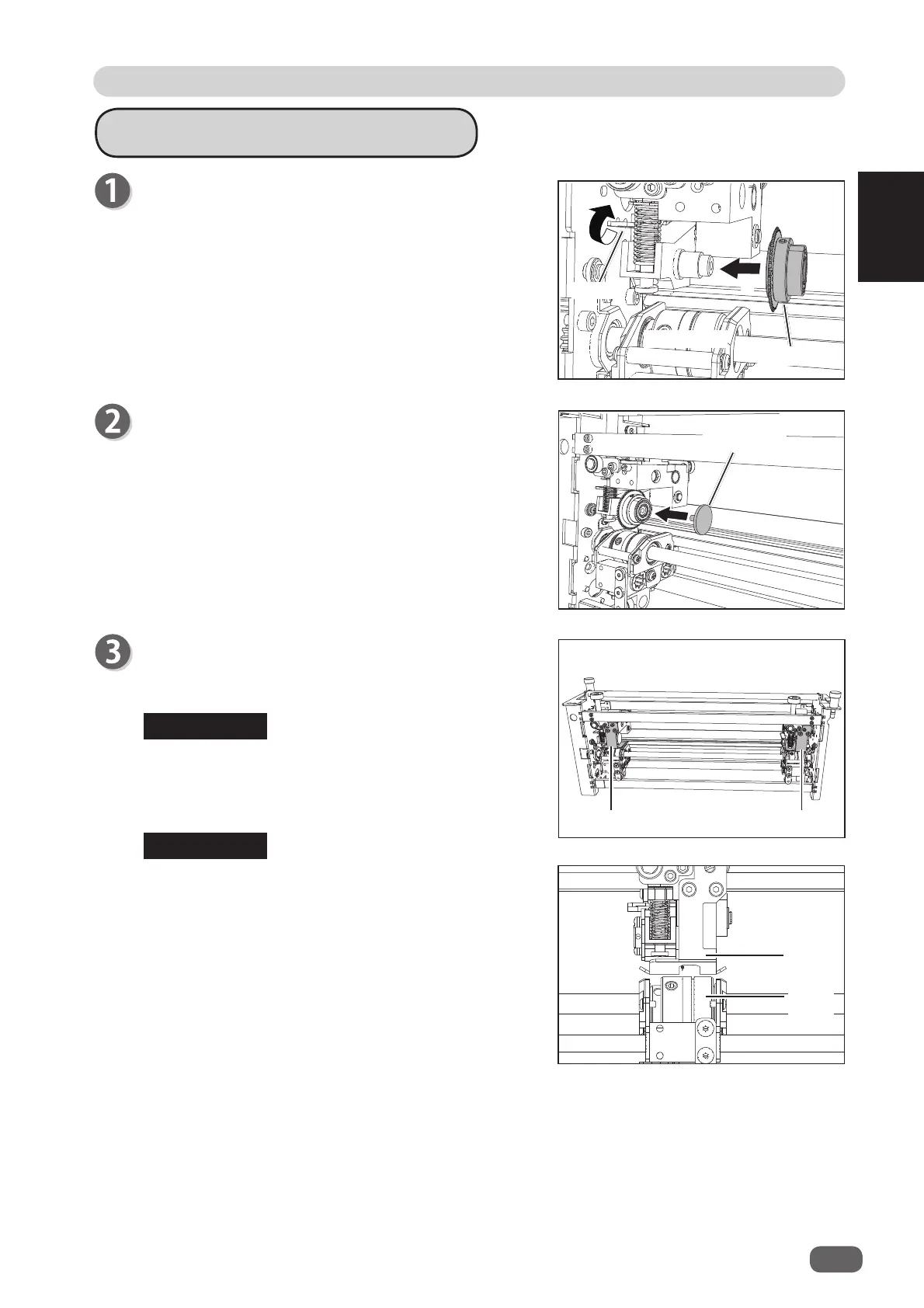

Attaching a Rotary Tool
Secure the
rotary tools
with the
hand knobs
. (unit L:
1 pce., unit R: 1 pce.).
Attach the
guide L
and the
guide R
with the four
hexagon socket head cap screws
(two each on
both guides).
Use the hexagon wrench that came with the
DC-618.
Attach the
guides
so that the bottom faces of the
guide L
and the
guide R
are parallel to the faces of
the
lower tools
.
While raising the
lever
(
1
), attach the
rotary tool
(
2
)
in the direction of the arrow. (on both sides)
Guide L Guide R
Guide
Lower tool
Rotary tool
Hand knob
Lower
tool
1
2
Lever
To Next Page
