Duplo RTM-08 - Direct - Advanced Mode

JOB Entry
34

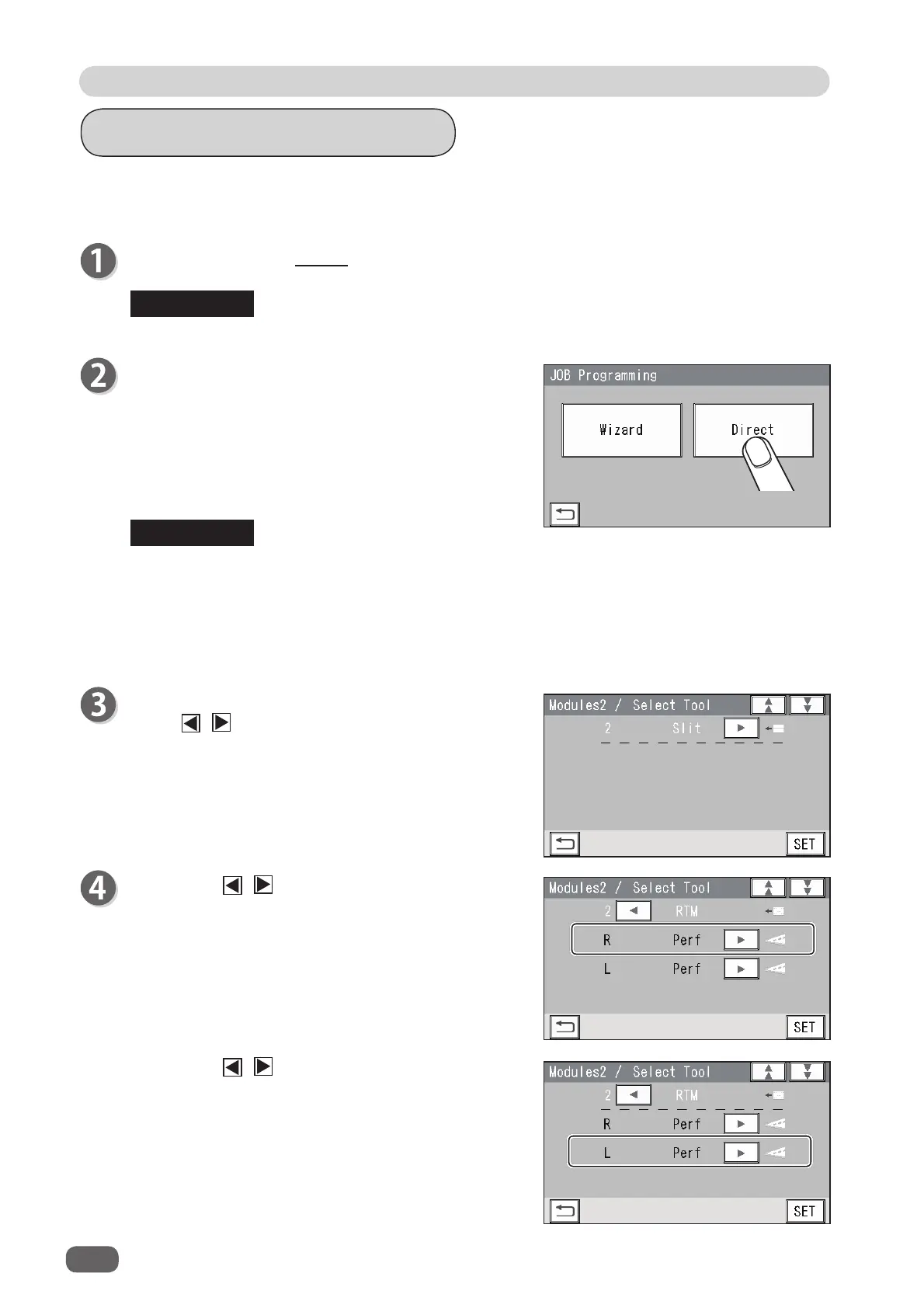

Direct - Advanced Mode
There are two programming modes in
Direct
,
Advanced Mode
and
Simple Mode
.
On the
Environment - Environment
screen, select
Advanced Mode
for
Basic Mode
.
JOB Programming
Touch
Direct
.
Wizard
: This helps you program a JOB in a user size
in a simple way.
Direct
: This programs a JOB by entering a value of
each item.
You cannot reprogram the following JOBs in
Wizard
:
• A JOB programmed in
Direct
• A JOB saved in
Wizard
and edited in
Direct
• A JOB saved in
Wizard
by using the PC
Controller
Save a new JOB as a diff erent JOB number or clear the JOB already saved and then save
the new one.
Follow steps 1 to 4 in Wizard. (→P.18)
The settable values are displayed in the lower left part of the screen.
Module (Slot2) / Select Tool
Touch / to select
RTM
out of
Slit
,
RTM
, or
Standard
for a module in slot. Touch
SET
.
(
A module which is not programmed by a service
person when installed is
not displayed.)
1. Touching / displays
Perf
,
Micro
, and
Score
.
Select a rotary tool on the right side (
R
) in
slot 2
.
2. Touching / displays
Perf
,
Micro
, and
Score
.
Select a rotary tool on the left side (
L
) in
slot 2
.
Touch
SET
.
