Dyson DC15 Service Manual

service manual
Issued 05/05
14

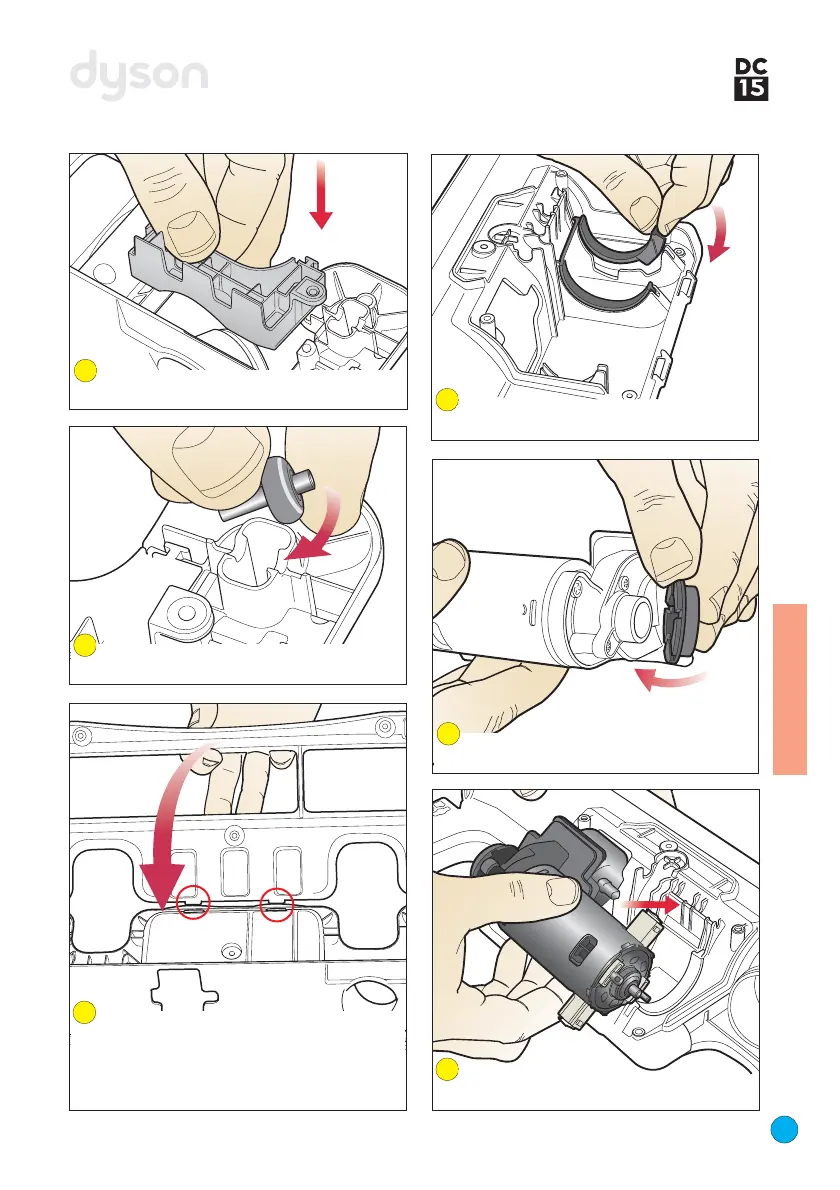

Fitting notes
Lower the glamour cover into the brush
housing.
Slide the soleplate wheels onto the axles.
Fit both parts into the brush housing.
Clip the rear edge of the soleplate into the
brush housing and then lower the soleplate onto
the brush housing. Refit the five Pozi screws
ensuring that the short screw locates in the
centre.
Lower the brushbar motor assembly into
the brush housing.
Refit the brushbar motor end mount onto
the end of the brushbar motor assembly.
Refit the brushbar motor bottom mount
into the brush housing.
45
46
47
44
43
42
