Dyson DC15 Service Manual

service manual
Issued 05/05

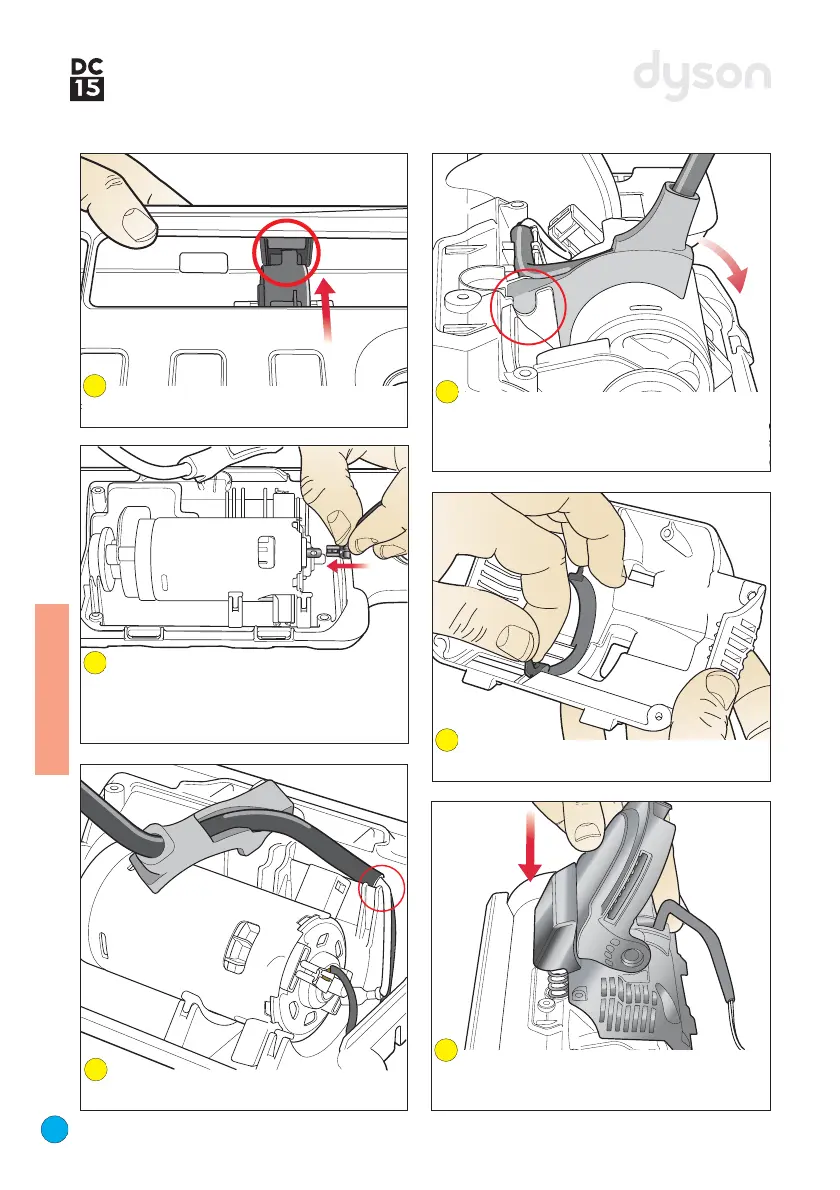

Refit the cleanerhead spring onto the cruciform
on the brush housing. Lower the brushbar motor
cover assembly over the yoke loom.
53
15
Fitting notes
Turn the brush housing over and locate the
motor into the brushbar motor front mount.
Push the yoke loom grommet into the locator
in the brush housing. Locate the grommet onto
the brushbar motor assembly. Press the sheaving
into the channel on the brush housing.
Lower the brushbar motor assembly onto
the brushbar motor bottom mounts. Attach
both yoke loom wires onto the end of the
brushbar motor.
Refit both brushbar motor top mounts into
the brushbar motor cover assembly.
Locate the end of the outer insulation
sheathing behind the wall as shown.
48
49
50
52
51

Dyson DC15 Specifications

General

Type	Upright
Ball Technology	Yes
Cord Length	35 ft
Filter Type	HEPA
Filter	Lifetime HEPA
Special Features	Ball technology
Cyclone Technology	Root Cyclone™ technology
