Dyson DC15 Service Manual

service manual
Issued 05/05
16

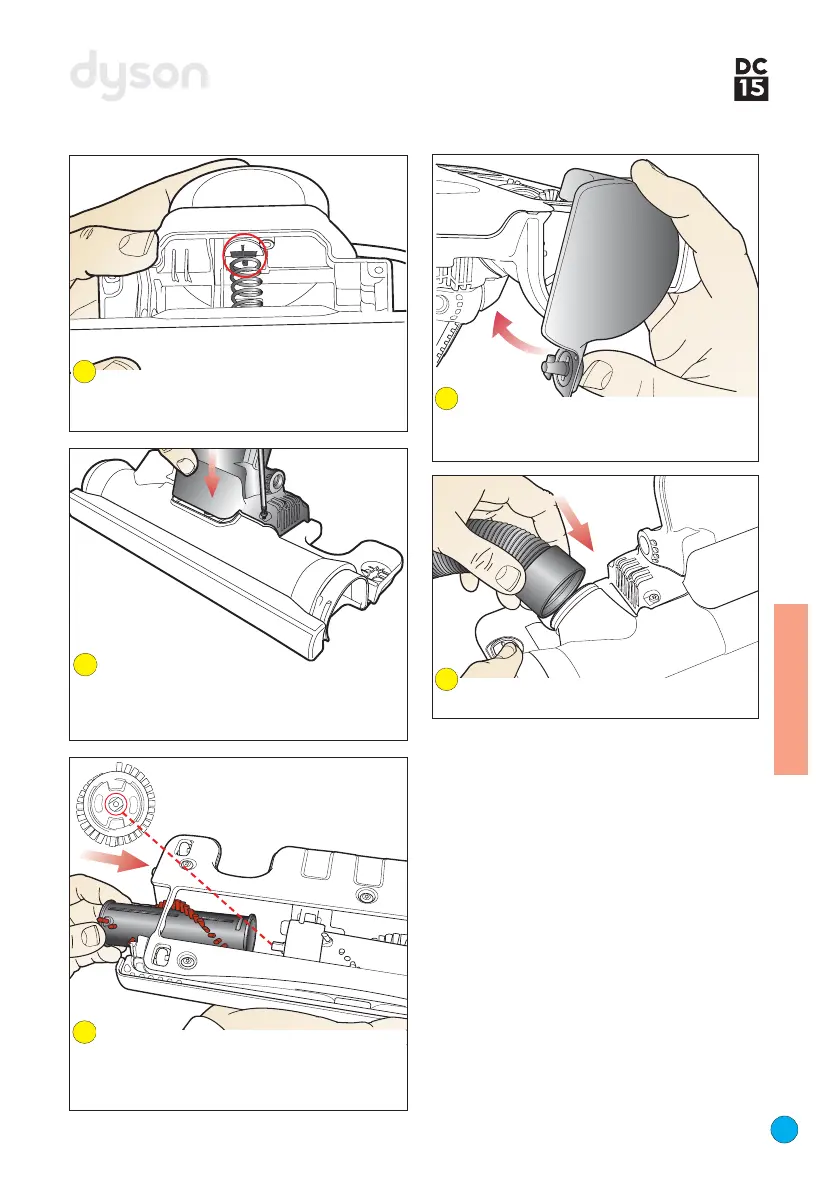

Fitting notes
Align the cleanerhead spring with the
cruciform on the base of the brushbar motor
cover assembly.
Push the endcap assemblies onto the ends
of each brushbar and twist into place. Then
retighten the endcap fasteners.
Align the end of each half of the brushbar
assembly with the brushbar motor spindle. Push
each half of the brushbar assembly onto the
spindle.
Refit the cleanerhead hose onto the brush
housing.
56
57
58
54
Lower the brushbar motor cover assembly
onto the brush housing. Hold in place whilst
refitting the four black screws in the top of the
brush housing and the screw in the underside.
55
