Easy xLogic User Manual

117
117
117
117

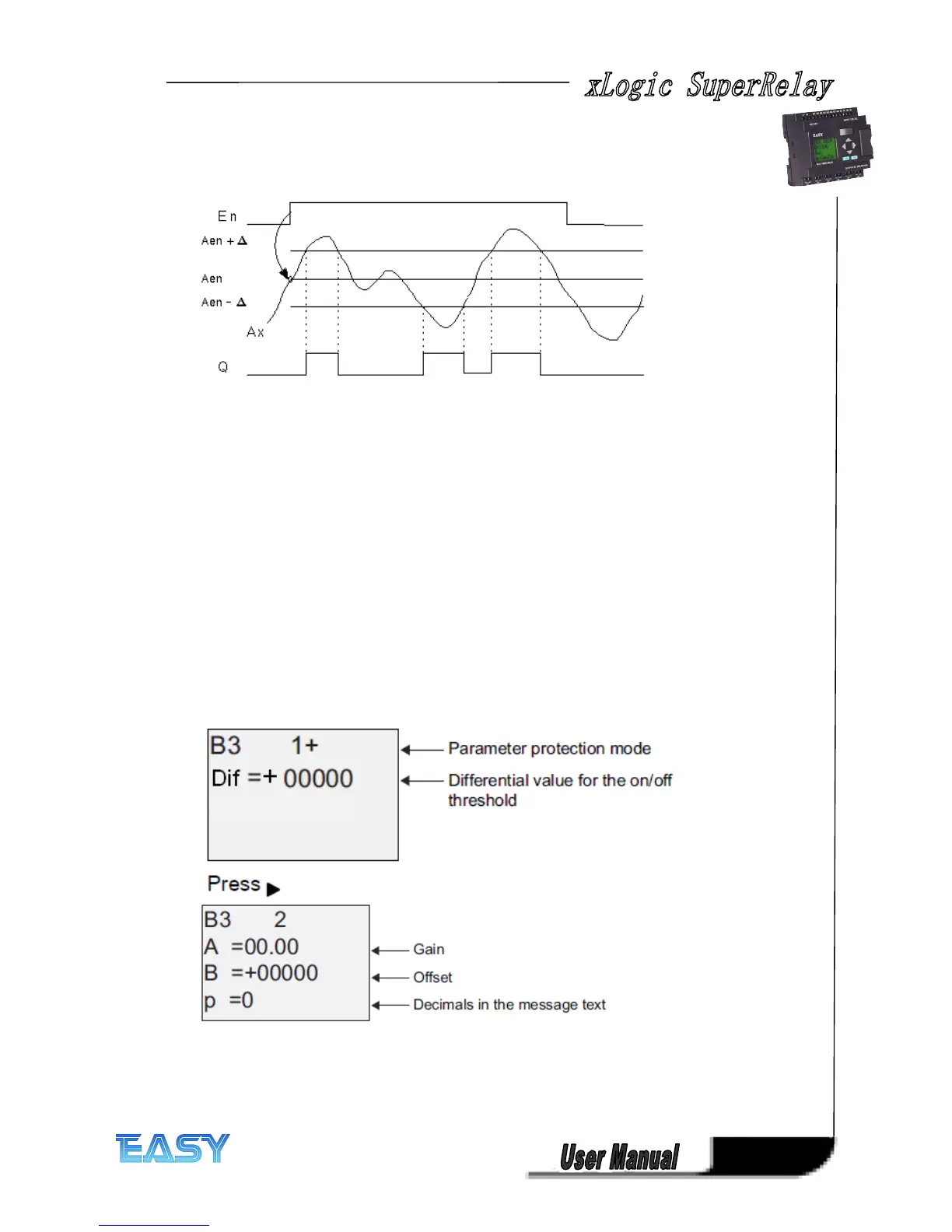

Timing
Timing
Timing
Timing diagram
diagram
diagram
diagram
Description
Description
Description
Description of
of
of
of the
the
the
the function
function
function
function
A 0 to 1 transition at input En saves the value of the signal at the analog input Ax. This saved
process variable is referred to as Aen".
Both the analog actual values Ax and Aen are multiplied by the value at parameter A (gain), and
parameter B (offset) is then added to the product, i.e.
(Ax ∙ gain) + offset = Actual value Aen, when input En changes from 0 to 1, or
(Ax ∙ gain) + offset = Actual value Ax.
Output Q is set when the signal at input En = 1 and if the actual value at input Ax is out of range
of Aen ± Delta.
Output Q is reset, when the actual value at input Ax lies within the range of Aen +- Delta, or
when the signal at input En changes to lo.
Setting
Setting
Setting
Setting the
the
the
the Par
Par
Par
Par parameter
parameter
parameter
parameter
The gain and offset parameters are used to adapt the used sensors to the respective
application.
View in programming mode:
