Note: The "pulse" only applied to ELC-12&Upgraded ELC-18 CPU and the standard/economic
ELC-18 with the hardware version number must be not less than "2.04".
Days
Days
Days
Days of
of
of
of the
the
the
the week
week
week
week

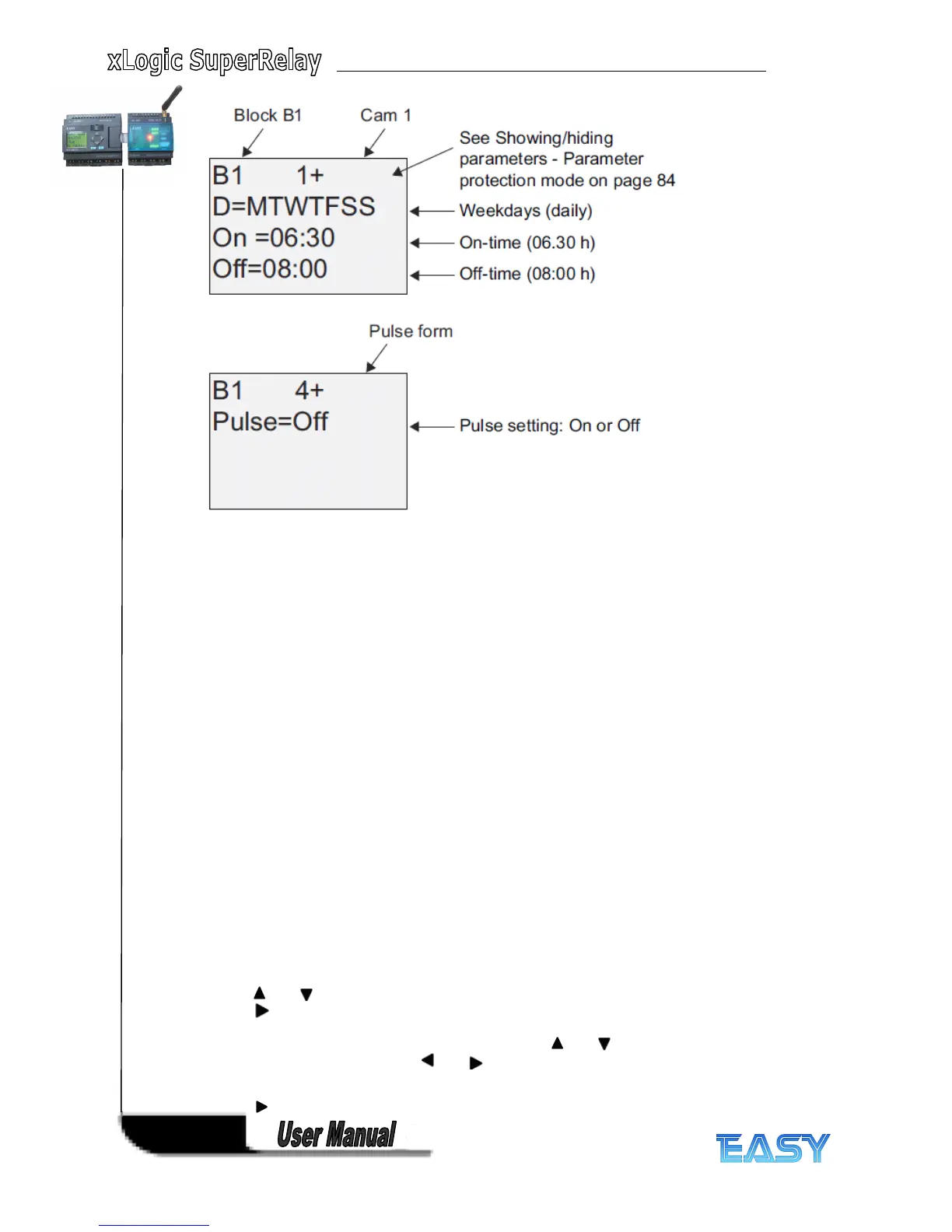

The prefix "D=" (Day) has the following meaning:
● M: Monday
● T: Tuesday
● W: Wednesday
● T: Thursday
● F: Friday
● S: Saturday
● S: Sunday
Uppercase letters indicate a specific day of the week. A "-" indicates no selection for the day
of the week.
On-/Off-times
On-/Off-times
On-/Off-times
On-/Off-times
Any time between 00:00 h and 23:59 h is possible.You can also configure the on time to be a
pulse signal. The timer block will be activated at the specified time for one cycle and then the
output is reset.
- -:- - means: No on-/off-times set.
Setting
Setting
Setting
Setting the
the
the
the weekly
weekly
weekly
weekly timer
timer
timer
timer
To set the on-/off-times:
1. Move the cursor to one of the Cam parameters of the timer (e.g. No1).
2. Press OK
OK
OK
OK . xLogic opens the Cam parameter assignment screen form. The cursor is
positioned on the day of the week.
3. Press and to select one or several days of the week.
4. Press to move the cursor to the first position of the on-time.
5. Set the on-time.
Modify the value at the respective position, using the keys and . Move to the cursor to
the various positions, using the keys and . At the first position, you can only select the
value - -:- -
(- -:- - means: No on-/off-times set).
6. Press to move the cursor to the first position of the off-time.
To Next Page
