Installation
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 23
4. Plug the EBM cable(s) into the battery connector(s) as shown in Figure 16. Up to four EBMs may be
connected to the UPS.
5. For each cable retention clip removed, rotate the clip and i
nstall it under each EBM cable connection using
the retained screws.
6. Verify that the EBM connections are tight and that adequate bend radius and strain relief exist for each
cable.
7. Continue to “UPS Initial Startup” on page 24.
1000–1500 VA Models
2000–3000 VA Models

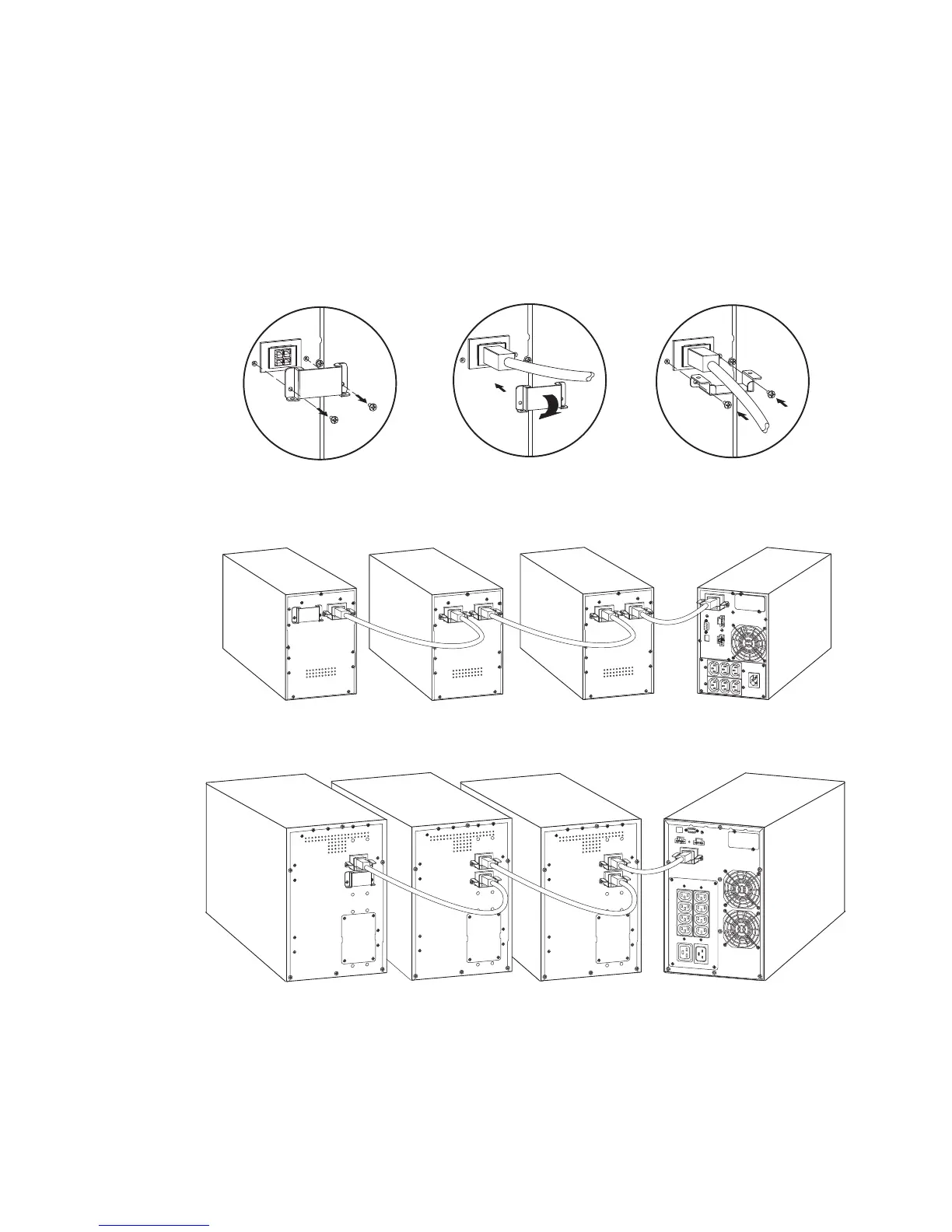

Remove cable retention clip. Plug in EBM cable. Rotate clip. Reinstall cable retention clip.
Figure 16. Connecting the EBMs
