Eaton 9130 - Page 76

REPO
Port
USB
Port
Communication
Bay
RS-232
Port
Relay
Port
IEC C14-10A
Input Connector
(4) C13
Output Receptables
(2) Aust 10A
Output Receptables
Specifications
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 70

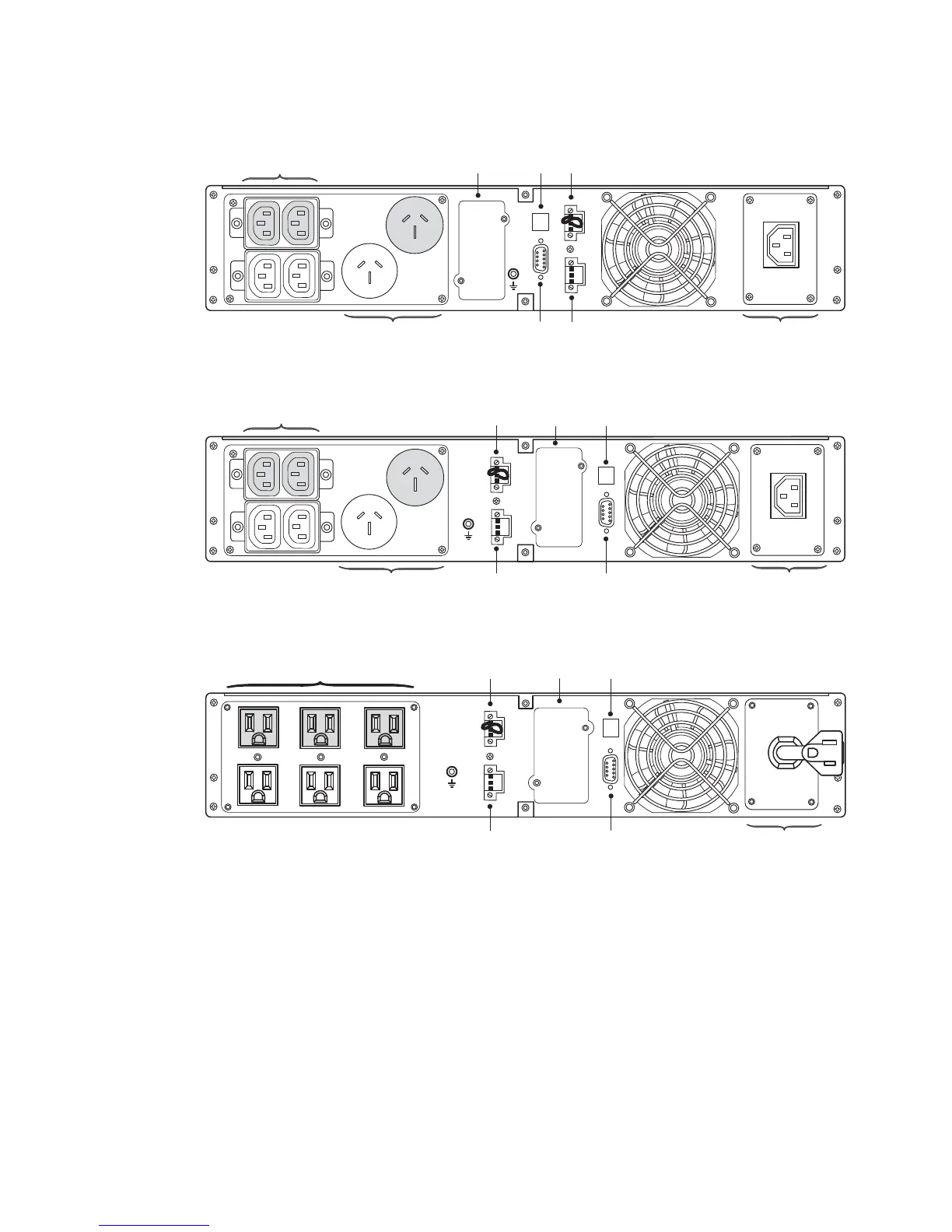

Figure 31. Model PW9130G1000R-XL2UAU
REPO
Port
USB
Port
RS-232
Port
Relay
Port
Communication
Bay
IEC C14-10A
Input Connector
(4) C13
Output Receptables
(2) Aust 10A
Output Receptables
Figure 32. Model PW9130G1500R-XL2UAU
REPO
Port
USB
Port
RS-232
Port
Relay
Port
Communication
Bay
5-15P
Input Cord
(6) 15-5R
Output Receptables
Figure 33. Model PW9130L1500R-XL2U, PW9130L1500R-XL2US
