93
EA(B)O-6X06 01/2018 Rev. 1 3. Disassembly and Assembly

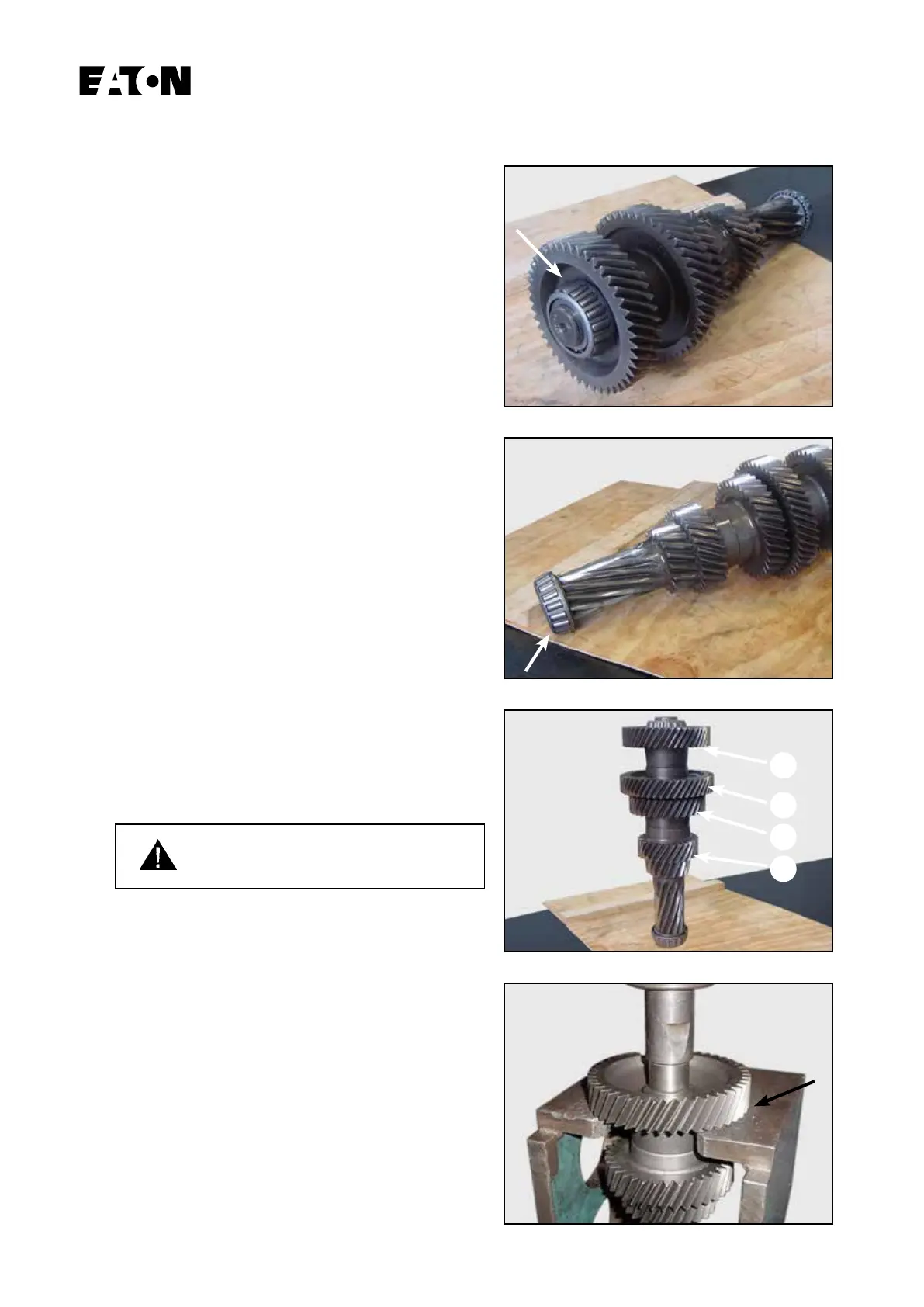

Countershaft
6124
6122
6123
0368
1
2
4
3
Disassembly
1. With special tool EEA-17134 with EEA-17103 (not
shown), remove the front bearing cone.
2. With special tool EEA-17134 with EEA-17103 (not
shown), remove the rear bearing cone.
3. Place the countershaft vertically in a press, with the
front end facing up. Supporting the countershaft by the
lower face of the drive gear (1), press the shaft down
and remove the drive gear.
CAUTION! Hold the countershaft from
underneath the press so it does not fall.
4. Repeat the previous step for each of the following gears,
in this order:
- 6th speed gear (2)
- 4th speed gear (3), using special tool EEA-17132
- 3rd speed gear (4), using special tool EEA-17133
