6. Function blocks
6.1 Manufacturer function blocks

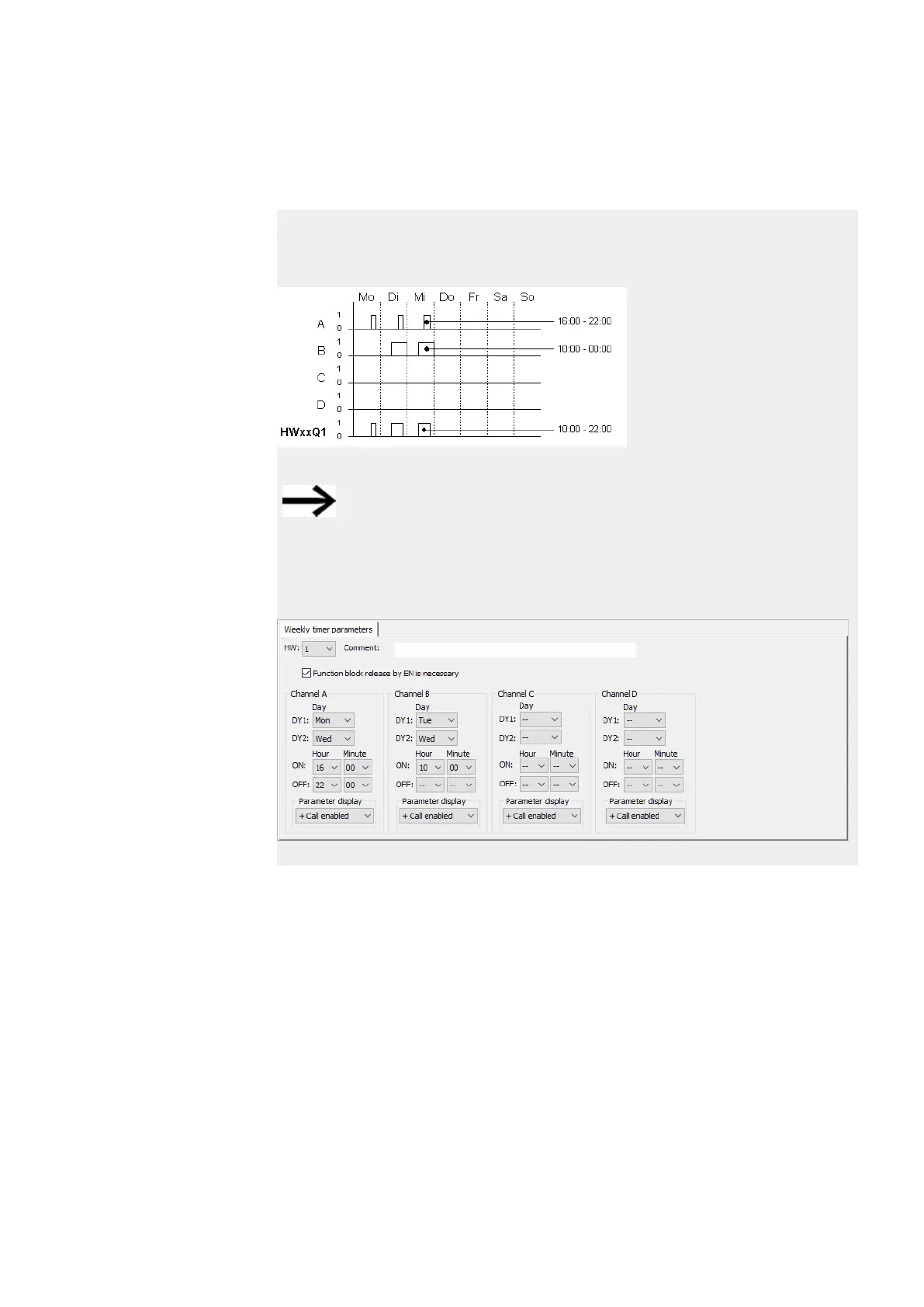

Example 4: Time overlap
The time settings of a time switch overlap. The clock switches on at 16:00 on Monday,
whereas on Tuesday and Wednesday it switches on at 10:00. The off time for Mondays
to Wednesdays is 22:00.
Figure 101: Signal diagram
The first on time at one of the four channels switches output
Q1 to 1. The first off time of a channel switches output Q1 to 0.
If the on time and off time are the same, the output Q1 is
switched off.
The HW time switch must be assigned the following parameters:
Figure 102: Figure: Tab with parameters in the Programming view
easyE4 11/18 MN050009 EN www.eaton.com
175
