6. Function blocks
6.2 Interrupt function blocks

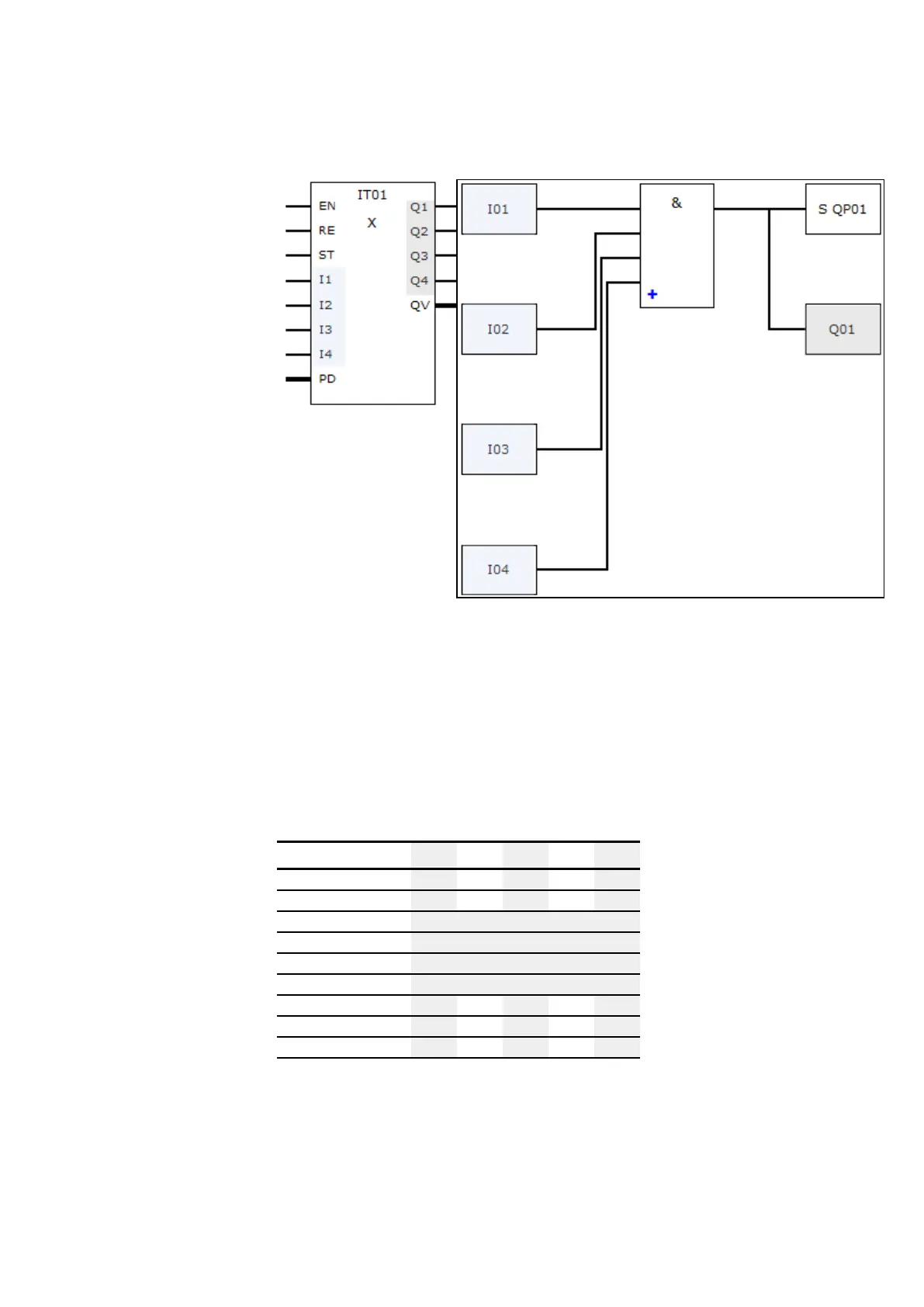

Figure 199: Input and output states being passed between the main program and interrupt program
If an output is defined as a physical output on base device in the parameters for the
interrupt program, the output will be assigned an identifier of QP01 – QP04 and will act
directly on device output Q1 – Q4.
Zur Verarbeitung des Interrupt-Programmes hat der Funktionsbaustein einen eigenen
Merkerbereich von 32 Merker-Bits.
Available functions within an interrupt program
Interrupt programs are not available when using the EDP programming language.
Action KOP FBS ST
New network √ √ √
Input/output inverter √ √ √
Contacts Make, Break, Constant 1, Constant 0
Coils Contactor, Negated contactor, Set, Reset
Jump functions Jump if 1, Jump if 0, Return if 1, Return if 0
Logic gates AND, AND NOT, OR, OR NOT, XOR, XNOR
Conditional statement – – √
Simple alternative – – √
Multiple alternatives – – √
easyE4 11/18 MN050009 EN www.eaton.com
425
