34008235EN/AC - Page 9

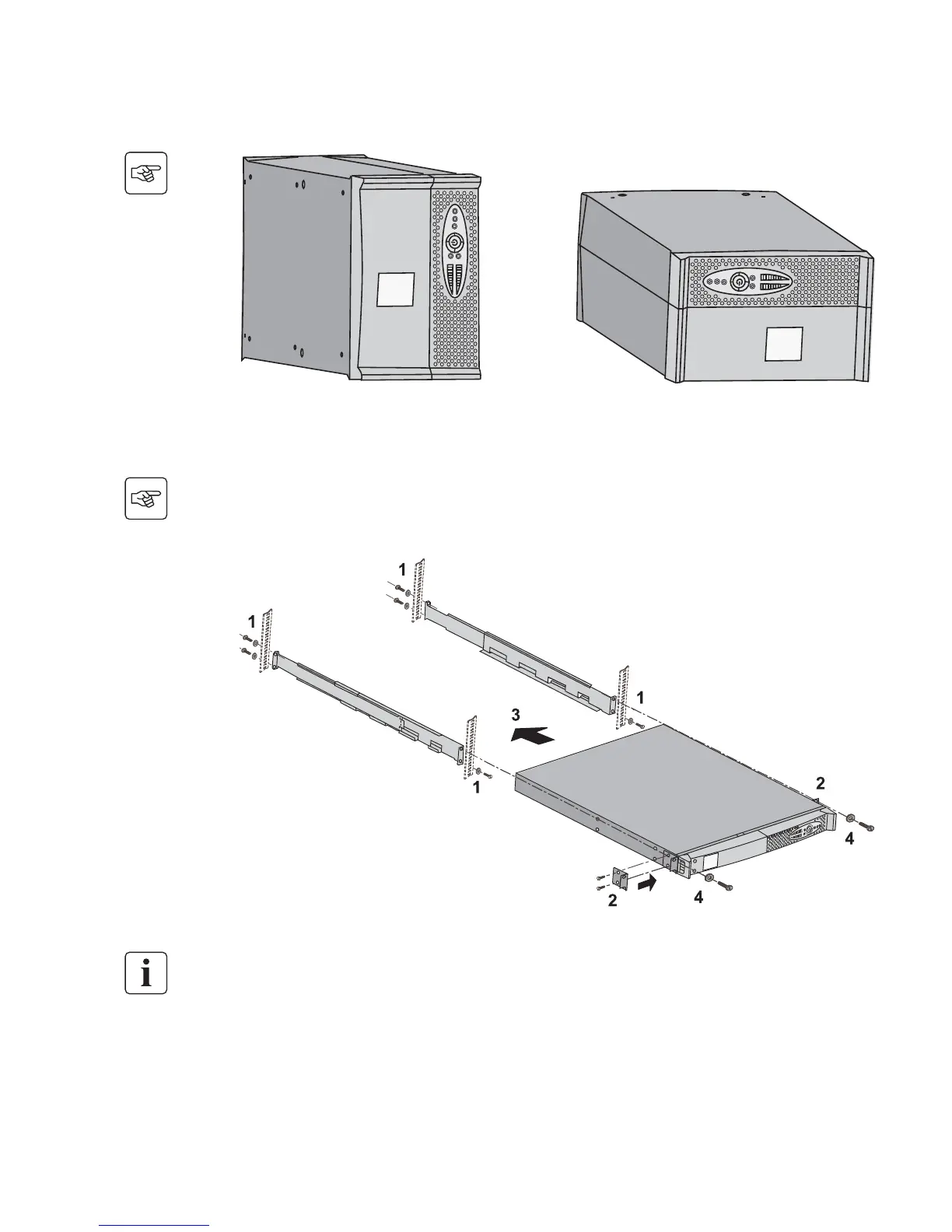

2. Installation
2.2 Installation of tower model
2.3 Installation of rack model
Follow steps 1 to 4 for module mounting on the rails.
The rails and necessary hardware are supplied by EATON.
