7.3 Dimensions
7.3.1 Degree of protection IP20

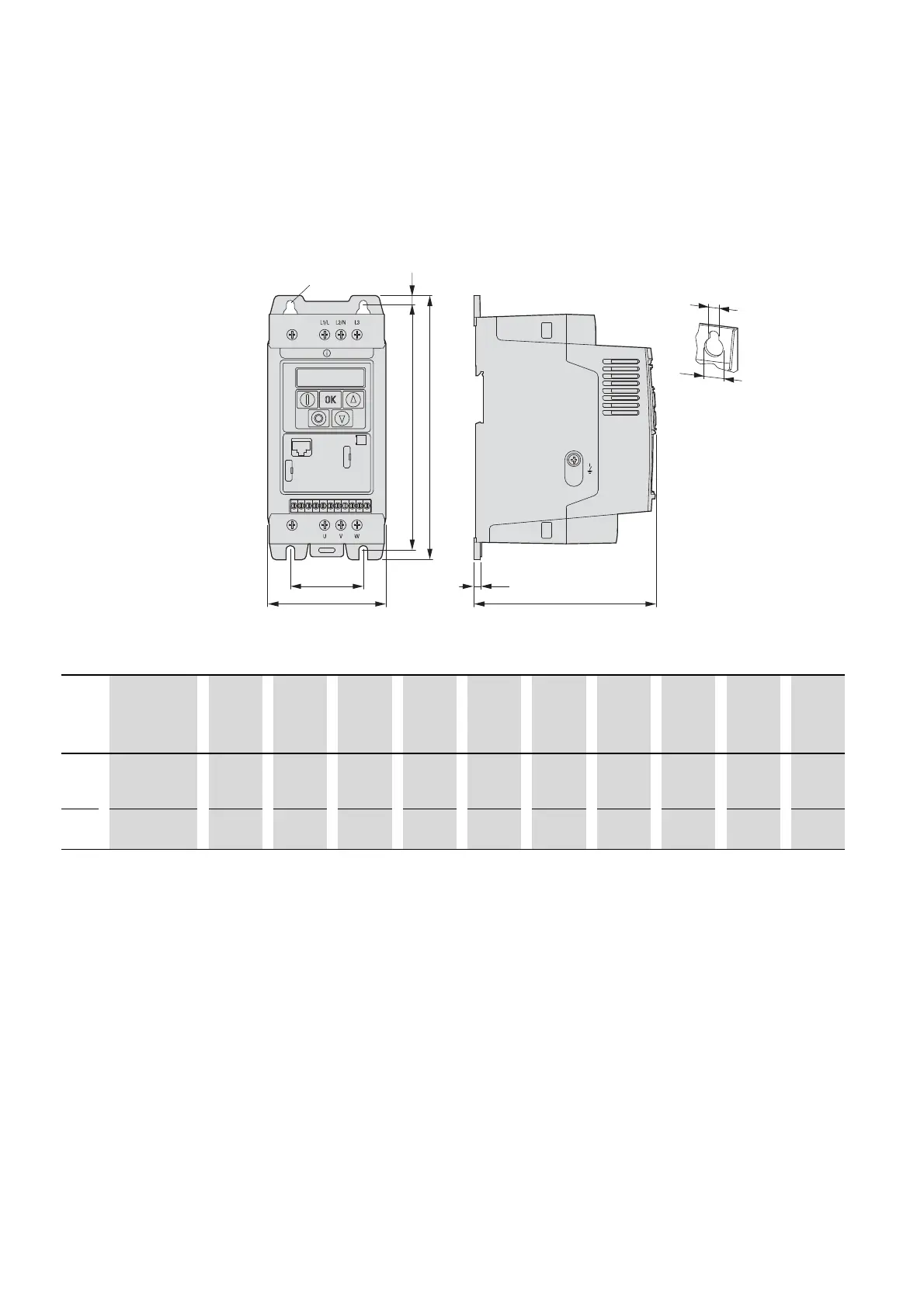

Figure 75: Dimensions for DC1-S… with IP20 degree of protection (NEMA 0)
Table 50: Dimensions and weights DC1-S… in IP20
c
c1
VAR
EMC
b
b1
a
a1
1234567891011
⌀ 1
⌀ 2
⌀
b2


FS Type a a1 b b1 b2 c c1 ⌀ 1 ⌀ 2 m
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
mm
(in)
kg
(lbs)
FS1 DC1-S17D0…
DC1-S24D3…
DC1-S27D0…
81
(3.19)
50
(1.97)
184
(7.24)
170
(6.69)
7
(0.28)
124
(4.88)
4
(0.16)
6
(0.24)
12
(0.47)
1.1
(2.43)
FS2 DC1-S1011…
DC1-S2011…
107
(4.21)
75
(2.95)
231
(9.09)
215
(8.46)
8
(0.31)
152
(5.98)
5
(0.2)
6
(0.24)
12
(0.47)
2.6
(5.73)
1 in = 1’’ = 25.4 mm, 1 mm = 0.0394 in
