4.4 Mains chokes
92 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
4.4 Mains chokes
DX-LN1…

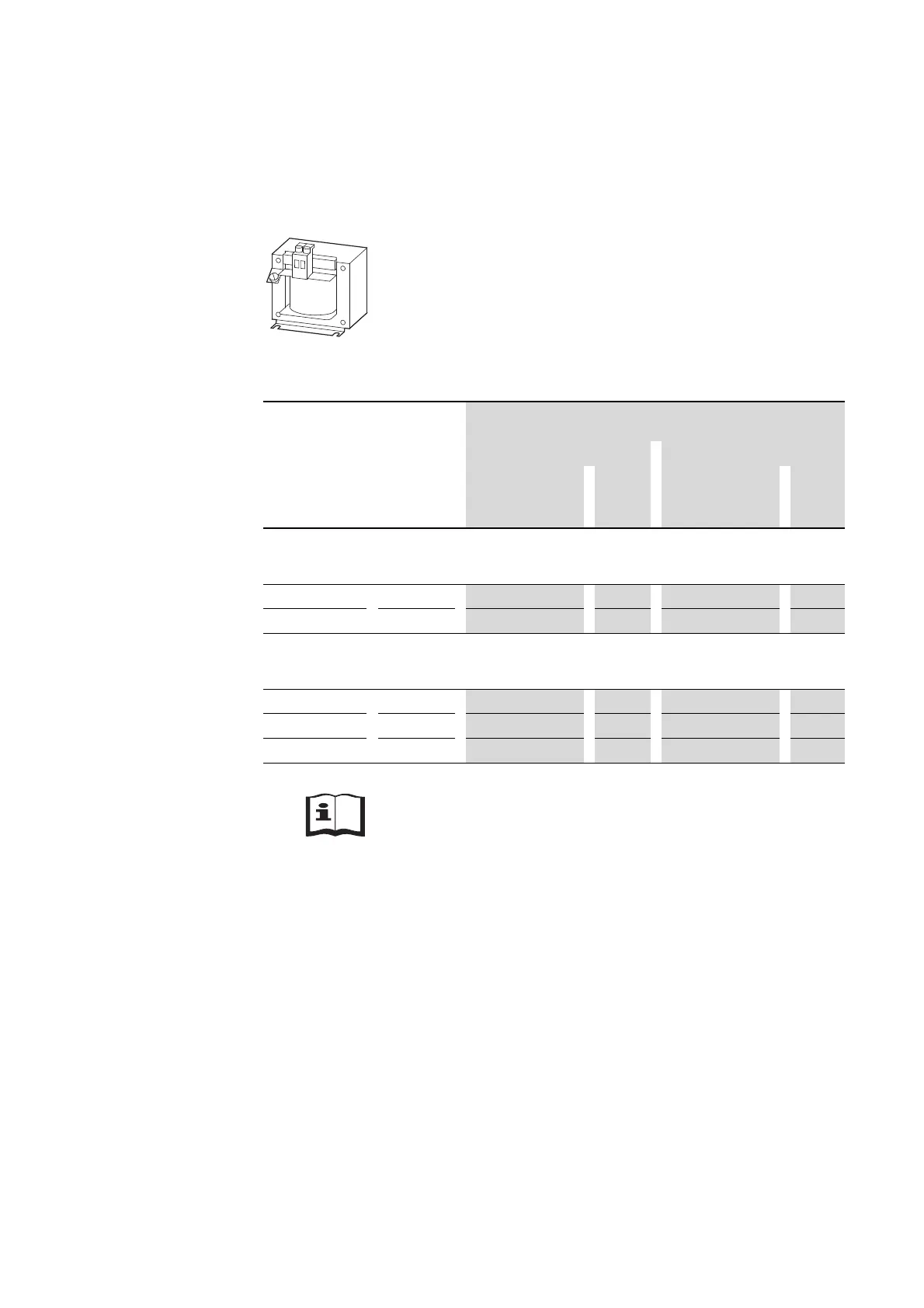

Figure 61: DEX-LN1… mains chokes (single-phase)
Table 19: Assigned mains chokes (single-phase)
Device Type
Input
current
Mains choke, single-phase
(U
LN
max. 260 V +10 %, 50/60 Hz ±10 %)
Type (max. 50
o
C) Type (max. 40
o
C)
I
LN
I
e
I
e
A A A
Nominal mains voltage: 115 V
Mains voltage: (50/60 Hz) U
LN
110 (-10 %) - 115 (+10 %) V
U
e
115 V AC, single-phase / U
2
115 V AC, single-phase
DC1-S17D0… 8.5 DX-LN1-009 17.1 DX-LN1-009 13
DC1-S1011… 12.5 DX-LN1-018 22.8 DX-LN1-013 24
Nominal mains voltage: 230 V
Mains voltage: (50/60 Hz) U
LN
200 (-10 %) - 240 (+10 %) V
U
e
230 V AC, single-phase / U
2
230 V AC, single-phase
DC1-S24D3… 6 DX-LN1-009 8.1 DX-LN1-006 8.6
DC1-S27D0… 9.3 DX-LN1-013 17.1 DX-LN1-013 13
DC1-S2011… 14 DX-LN1-018 22.8 DX-LN1-018 24
For more information and technical data on DX-LN…
mains chokes, please refer to instruction leaflet
IL00906003Z.
￫
