4 Accessories
4.2 Fuses
90 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
4.2 Fuses
The Eaton miniature circuit-breakers and fuses listed below are examples
and can be used without additional measures. If you use other miniature
circuit-breakers and/or fuses, make sure to take their protection
characteristic and operational voltage into account. When using miniature
circuit-breakers, it may be necessary to also use fuses depending on the
circuit-breaker’s model, design, and settings. There may also be limitations
concerning the short-circuit capacity and the supply network’s characteristic,
and these must also be taken into account when selecting miniature circuit-
breakers and/or fuses.

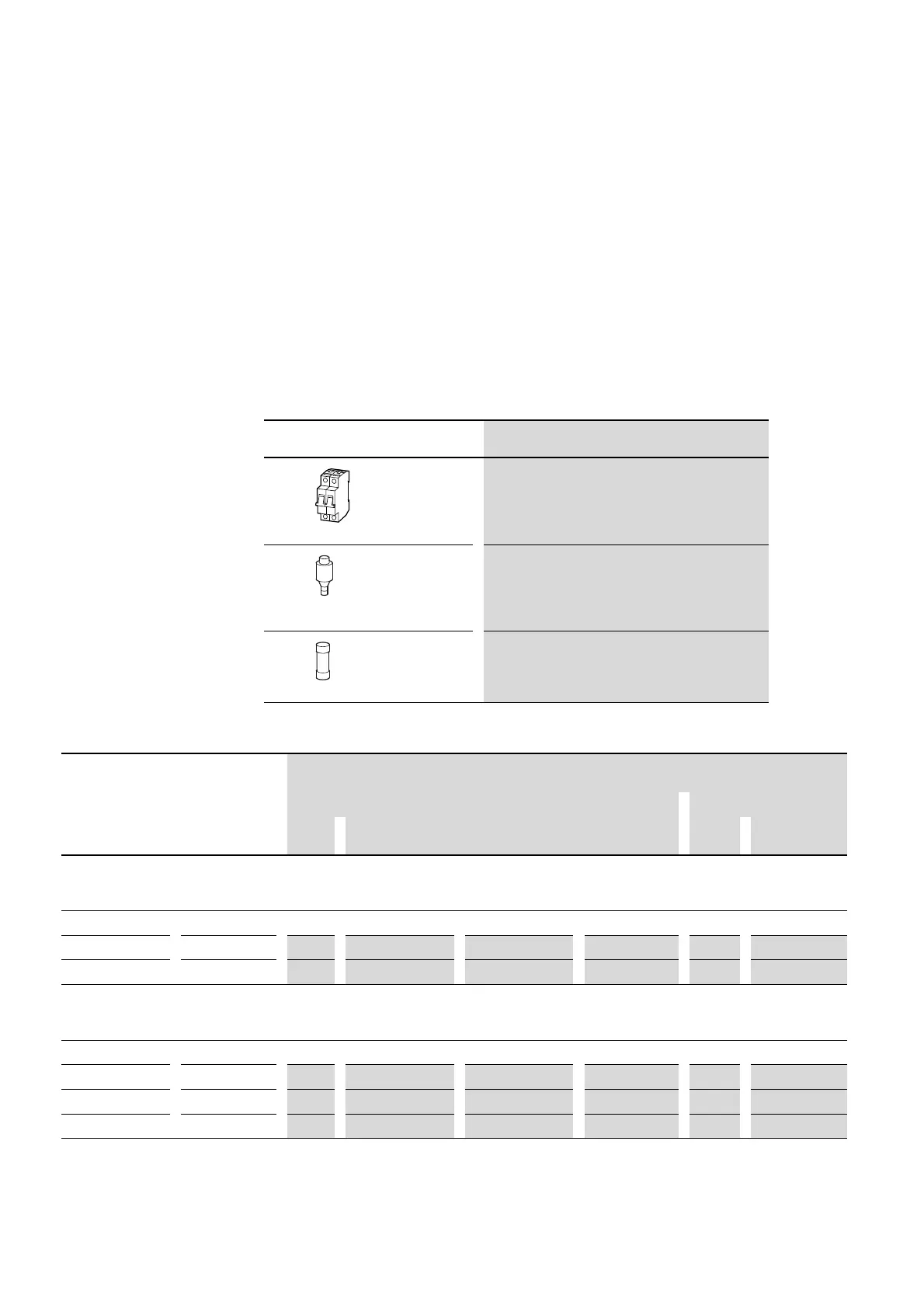

Table 16: Protective devices
Table 17: Specified fuses
Symbol
Description
① Miniature circuit breakers
FAZ-B…/1N: 1 pole + N
FAZ-B…/2: 2 pole
Rated operating voltage: 230/115 V AC
Switching capacity: 15 kA
②
Fuse
Rated operating voltage: up to 500 V AC
Switching capacity: 50 kA
Size: DII, E27 / DIII, E33
Fuse base: S27… / S33…
③
Fuse Class J
Rated operating voltage: up to 600 V AC
Switching capacity: 300 kA
Fuse base: up to 30 A: J60030…
Device Type Input current Fuse or miniature circuit-breaker
I
LN
IEC (Type B or gG) UL (Class CC or J)
1)
A A Eaton type A Eaton type
Nominal mains voltage: 115 V
Mains voltage: (50/60 Hz) U
LN
110 (-10 %) - 115 (+10 %) V
U
e
115 V AC, single-phase / U
2
115 V AC, single-phase
① ①, 2 phase ② ③
DC1-S17D0… 8.5 16 FAZ-B16/1N FAZ-B16/2 16D27 17.5 LPJ-17-1-2SP
DC1-S1011… 12.5 25 FAZ-B25/1N FAZ-B25/2 25D27 25 LPJ-25SP
Nominal mains voltage: 230 V
Mains voltage: (50/60 Hz) U
LN
200 (-10 %) - 240 (+10 %) V
U
e
230 V AC, single-phase / U
2
230 V AC, single-phase
① ①, 2 phase ② ③
DC1-S24D3… 6 10 FAZ-B10/1N FAZ-B10/2 10D27 10 LPJ-10SP
DC1-S7D0… 9.3 16 FAZ-B16/1N FAZ-B16/2 16D27 17.5 LPJ-17-1-2SP
DC1-S2011… 14 25 FAZ-B25/1N FAZ-B25/2 25D27 25 LPJ-25SP
1) Maximum supply short-circuit current: 100 kA rms (AC)
