1.4 Rated operational data
12 DC1-S…20…, DC1-S…OE1 Variable Frequency Drives 05/21 MN040058EN www.eaton.com
1.4 Rated operational data
1.4.1 Rated operational data on the nameplate
The device-specific rated operational data of the DC1-S… variable frequency
drive is listed on the nameplate of the device.

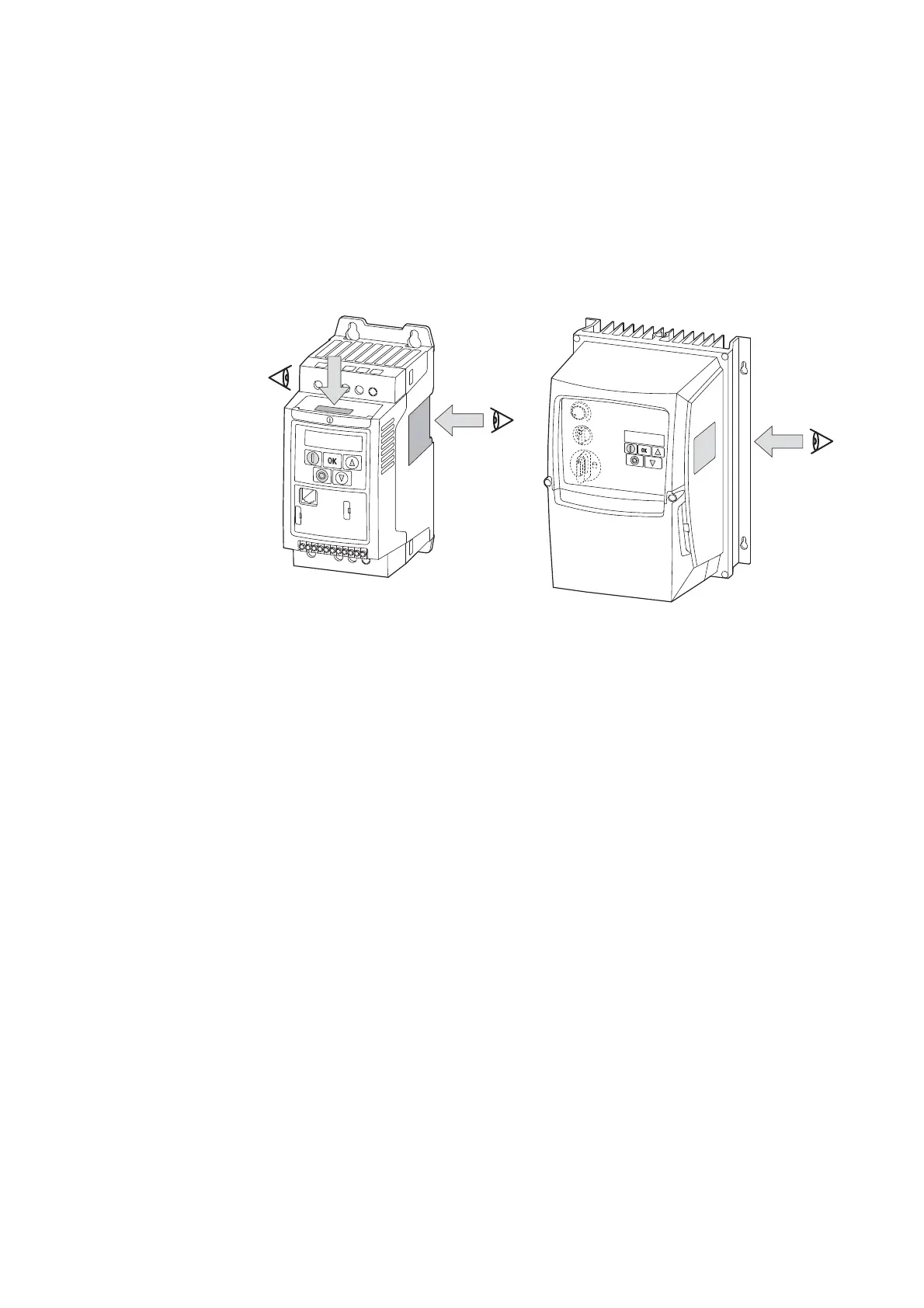

Figure 4: Nameplate location
The nameplate on top (nameplate ②) is a simplified version that can be
used to clearly identify the device if the main nameplate (nameplate
①)
is blocked by other devices.

L1/L
L2/N
L3

U
V
W
1
2
3
4
5
6
7
8
9
10
11
②
①②
①②
