Define:
Name of connection e.g. Locally
Choose serial port e.g. COM 4
Click on [Add] button to confirm settings. Connections shall be saved (and inserted in
table). From this time on program shall enable wires connection with device and
reading, and saving of parameters in Active Track memory will be possible.
9.2.2.5.2 Remote connection
As provided above the device and software makes for complete configuration with
GPRS link or CSD channel. This programming mode requires definition of linking
parameters.
9.2.2.5.2.1 GPRS linking
Activate file in Main menu and select Connection function (or after clicking on
icon on fast access bar) and click on GPRS tab to carry out configuration of this mode.

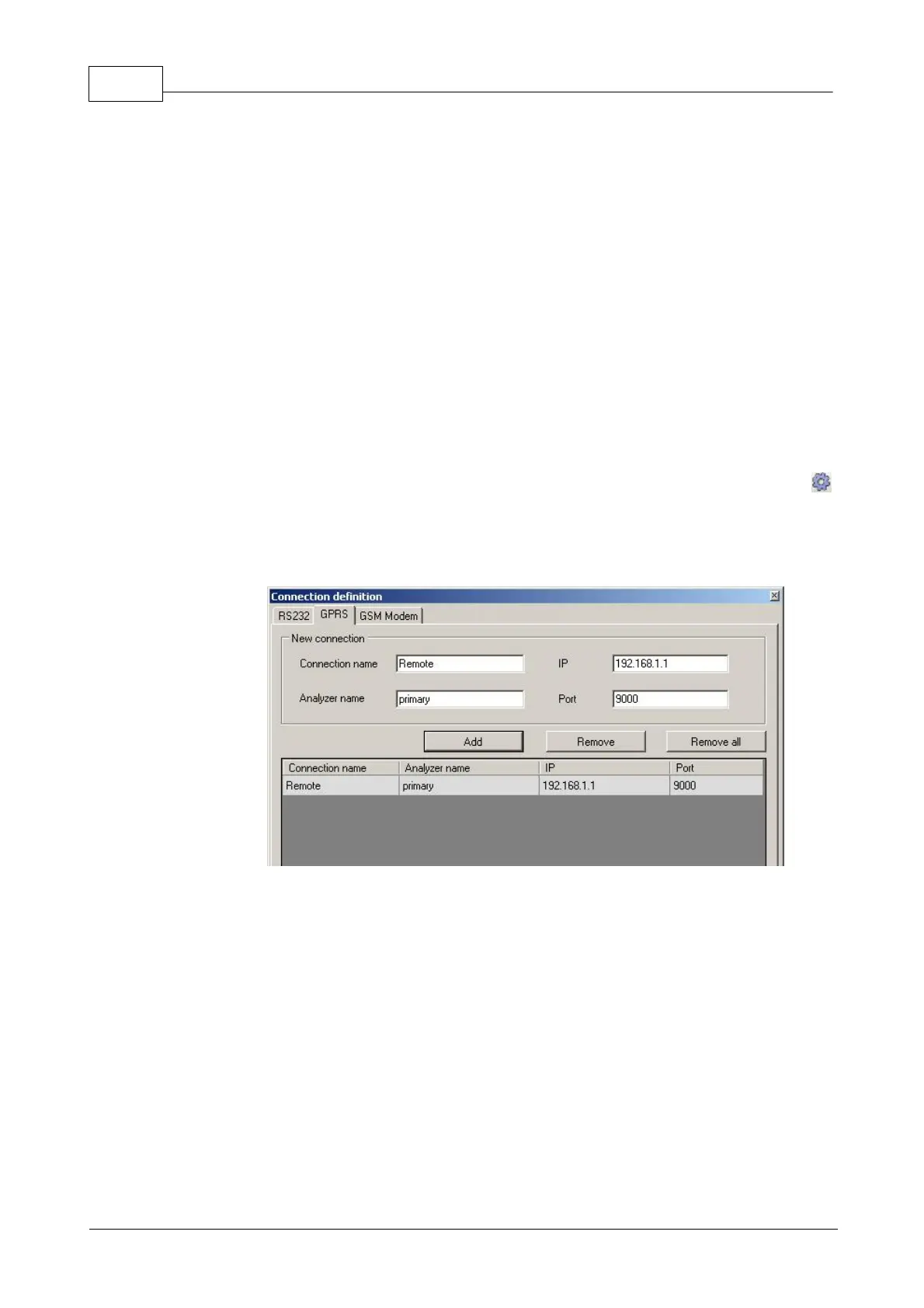

On screen the following window shall appear:
Define:

Name of connection e.g.: Remote

Select name of analyzer e.g.: Primary

Enter analyzer address e.g.: 87.128.125.8

Enter port on which analyzer operates e.g. 7000
Click on [Add] button to confirm settings. Connections shall be saved (and inserted in
table). From this time on program shall enable remote connection to device and
reading and saving of parameters in Active Track memory shall be possible.
