IGNITION SYSTEM
CS-600

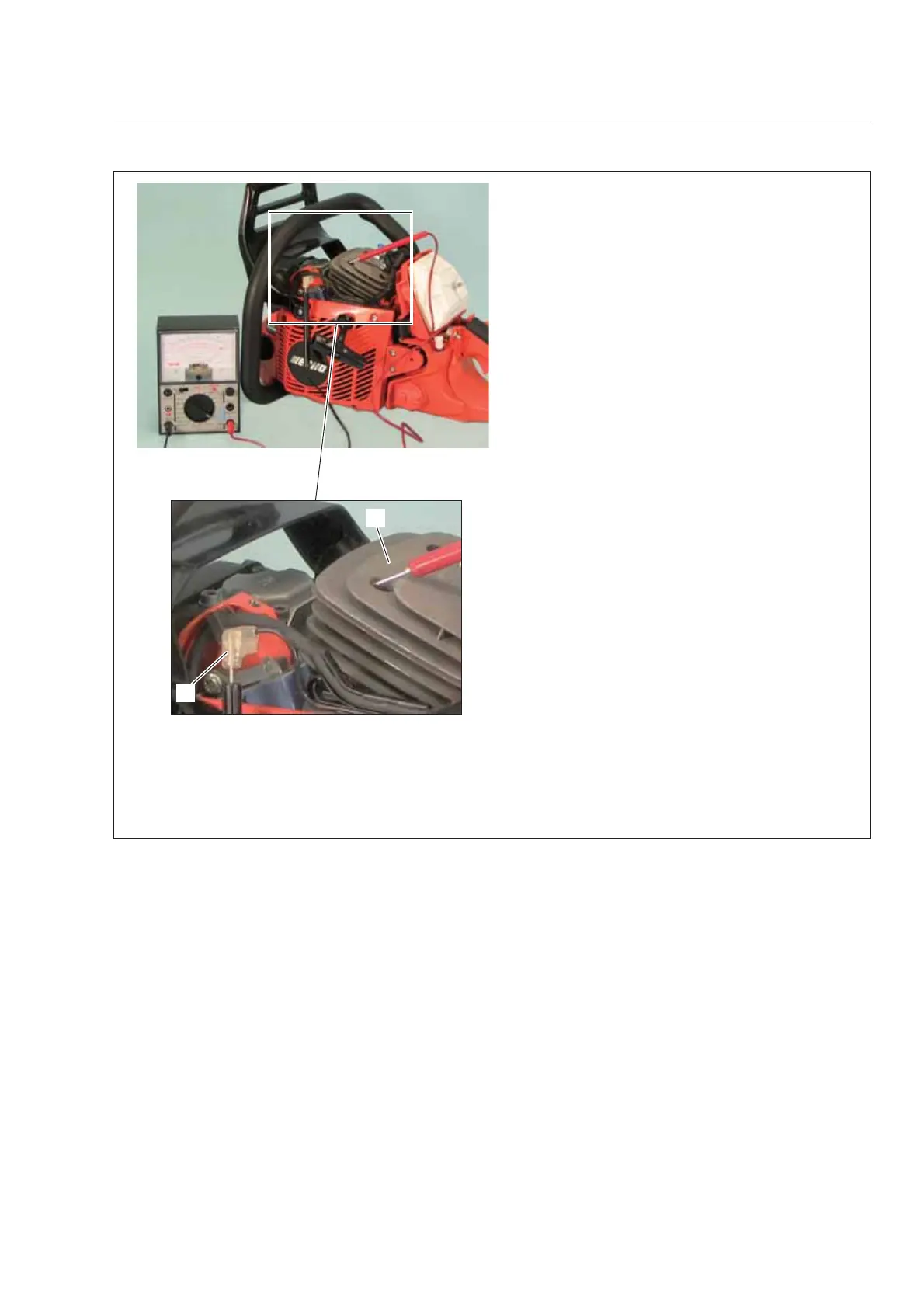

17
3-4 Inspecting ignition switch
1. Remove cleaner lid and cylinder cover.
2. Remove switch lead (A) from ignition coil.
3. Connect one probe of Ohm-meter or multi-meter
to switch lead. Connect the other probe to cylinder
fi n (B).
4. When ignition switch is in “I” position, tester
should indicate infi nite resistance.
5. When ignition switch is in “O (STOP)” position,
tester should show that the circuit is in conducting
state (closed circuit).
6. If ignition switch is defective, replace with a new
one.
B
A
