Echo CS-600 - Replacing Clutch Parts; Installing Clutch Assembly

CLUTCH SYSTEM
CS-600
41

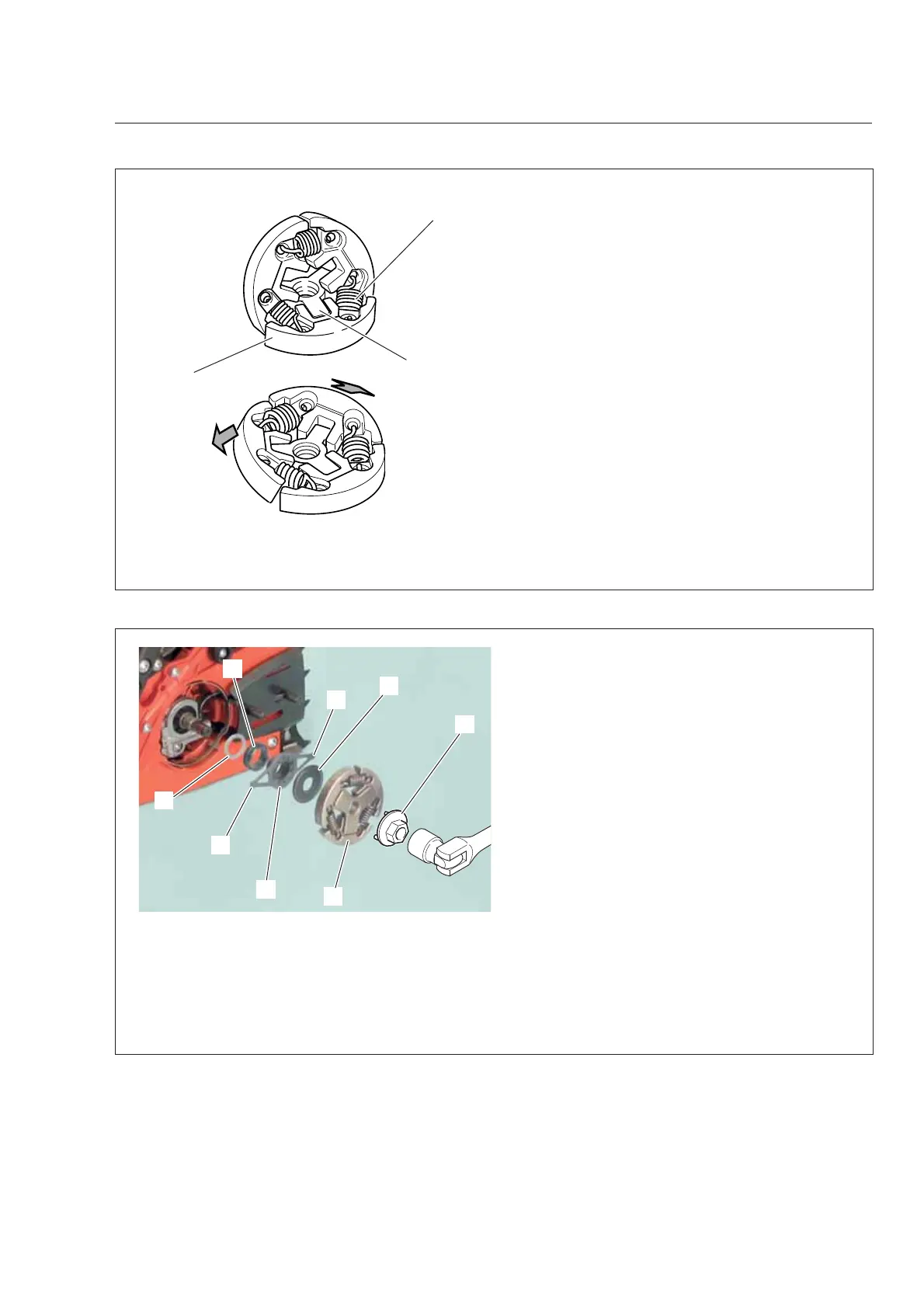

5-3 Installing clutch assembly
1. Install circular washer (A), worm gear (B), collar
(C) and clutch plate (D) in the order shown, mak-
ing sure worm gear and collar are engaging.
2. Install clutch assembly (E; Left-hand thread) to
crankshaft turning anticlockwise by hand until it
can not be turned further.
NOTE:
If starter assembly is installed, untie tem-
porary knot holding starter grip (tied in the first
NOTE of “5-1 Inspecting clutch parts”). While hold-
ing starter grip, turn clutch assembly anticlockwise
until it cannot rotate further.
3. Tighten clutch assembly with Clutch tool
897505-16133 (L).
5-2 Replacing clutch parts
1. Install clutch spring (A) to clutch shoes (B).
2. Set one arm of clutch hub (C) to one clutch
shoe.
3. Install other two clutch shoes on two arms as
shown.
A
C
B
A
B
c
D
E
L
C
c
