Echo CS-600 - Inspecting Auto-Oiler Assembly and Oil Line

SAW CHAIN LUBRICATION SYSTEM
CS-600
48

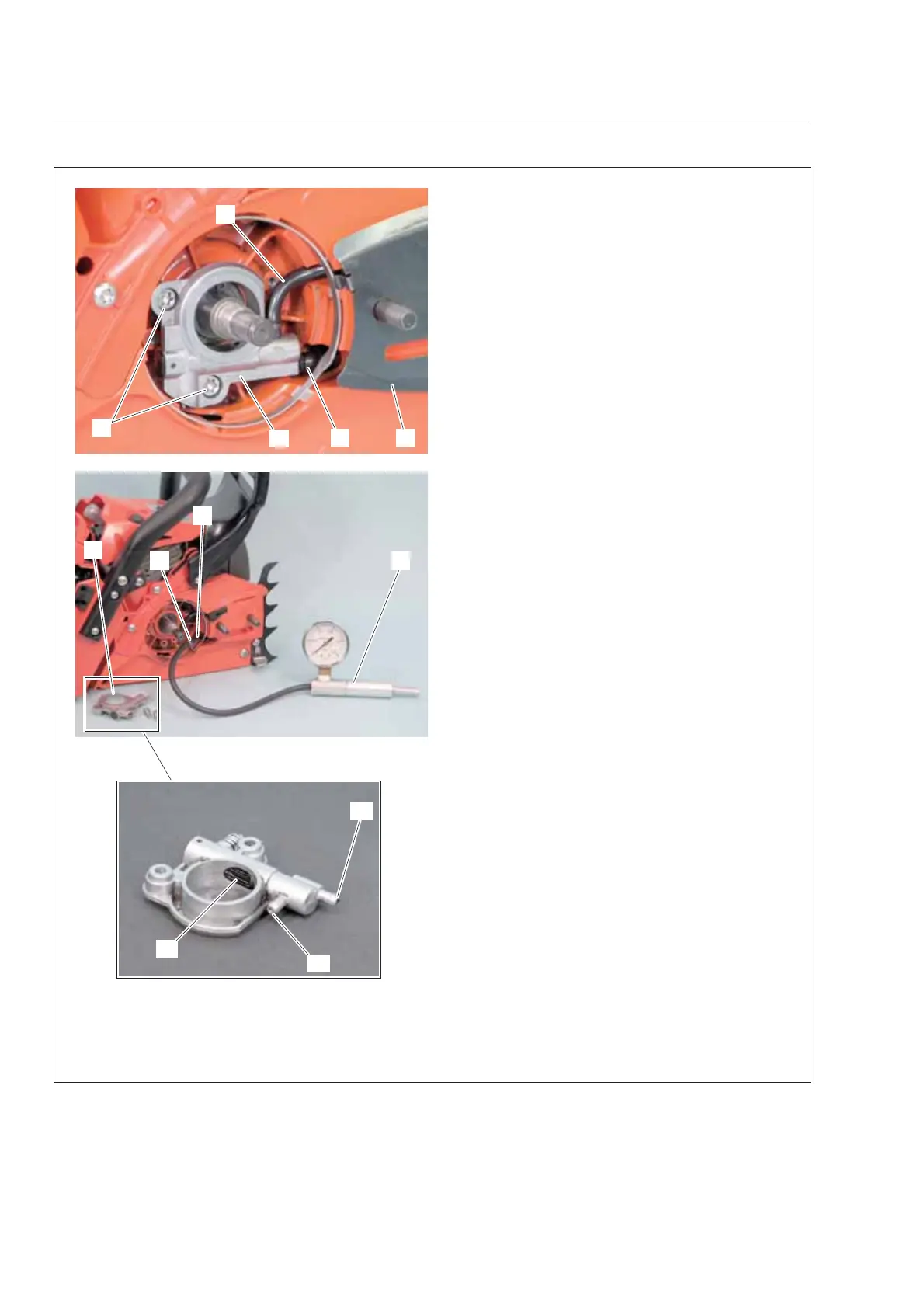

7-2 Inspecting auto-oiler assembly and oil line
1. Referring to “5-1 Inspecting clutch parts”, re-
move clutch parts.
2. Remove inner guide plate (A).
3. Remove two bolts (B).
4. Disconnect oil outlet line (C) and oil line (D) from
auto-oiler assembly (E), and remove auto-oiler as-
sembly.
5. Inspect auto-oiler assembly (E) for discoloration
or deformation. Inspect gear (e1) for wear and
damage. Inspect oil inlet (e2) and outlet (e3) for
clog. Replace as required.
6. Connect Pressure tester 897803-30133 (F) to oil
line (D) with pipe joint V186-000020 (G).
7. Tighten oil cap and apply pressure approx. 9.8
kPa (0.1kgf/cm
2
) (1.4psi).
8. Pressure should not drop. If the pressure drops,
leakage may occur at oil cap, oil cap O-ring, mat-
ing surface of oil tank, oil line, grommet, or oil tank
vent. Inspect them and replace defective part(s)
with new parts as required.
D
B
F
E
D
E
G
e2
e3
e1
A
C
