IGNITION SYSTEM
CS-600
18

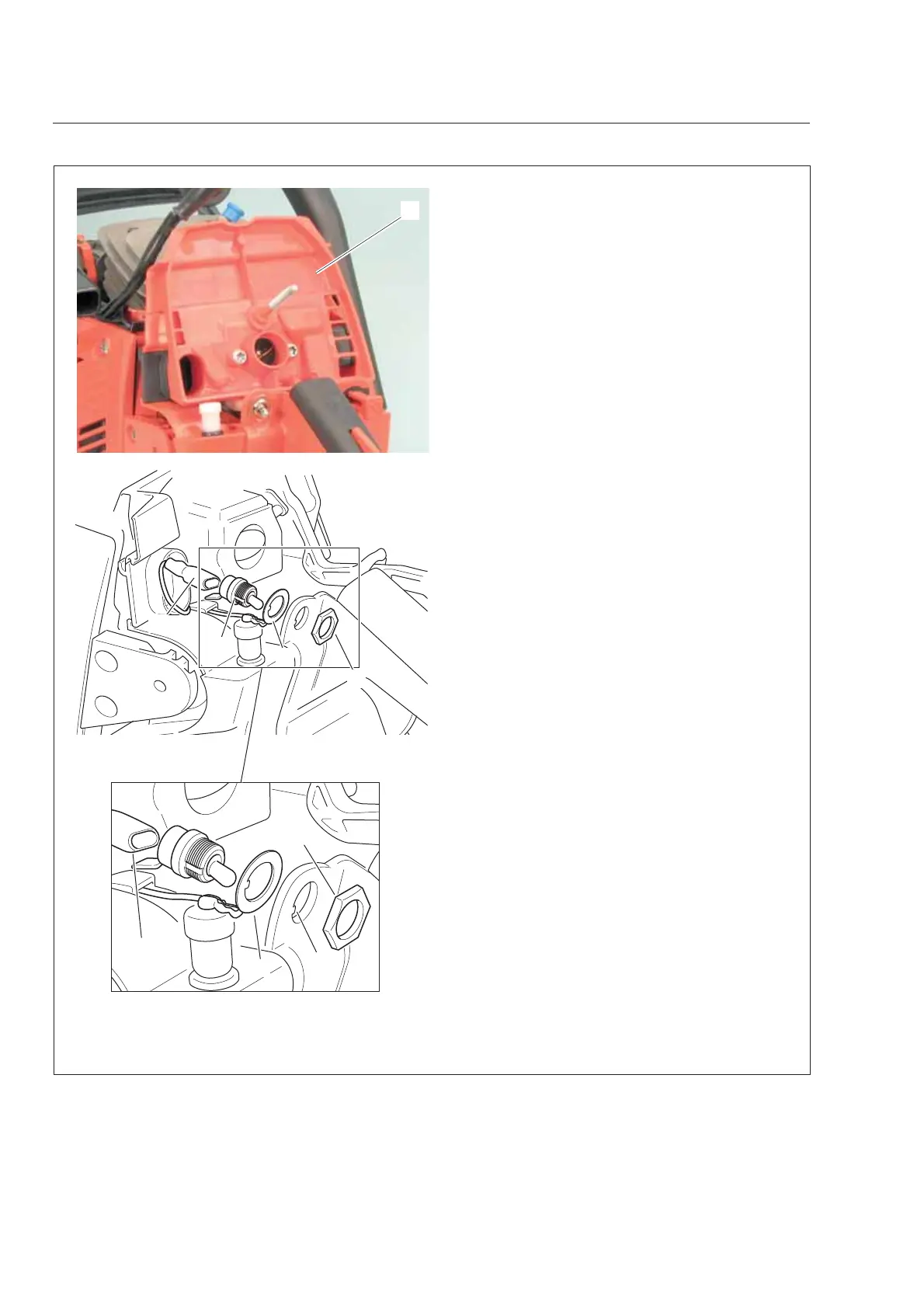

3-5 Replacing ignition switch
1. Remove cleaner lid and cylinder cover.
2. Remove two bolts and remove cleaner case (A).
3. Loosen nut (B), and remove ignition switch (C)
and ground lead (D) from the unit. Remove switch
lead (E) from ignition switch.
4. Assemble ground lead (D) and new ignition
switch on the unit, aligning notch of ignition switch
with tab (F) of the unit. Fasten nut (B) on ignition
switch.
5. Assemble switch lead (E) to ignition switch.
C
E
D
B
F
D
B
E
A
