CHAIN BRAKE SYSTEM
CS-600
43

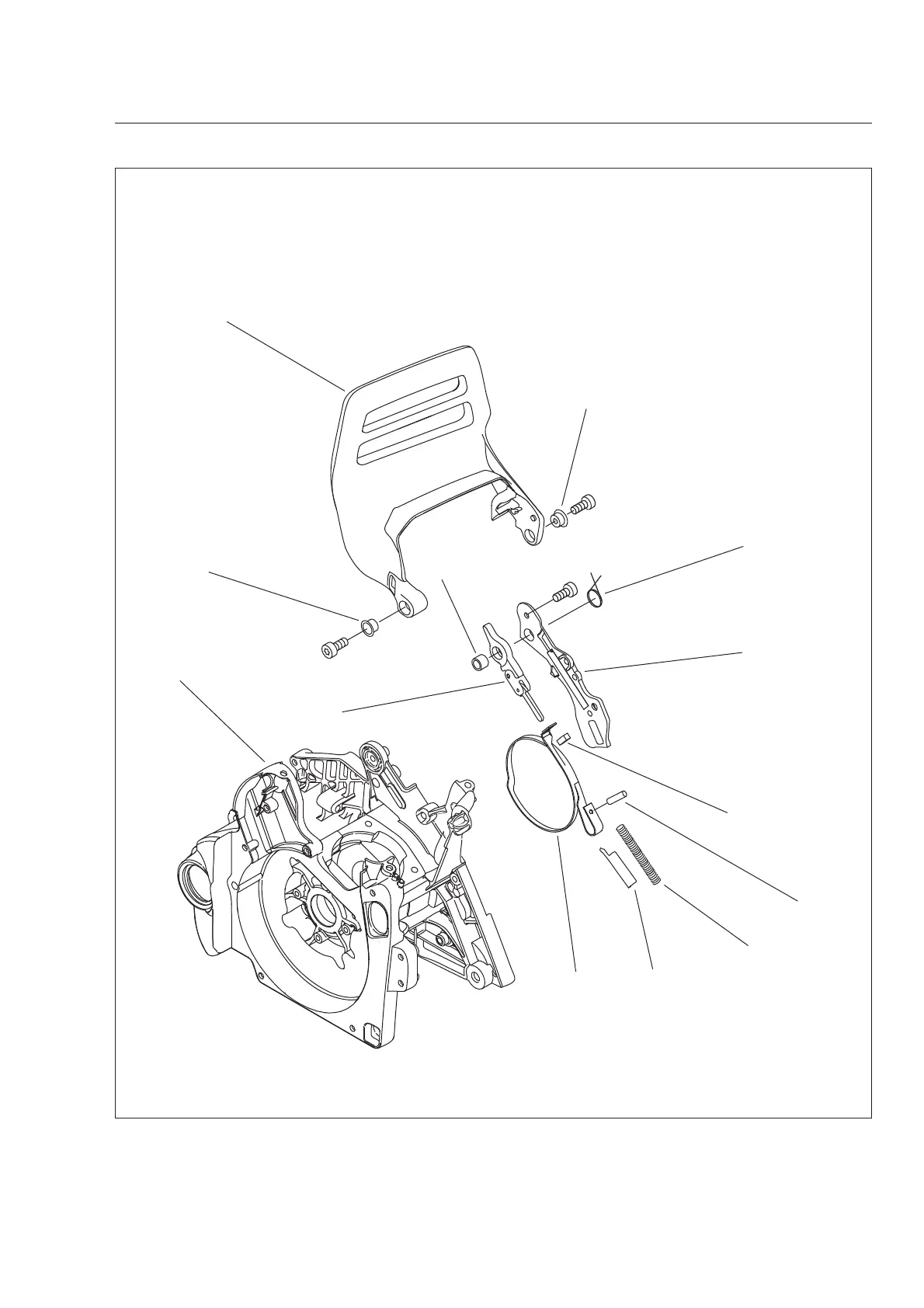

6 CHAIN BRAKE SYSTEM
( A ) Brake lever
( B ) Collar
( C ) Torsion spring
( D ) Brake cover
( E ) Brake connector
( F ) Spacer
( G ) Brake band
( H ) Spacer
( J ) Roller
( K ) Compression spring
( L ) Side plate
( M ) Crankcase
(G)
(E)
(F)
(D)
(C)
(B)
(A)
(H)
(K)
(J)
(M)
(B)
(L)
