SAW CHAIN LUBRICATION SYSTEM
CS-600
53

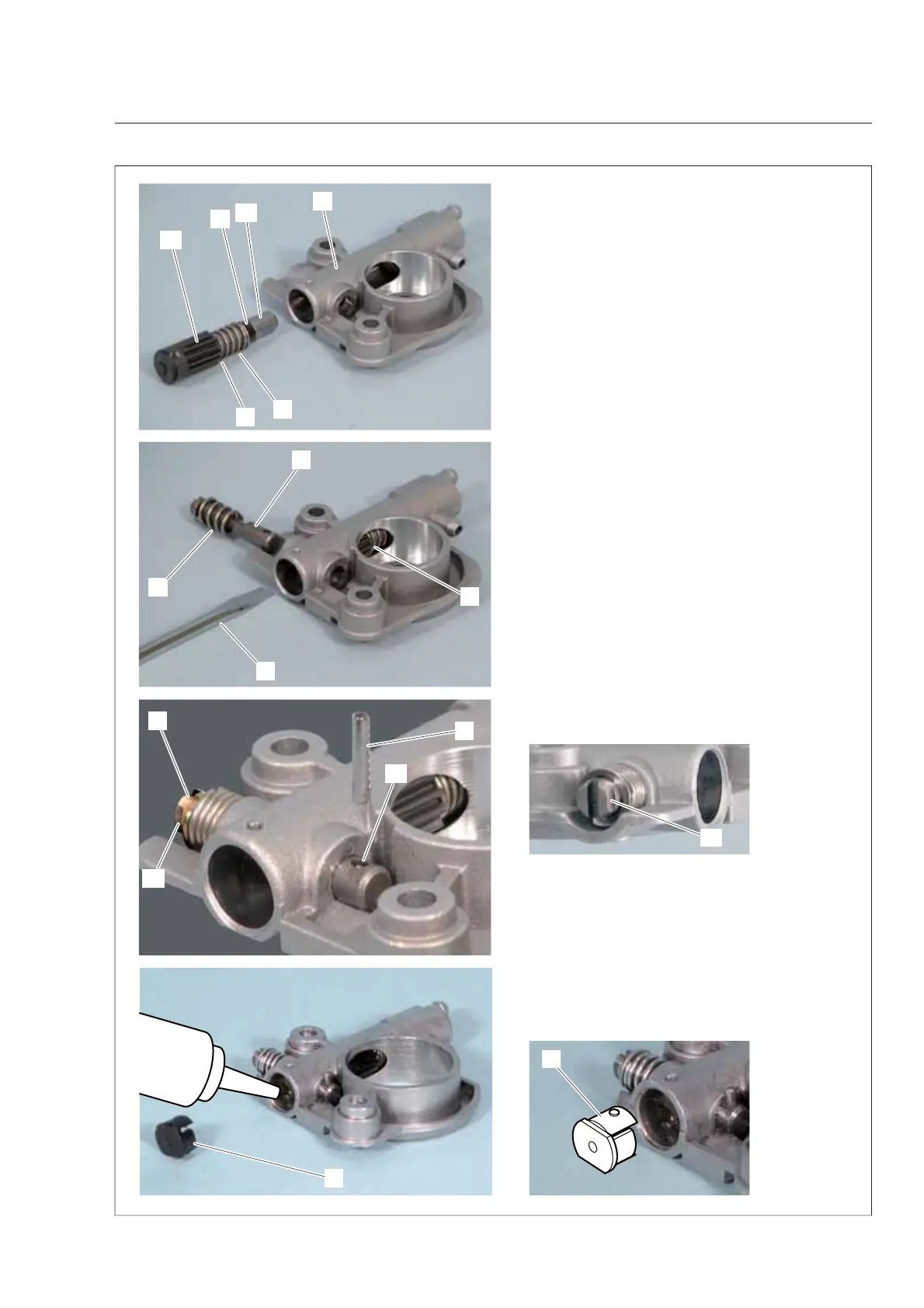

7-7 Assembling auto-oiler parts
1. Clean inside of cylinder (C).
2. Assemble spring (A) to plunger (B) as shown.
3. Coat plunger gear (b1) and spring (A) with
grease and insert into cylinder (C) of auto-oiler
body.
NOTE:
Do not apply grease on V-ring (D) surface
and plunger shaft end (b2), for smooth chain oil
fl ow.
4. Push in plunger with small screwdriver (E), and
hold plunger in place with fi nger through the center
hole (F) of auto-oiler body. Remove screwdriver (E).
5. Install adjuster needle (G) with spring (H) into
oiler body.
6. Press adjuster needle (G) to the bottom, orient-
ing the fl at surface (g1) as shown.
7. Tap in spring pin (J) into hole (g2) of adjuster
needle, until spring pin bottoms.
8. Apply grease in plunger cylinder. Push in plug (K)
into hole as shown.
E
F
G
H
J
A
B
b1
C
D
b2
G
g1
g2
g1
K
K
