SAW CHAIN LUBRICATION SYSTEM
CS-600
46

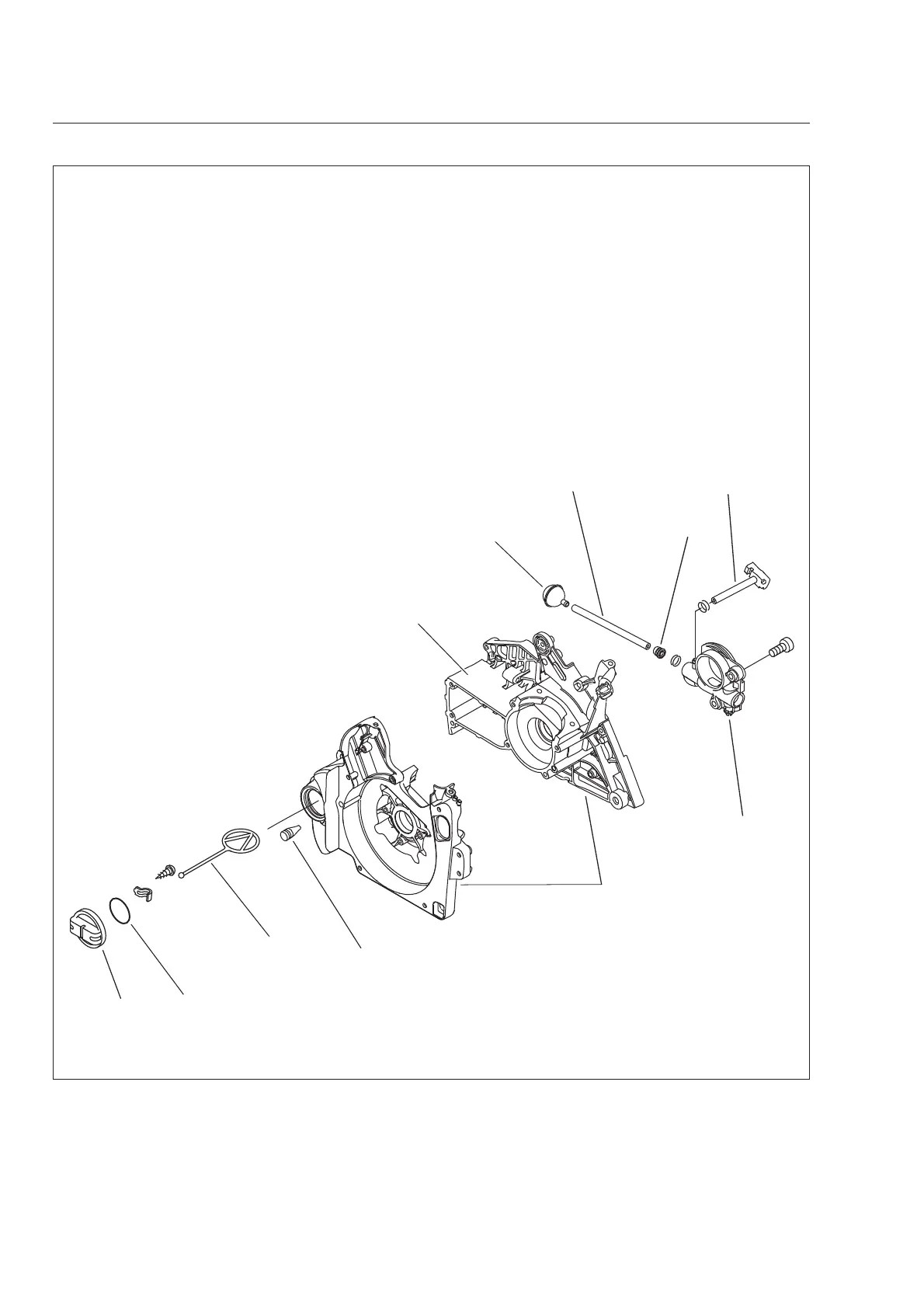

7 SAW CHAIN LUBRICATION SYSTEM
( A ) Oil cap
( B ) O-ring
( C ) Connector
( D ) Oil tank vent
( E ) Crankcase
( e ) Oil tank
( F ) Oil strainer
( G ) Oil line
( H ) Grommet
( J ) Oil outlet line
( K ) Auto-oiler assembly
(e)
(A)
(B)
(F)
(C)
(D)
(E)
(G)
(H)
(K)
(J)
