Echo CS-600 Service Manual

ENGINE
CS-600
54

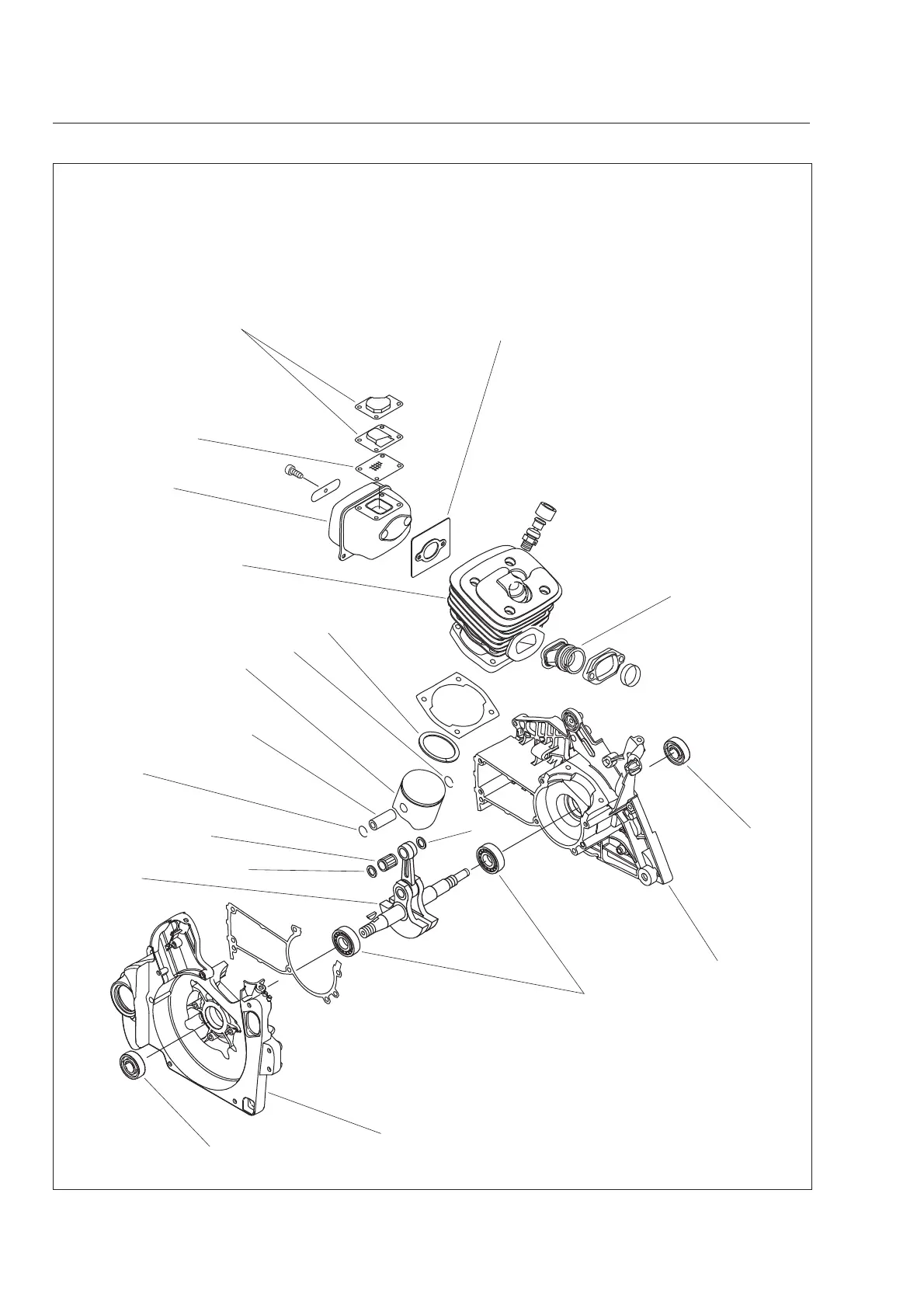

8 ENGINE
( A ) Oil seal
( B ) Crankcase
( C ) Ball bearing
( D ) Crankshaft assembly
( E ) Washer
( F ) Needle bearing
( G ) Snap ring
( H ) Piston pin
( J ) Piston
( K ) Piston ring
( L ) Intake bellows
( M ) Cylinder
( N ) Muffl er
( O ) Muffl er gasket
( P ) Arrestor screen
( Q ) Exhaust guide
(A)
(B)
(F)
(C)
(D)
(E)
(G)
(H)
(K)
(J)
(A)
(B)
(L)
(M)
(N)
(O)
(P)
(E)
(G)
(Q)
