FUEL SYSTEM
CS-600
34

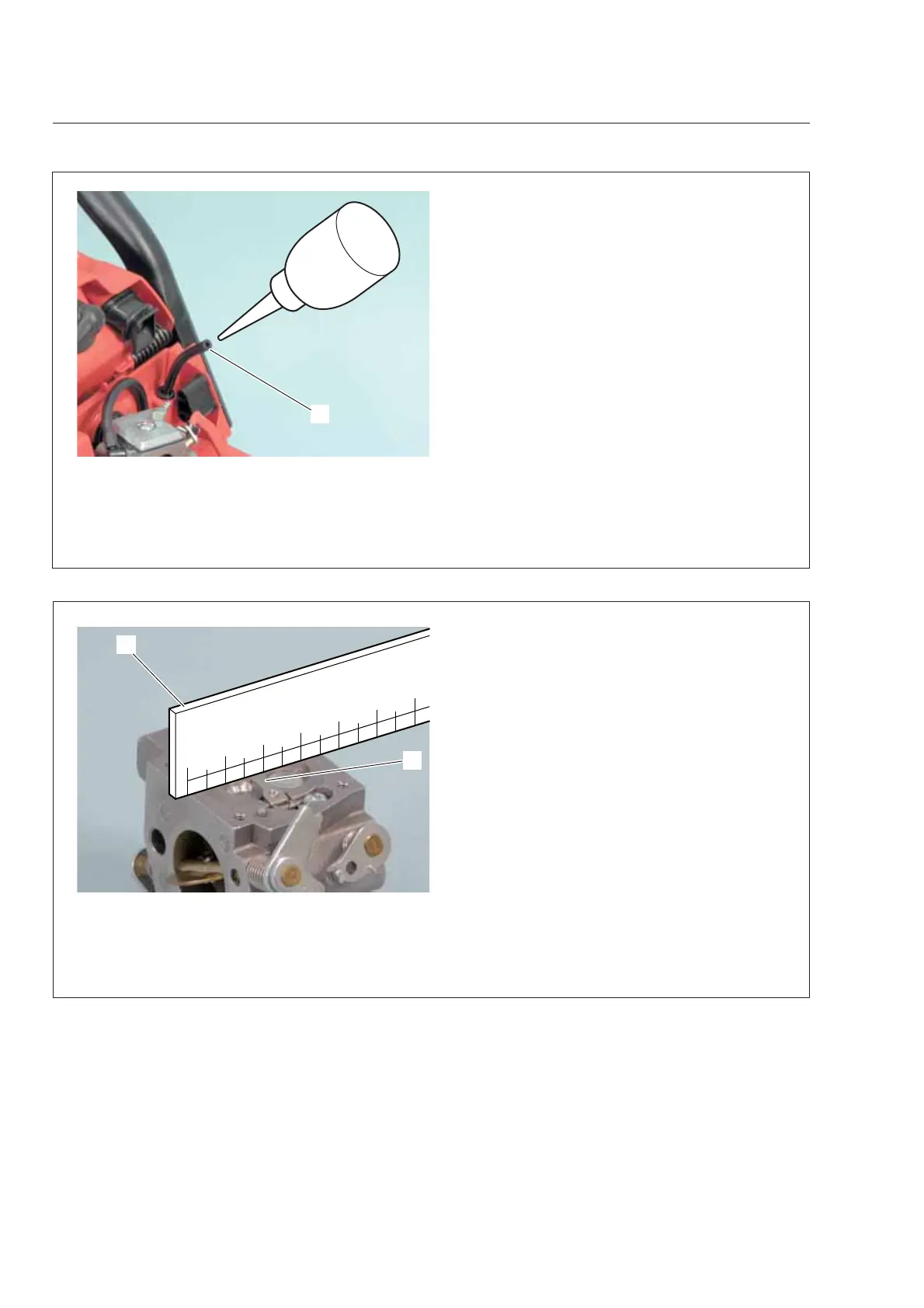

4-10 Inspecting metering lever height
1. Remove carburettor.
2. Remove metering diaphragm cover, metering
diaphragm and gasket.
3. Inspect metering lever (A) height using ruler
(B). Metering lever height should be fl ush with dia-
phragm seat.
4. If necessary, gently bend metering lever up or
down to set the metering lever to proper position.
NOTE:
When metering lever is:
Too high
→
Fuel fl ooding occurs
Too low
→
Fuel starvation / overheating occurs
4-9 Inspecting crankcase pulse passage
1. Drop a little oil in the end of pulse line (A) as
shown.
2. Remove spark plug and pull starter grip several
times. Oil should spit back from the hole.
3. If not, inspect whether pulse passage is clogged.
Repair or replace as required.
