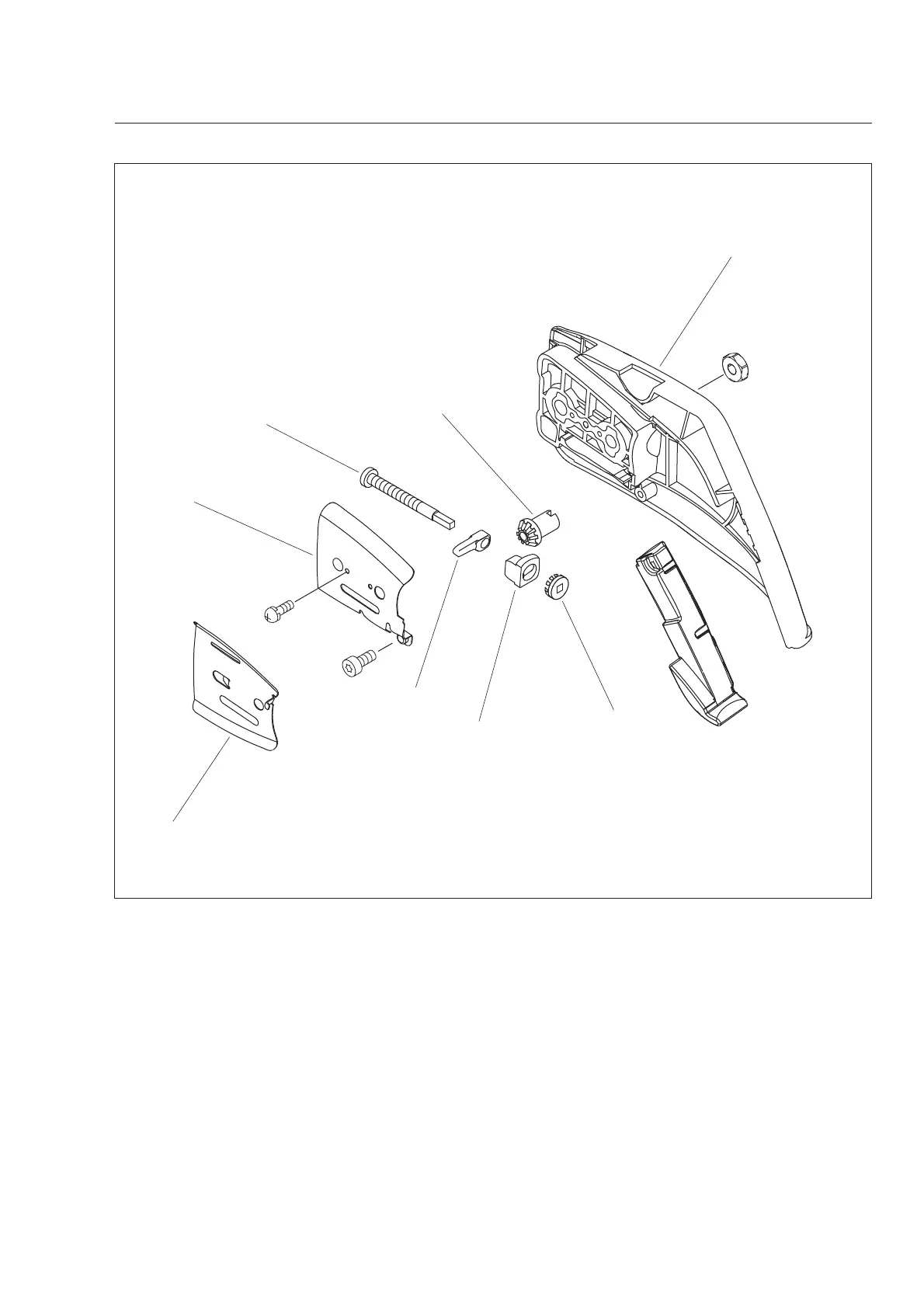

GUIDE BAR MOUNTING SYSTEM
CS-600
69
10 GUIDE BAR MOUNTING SYSTEM
( A ) Sprocket guard
( B ) Inner guide plate
( C ) Outer guide plate
( D ) Tensioner screw
( E ) Chain tensioner
( F ) Collar
( G ) Bevel gear
( H ) Bevel gear
(B)
(E)
(F)
(H)
(C)
(D)
(G)
(A)
