SERVICE INFORMATION
CS-600
7
Key Part Number Description Reference
1
G310-000050 Tachometer PET-304 Measuring engine speed to adjust carburettor
2
X602-000340 Torx wrench (T27) Removing and installing bolt
3
897537-30130 Piston stopper Locking crankshaft rotation
4
897724-01361 Spring pin tool (4 mm) Removing and installing spring pin (4 mm dia)
5
897724-02831 Spring pin tool (5 mm) Removing and installing spring pin (5 mm dia)
6
897719-02830 Piston holder Making piston steady to remove and install piston / rings
7
897702-30131 Piston pin tool Removing and installing piston pin
8
897501-03938 Puller Removing magneto rotor
9
91004 Module air gap gauge Adjusting pole shoe air gaps
10
897502-19830 Crankcase tool Separating crankcase
11
897701-14732 Bearing tool Removing and installing ball bearings on crankcase
12
91037 Compression gauge Measuring cylinder compression
13
91019 Limiter cap tool Removing and installing limiter cap
14
91139 Pressure / vacuum tester Testing crankcase / cylinder leakages
15
897726-16431 Oil seal tool Installing starter side oil seal
16
897826-16131 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
17
897827-16131 Pressure plate Plugging intake port to test crankcase / cylinder leakages
18
897800-79931 Spark tester Checking ignition system
19
897803-30133 Pressure tester Testing carburettor leakages
20
897714-12330 Oil seal tool Installing crankcase side oil seal
21 91041 Pressure rubber plug Plugging exhaust port to test crankcase / cylinder leakages
22 101115-37531 Plug Testing crankcase / cylinder leakages
23 900720-00009 O-ring Testing crankcase / cylinder leakages
24 897505-16133 Clutch tool Removing and installing clutch assembly
b = 4 mm
b = 5 mm

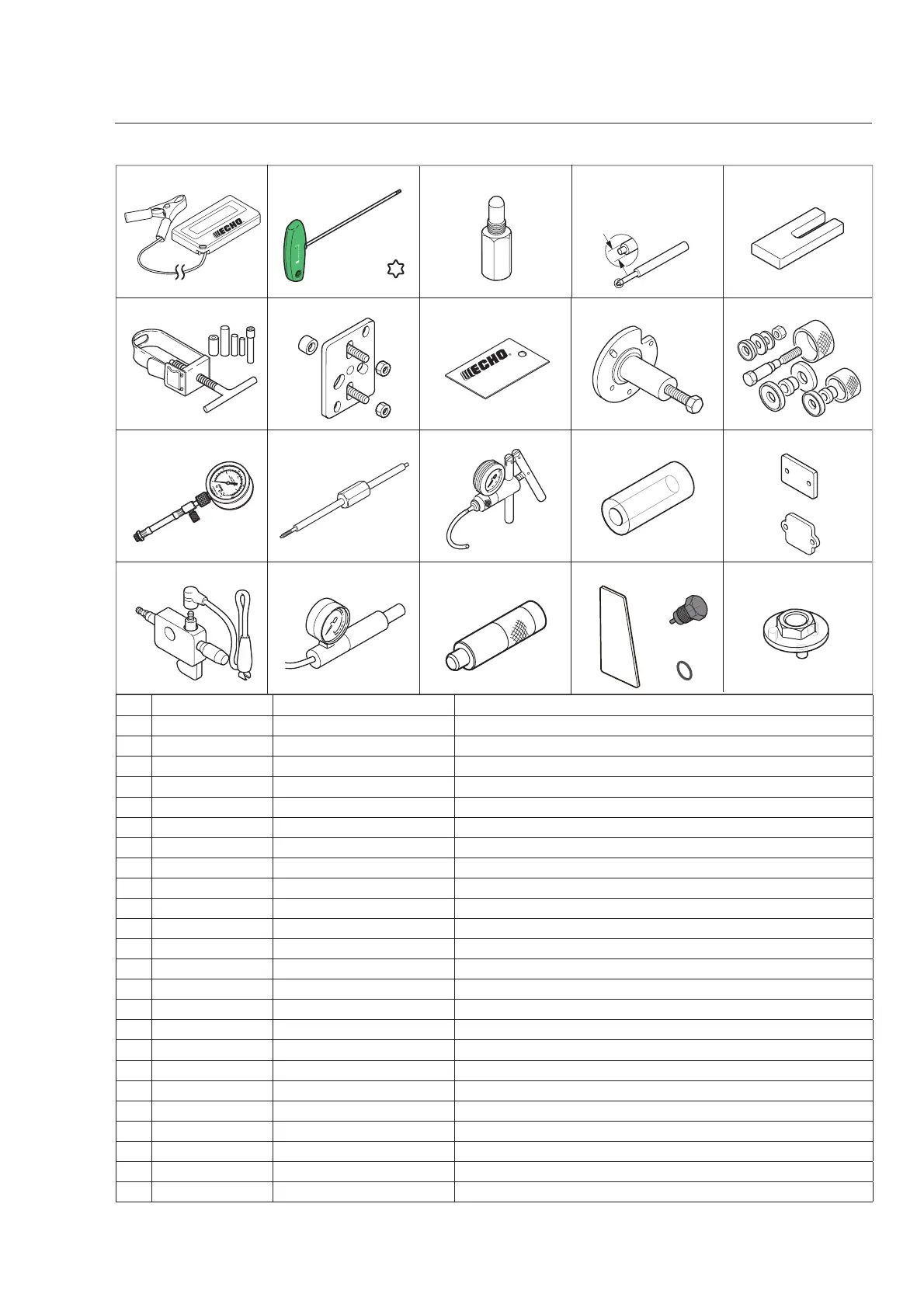

1-6 Special tools
